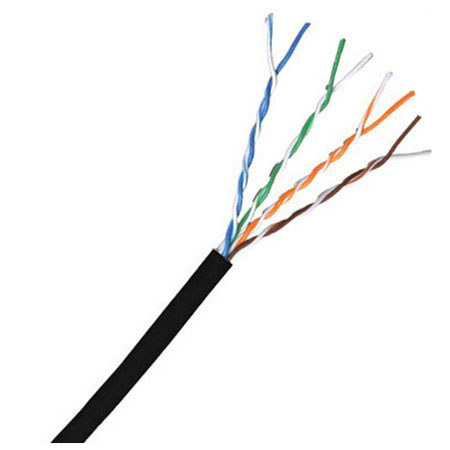

Comprehensive 1000' Cat 6 550Mhz Shielded Bulk Cable, Solid Black

SKU: CVCAT6SHBLK1 MFR: CAT6SHBLK-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable network connections with this 1000ft Cat6 Ethernet cable.
  • Shielded Cat6 cable reduces interference, ensuring stable, high-speed data transfers.
  • Perfect for creating custom-length Ethernet cables for home or office networks.
  • This 550Mhz Cat6 cable supports voice, data, and video for versatile applications.
  • Solid black jacket is CMR rated, making this Cat6 Ethernet cable safe for in-wall use.
  • Built to meet Cat6 TIA/EIA standards, ensuring top performance and compatibility.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive CAT6SHBLK-1000 Specifications

  • Conductors

    4 Twisted Pairs 24 AWG Shielded bare copper solid cable

  • Bandwidth

    Supports voice/data/video distribution applications up to 550Mhz

  • Standards

    Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Conductor DC Resistance

    9.8 Ohm at 100m maximum

  • Outer Diameter

    6.6mm

  • UL Rating

    CMR

  • Jacket

    PVC

  • RoHS Compliant

    Yes

  • Temperature rating

    75degC

  • Spark test

    AC-2000V/0.15sec MIN.

  • Dielectric strength

    AC-750V/1sec MIN.

  • Insulation resistance

    PE - DC-500V 1500MW /100M MIN.at 20degC Capacitance

  • Mutual capacitance

    5.6nF/100M, MAX

  • Pair to ground Unbalance

    330pF/100M, MAX

  • D-C Resistance

    9.38 ohm/100M at 20degC MAX

  • D-C Resistance Unbalance

    5%, MAX.

  • Impedance

    100+/-15ohm at 100-350MHZ

  • Weight

    27lbs / 12.15kg

  • UPC Code

    808447068306

About Comprehensive CAT6SHBLK-1000

Under the hood of every robust network lies the backbone of reliable cabling, and the Comprehensive 1000' Cat 6 550Mhz Shielded Solid Black Bulk Cable stands as a testament to this. Engineered with precision, this high-performance cable features four shielded twisted pairs (STP) with a solid 24 AWG construction, ensuring minimal interference and optimal signal integrity for your networking needs.

Designed to support all category 6 applications, this versatile cable is compatible with a wide array of network standards including Ethernet 100BASE-TX, 100BASE-VG, and 155 ATM. It is particularly well-suited for high bandwidth applications, effortlessly accommodating 622 ATM, Wideband, and the demanding Ethernet 1000BASE-T. Moreover, it is ready to tackle emerging applications that anticipate data rates up to a swift 3.2 Gbps.

The cable's construction adheres to the highest industry standards, boasting a UL listing NEC, CM/MP, which underscores its safety and quality. With a nominal outer diameter of 0.26 inches, it balances flexibility and durability. It meets and exceeds all the stringent requirements as set forth in the Telecommunications Industry Association's standards 568 & 570, ensuring it is up to par with professional specifications.

For ease of installation, the cable is foot-marked and packaged in an efficient pull box, simplifying the process of measuring and cutting during setup. Whether you're wiring a data center, upgrading an office network, or setting up high-speed connections for a professional studio, the Comprehensive 1000' Cat 6 550Mhz Shielded Solid Black Bulk Cable is an essential component that promises performance and reliability.

Comprehensive CAT6SHBLK-1000 Features

  • High-Performance Data Communications Cable for Noisy Environments
  • Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Category-6 Shielded Twisted Pair (FTP) Cable
  • 4-Pair - Easily Identified Color-Striped Pairs
  • 24AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
  • UL/cUL or ETL Listed
  • Sequential foot markers

Warranty Information

This product has a limited lifetime warranty.
