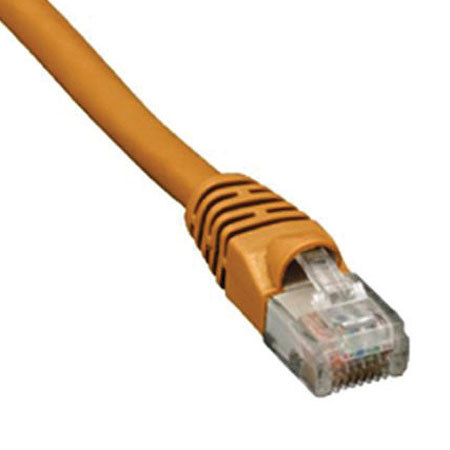

Comprehensive 25' CAT6 Crossover Cable, Orange
See all Comprehensive items

Comprehensive 25' CAT6 Crossover Cable, Orange

SKU: CVCAT6X25ORG
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular

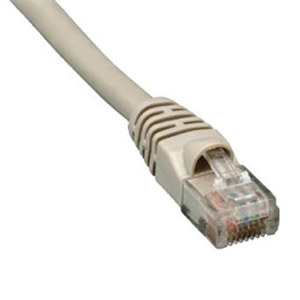

Comprehensive 25' CAT6 Crossover Cable, Gray
$12.99
$10.39
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive 25' CAT6 Crossover Cable, Orange Specifications

  • Cable Length

    25' / 7.62m

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Bandwidth

    Supports voice, data & video distribution applications up to 550 MHz

  • Standards

    Meets all Cat6 TIA / EIA standards, verified to EIA / TIA 568B.2

  • Cable Style

    Shielded CAT6A molded snagless boot

  • Conductors

    4 twisted pairs 24 AWG bare copper stranded cable

  • Conductor DC Resistance

    9.8 Ohm at 100 m (maximum)

  • Material

    Connector: Polycarbonate
    Contact: Copper alloy-plated with 50u gold

  • Jacket

    PVC

  • RoHS Compliant

    Yes

  • Outer Diameter

    6.2mm / 0.24"

  • Weight

    0.25 lbs / 0.11 kg

  • UPC Code

    808447053586

About Comprehensive 25' CAT6 Crossover Cable, Orange

The Comprehensive 25' CAT6 Crossover Cable (Orange) helps you connect your computers over the network and get 550 MHz of bandwidth. By reversing transmit and receive pairs on one end of the cable, you can connect computers directly to each other without a hub. This cable is also ideal for adding a hub without a crossover port.

Comprehensive 25' CAT6 Crossover Cable, Orange Features

  • 50-micron gold-plated RJ-45 male to male connector
  • 24 AWG stranded copper conductor
  • PVC jacket
  • Molded, snag-free boot prevents unwanted cable snags while providing easy insertion and extraction from network ports
  • Crossed-pin configuration allows you to connect 2 computers (peer-to-peer) without the need for a hub or switch
  • Suitable for connecting network switches and hubs without an uplink port to their switches and hubs
  • RoHS compliant

Warranty Information

This product has a limited lifetime warranty.
