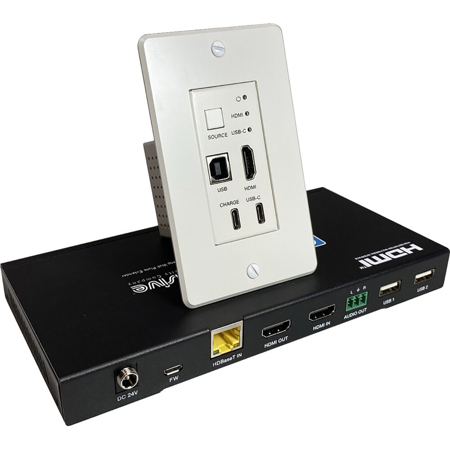

Comprehensive Pro AV/IT Integrator Series HDBaseT 4K HDMI and USB-C Wall Plate Extender Kit

Extend 4K HDMI, Audio and USB 2.0 High Speed Signals over a Single UTP Cable up to 230ft.

Comprehensive's CHE-HDBTWP125MC is a 2x1 Wall Plate Extender with HDMI and USB-C inputs. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and Windows PC's, as well as smartphones and tablets. Supports video resolutions up to 4K@60Hz 4:4:4. The transmitter is remotely powered by the receiver or other HDBaseT-equipped devices via PoE that can be extended up to 230ft over Cat5e/Cat6.

Easy Plug & Present
Just plug-in and present with a USB-C or HDMI source. Modern meetings depend on mobile devices, having easy, instant connections to save time and increase efficiency.

Supports 4K HD Video up to 4K@60Hz (4:4:4) 18G
This versatile USB/HDMI extender can transmit 4K resolutions up to 4K@60Hz, 4:4:4 up to 131ft and 1080P@60Hz up to 230ft, making it perfect for classrooms, meeting rooms, huddle spaces and other AV installations.

A Must Have Device for Every AV Space
Ideal for use in court rooms, classrooms, conference rooms and anywhere audio-visual devices can be extended from a remotely located HDMI source device.

Reliable Auto-Switching
The Comprehensive CHE-HDBTWP125MC features automatic or manual switching between connected sources (HDMI and USB-C), with the USB-C supporting alt-mode functionality allowing a portable device such as a tablet or phone to be connected and send its content at up to 4K@60Hz. HDCP 2.2 is also supported for the transmission of encrypted content.

USB 2.0 Pass-Through
The CHE-HDBTWP125MC offers not only KVM functionality for extension of a keyboard/mouse or touchscreen, but also full data transfer capabilities. The transmitter has a USB host port allowing USB device data to be routed into the selected laptop (via HDMI). Going further, it can send USB device data natively through the USB-C port allowing a single cable to be used for A/V and USB device connectivity.

Compatible with Most Major Active Panels & Whiteboards
This USB extender supports touch functionality for use with most of the major active panels and whiteboards on today's market.

Charge Your Laptop, Tablet or Phone While You Present
The Comprehensive CHE-HDBTWP125MC allows up to 40W of power via the USB-C input when you plug a power delivery charger into the USB-C charge port. Allowing you to charge your Apple notebooks, Windows PCs, as well as smartphones and tablets, while you are presenting and video conferencing.

Quality You Can Count On
Since 1974, Comprehensive has been manufacturing the highest quality commercial grade solutions for AV and IT professionals. The CHE-HDBTWP125MC extender kit continues that tradition with high end materials, components and quality control to ensure years of worry-free use.

Applications
• Complete system applications: The CHE-HDBTWP125MC provides a compact, yet comprehensive and cost-effective integration solution
• Larger system applications: The CHE-HDBTWP125MC is ideal for extending AV connectivity from a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system
• Auditoriums and lecture halls: The CHE-HDBTWP125MC can be used for presenting 4K video content through the projector, while also optimizing for a 1080p confidence monitor
• Huddle spaces
• Conference rooms
• Boardrooms
• Hotel event spaces
• Houses of worship
