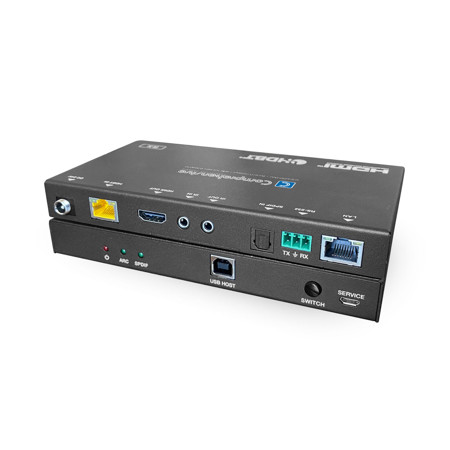

Comprehensive Pro AV/IT Integrator Series HDBaseT 4K60 18G HDMI Extender Kit with USB/Audio/LAN/RS232, 330' Range

SKU: CVCHEHDBT255 MFR: CHE-HDBT255U
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 330ft with this HDBaseT extender kit, perfect for large venues.
  • Enjoy pristine 4K60 18G video with this HDMI extender, ensuring top-notch performance.
  • This HDBaseT HDMI extender supports USB, Audio, LAN, and RS232, offering versatile connectivity.
  • Built with a durable metal housing, this HDMI extender is designed for long-lasting reliability.
  • Integrate audio seamlessly with SPDIF and L/R outputs on this advanced HDMI extender kit.
  • Experience uncompressed video with HDMI 2.0 & HDCP 2.2 compliance on this extender.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive HDMI Extender Specifications

Input/Output Connections

Input/Output Connections

Jump to...
  • Transmitter Inputs

    1x HDMI Type A (19-pin female)

  • Transmitter Outputs

    1x HDBT OUT (RJ45, 8-pin female)
    1x SPDIF OUT (S/PDIF)
    1 L/R OUT (3.5mm Stereo Mini-jack)
    1 LAN (RJ45)

  • Transmitter Control

    1x IR IN (3.5mm Stereo Mini-jack)
    1x IR OUT (3.5mm Stereo Mini-jack)
    1x RS-232 (Phoenix jack)
    1x SERVICE (Mini-USB, Update port)
    1 USB HOST (USB Type B)

Supported Audio/Video Formats

Jump to...
  • Video Bandwidth

    18Gbps

  • Max Video Resolution & Distances

    4K 60Hz 4:4:4 = 296ft/90m
    1080p 60Hz 4:4:4 = 330ft/100m

  • Color Bit Depth

    8/10/12-Bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
    8-Bit (4K60Hz 4:4:4)

  • Color Space Formats

    RGB / YCbCr 4:4:4
    YCbCr 4:2:2
    YCbCr 4:2:0

  • Supported Resolutions

    4K2K 50/60Hz 4:4:4
    4K2K 50/60Hz 4:2:2
    4K2K 50/60Hz 4:2:0
    4K2K 30Hz 4:4:4
    1080p
    1080i
    720p
    720i
    480p
    480i All HDMI 3D TV Formats
    All PC Resolutions Including 1920 x 1200

  • Video Compliance

    HDMI 2.0 and HDCP v1.4/v2.2

  • HDMI Audio Formats

    LPCM 2.0/2.1/5.1/6.1/7.1
    Dolby Digital
    Dolby TrueHD
    Dolby Digital Plus(DD+)
    DTS-ES
    DTS HD Master
    DTS HD-HRA
    DTS-X

  • Analog L/R Audio Formats

    PCM 2.0

  • SPDIF Audio Formats

    LPCM2.0
    Dolby Digital
    Dolby Digital Plus
    DTS

Power & Regulatory

Jump to...
  • Power Input

    Input: AC 100 - 240V 50/60Hz
    Output: DC 24V/1A (Locking Connector)

  • Power Consumption

    13W

  • Regulatory

    FCC, CE, RoHS

  • Prop 65 Compliant

    No

Chassis and Environmental

Jump to...
  • Construction

    Metal (Black)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Operating Humidity

    20 - 90% RH (No Condensation)

  • Storage Temperature

    -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Dimensions (W x H x D)

    Transmitter/Receiver: 6.5 x 0.7 x 3.46" (165 x 18 x 88mm)

  • Weight

    Transmitter: 6 oz (170g)
    Receiver: 5.8 oz (165g)

  • UPC Code

    808447084504

About Comprehensive HDMI Extender

Be empowered with the Pro AV/IT Integrator Series HDBaseT 4K60 18G HDMI Extender Kit, a high-quality, advanced solution for extending HDMI, USB, audio, LAN, and RS232 signals over a single UTP cable up to an impressive 330ft. This reliable and durable device, known as the CHE-HDBT255U, is an innovative HDBaseT 2.0 Extender that supports video resolutions up to 4K@60Hz 4:4:4 18Gbps, ensuring crystal clear, high-definition video transmission.

The extender kit is equipped with a de-embedded audio feature for optical and L/R audio output, and a PoC function, providing a comprehensive solution for your AV/IT integration needs. It also boasts bi-directional LAN, IR & RS232 pass-through, enabling source and display control up to 330ft, offering you greater flexibility and control.

The CHE-HDBT255U extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, ensuring compatibility with the latest devices. It utilizes the highly efficient and visually lossless DSC compression scheme to extend high bandwidth signals such as 4K@60Hz (4:4:4, 8-bit) or 4K@24Hz (4:4:4, 12-bit, HDR) without visual compromise or additional latency.

This innovative extender kit also features dual USB ports, providing USB hub functionality for KVM connectivity. This makes it an ideal solution for transmitting HDMI video signals as well as webcams, external drives, touch/interactive displays, keyboard & mouse when the PC is housed in a distant control room.

The CHE-HDBT255U is powered by a single 24V power supply on either the transmitter or receiver, ensuring a flexible and clutter-free installation. It also comes with an optical and 3.5mm audio port for de-embedding digital or analog audio from the HDMI output, simplifying the connection to your audio amplifier or entertainment system.

The extender kit also extends LAN, RS-232, and IR control signals over HDBaseT, offering numerous possibilities for remotely interfacing a source or display with a control system. Its slim and compact design with mounting brackets allows for easy installation on a wall, in furniture, under a table, or hidden within a floor box, making it a discreet yet powerful solution for your HDMI extension needs.

Comprehensive HDMI Extender Features

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • The maximum extended transmission distance via a single Cat5e/6 cable: 296' for 4K2K signal 330' for 1080P signal
  • De-embedded audio to analog stereo output on receiver
  • Supports bi-directional IR, RS-232 and CEC pass-through
  • HDR, HDR10+, Dolby Vision and HLG function supported
  • Supports PoC (Power over Cable) function
  • Compact design for easy and flexible installation
  • Supports ARC (Audio Return Channel) function
  • Supports USB KVM function

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your HDMI signal up to 330ft with this HDBaseT extender kit, perfect for large venues.
  • Enjoy pristine 4K60 18G video with this HDMI extender, ensuring top-notch performance.
  • This HDBaseT HDMI extender supports USB, Audio, LAN, and RS232, offering versatile connectivity.
  • Built with a durable metal housing, this HDMI extender is designed for long-lasting reliability.
  • Integrate audio seamlessly with SPDIF and L/R outputs on this advanced HDMI extender kit.
  • Experience uncompressed video with HDMI 2.0 & HDCP 2.2 compliance on this extender.

What's in the box:

  • Comprehensive Pro AV/IT Integrator HDBaseT 4K60 18G HDMI Extender
  • Power Supply
  • 2x 3/Pin Phoenix Connector
  • 4x Mounting Brackets & Screws
  • IR Emitter
  • IR Receiver
  • User Manual
  • Comprehensive 3 Year Limited Warranty
