Comprehensive CVC-2TW/P-500BR Specifications

  • Conductor Quantity

    2

  • Gauge

    22 AWG Stranded Bare Copper

  • Conductor Colors

    Black, Red

  • Drain Wire

    26 AWG tinned copper

  • Shield

    100% Aluminum Mylar foil wrap

  • Impedance

    55 Ohms

  • Capacitance

    25 between adjacent conductors; 45 between conductors and shield

  • NOM Velocity of Propagation

    69%

  • Bulk Lengths

    500/1000

  • Jacket

    Flex-Plenum

  • Jacket Color

    Black

  • Overall Diameter

    .132"

  • UL Rating

    CMP/FT6

  • Voltage Rating

    300V

  • Temperature Rating

    75 deg C

  • RoHS Compliant

    Yes

  • Weight

    8lbs / 3.62kg

  • UPC Code

    808447068917

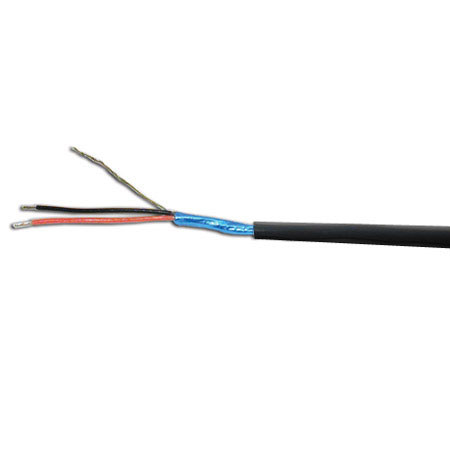

About Comprehensive CVC-2TW/P-500BR

The Comprehensive 500' Premium 2-Conductor Sheilded Plenum Audio Black Cable is a twisted pair plenum audio cable. Made up of two 22 awg bare copper wires, with a 26 awg tinned copper drain wire, the CVC-2TW/P is perfect for all audio applications requiring a plenum cable. An overall shield of aluminum mylar foil provides 100% coverage. CVC-2TW/P has a UL rating of CL2P/CMP and can be used without conduit. The 22 gauge twisted pair is perfect for carrying audio signals for pro-audio,sound systems,and recording studios. The CVC-2TW/P comes in 500 foot put- ups and includes a ripcord and sequential foot markings to facilitate easy cable management and inventory control.

Comprehensive CVC-2TW/P-500BR Features

  • Two 22 Awg Bare Copper Conductors
  • Flexible Black Plenum Jacket
  • CMP Rated
  • 500ft put-ups on Reels

Key Features

  • Two 22 Awg Bare Copper Conductors
  • Flexible Black Plenum Jacket
  • CMP Rated
  • 500ft put-ups on Reels
