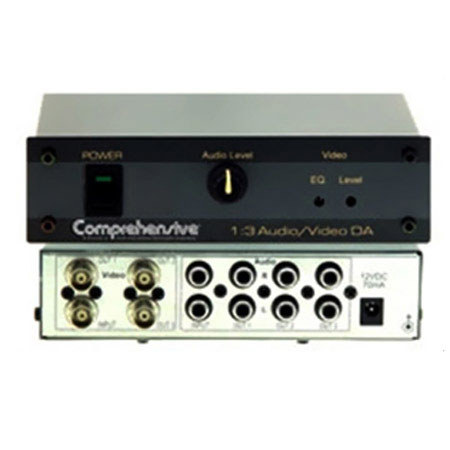

Comprehensive 1x3 Audio Video Distribution Amplifier with BNC/RCA Connectors, 430MHz Video / 100kHz Audio Bandwidth

The Comprehensive 1x3 Audio Video Distribution Amplifier with BNC/RCA Connectors is an exceptionally high performance 1x3 distribution amplifier for video and stereo audio signals. The CVG-3AVB uses BNC connectors for the video signals and RCA connectors for the audio signals. The machine accepts one input and distributes the signal to three identical outputs. The CVG-3AVB is typically used for composite video sources such as VCR's, cameras, etc., but video bandwidth exceeding 430MHz allows the machine to be used for high-resolution data/video signals, SDI (serial digital) video and other specialized signals. The machine includes a button control for audio level as well as trimmers for controlling video level and cable EQ. Accessible via the front panels. The CVG-3AVB is rugged, dependable and is housed in a convenient small enclosure for desktop professional and home use. The machine is fed from an external 12Volt DC source and is therefore suitable for fieldwork as well.
