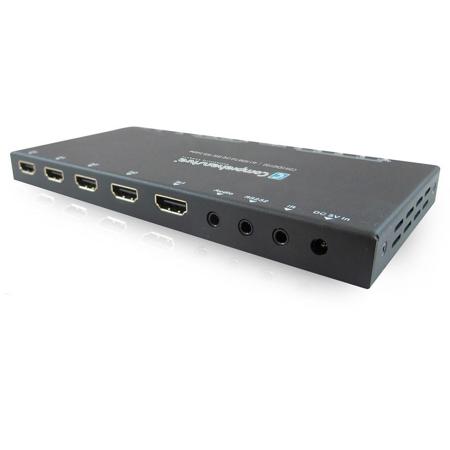

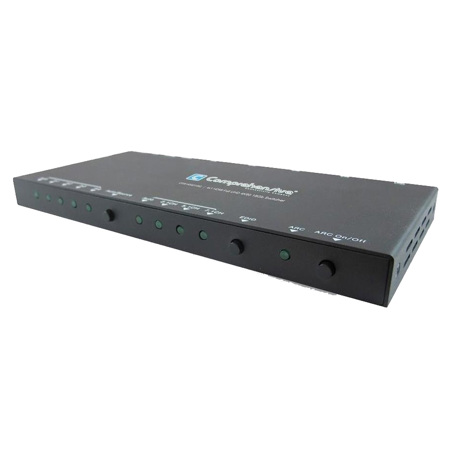

Comprehensive 4x1 Full UHD 4K60 18Gbps HDMI Switcher with Auto/Manual Switching, ARC, IR Remote and RS232 Control

SKU: CVD40118G MFR: CSW-HD40118G
$160.79
$200.99
Save: $40.2 (20%)
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI switcher.
  • Enjoy stunning video quality with support for up to 4K60 resolution on your display.
  • This HDMI switch supports ARC, extracting audio for enhanced sound setups.
  • Control your viewing experience with the included IR remote for easy switching.
  • Experience reliable HDMI switching with HDCP 2.2 for protected content.
  • Integrate easily with RS232 control for advanced home automation systems.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$17.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive Switcher Specifications

  • Input Ports

    4 HDMI Female ports, 1 IR Receive port and 1 RS232 port

  • Output port

    1 HDMI Female port and 1 L/R & Optical port

  • HDMI Compliance

    HDMI 2.0a / HDMI 1.4b

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to 4K2K at 60Hz(4:4:4), 4K2K at 30Hz, 1080P at 120Hz and 1080P 3D at 60Hz

  • HDCP Compliance

    HDCP 1.4 / HDCP 2.2 (supports HDCP 1.4 to HDCP 2.2 and HDCP 2.2 to HDCP 1.4 conversions)

  • HDMI Audio Output

    PCM 2.1 /5.1/7.1 CH , Dolby 5.1 , DTS 5.1 , Dolby-TrueHD, DTS-HD

  • ESD Protection

    Human Body Model: +/- 8kV (air-gap discharge) +/- 4kV (contact discharge)

  • Power Consumption

    Max 2.5W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions (WxDxH)

    7.1 x 3.3 x 0.5" (18.03 x 8.38 x 1.27cm)

  • Weight

    300g (10.58 oz)

  • UPC Code

    808447078756

About Comprehensive Switcher

The advanced 4x1 Full UHD 4K60 18Gbps HDMI Switcher from Adorama is a high-quality, durable solution for managing multiple HDMI inputs. With the ability to switch between four HDMI inputs and output to a single display, this efficient device is perfect for high-definition audio and video streaming.

This user-friendly HDMI switcher is equipped with cutting-edge features such as repeater, CEC, and ARC functions, allowing for the extraction of HDMI stream audio to separate digital and analog audio outputs. It supports 3D, 12-bit Deep Color, and High Definition Lossless Audio, ensuring a superior viewing and listening experience.

Control of this HDMI switcher is a breeze, with options to select inputs via front panel buttons, an IR remote, or RS232 PC control. It accepts video signals up to Ultra-high-definition 4K at 60Hz (YUV444), and is capable of receiving and transmitting up to 18Gbps of bandwidth without any data loss, ensuring a smooth and uninterrupted multimedia experience.

The HDMI switcher boasts a slim, sleek design, housed in a durable metal enclosure, making it a stylish addition to any setup. It's ideal for a variety of settings, including home theaters, huddle spaces, classrooms, conference rooms, showroom displays, lecture halls, and retail sales displays.

All components of this HDMI switcher are RoHS Compliant, reflecting our commitment to environmental responsibility. Experience the seamless integration of multiple devices with the 4x1 Full UHD 4K60 18Gbps HDMI Switcher, a testament to Adorama's dedication to delivering advanced, high-quality electronics.

Comprehensive Switcher Features

  • Switch easily between any four HDMI sources either by front panel button, or IR remote
  • Video formats up to Ultra-HD (UHD) 4Kx2K at 60 (YUV444) and all HDMI 3D TV formats
  • Compliant with HDMI 2.0a, HDMI 1.4b and DVI 1.0 standards
  • HDCP 2.2 and HDCP 1.4 compliant
  • Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH Digital and analog audio output
  • Smart EDID management
  • Built-in TMDS equalization and CDR (Clock Rate Recovery) for long HDMI cable transmission
  • Supports 2.1CH/5.1CH/7.1CH audio
  • Equipped with input port auto switching or manual switching mode
  • Audio Return Channel (ARC) functionality controlled by front panel button or IR remote
  • RS232 control
  • IR and Panel button control
  • Durable Metal Enclosure
  • 3 Year Warranty

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between four HDMI sources with this 4K HDMI switcher.
  • Enjoy stunning video quality with support for up to 4K60 resolution on your display.
  • This HDMI switch supports ARC, extracting audio for enhanced sound setups.
  • Control your viewing experience with the included IR remote for easy switching.
  • Experience reliable HDMI switching with HDCP 2.2 for protected content.
  • Integrate easily with RS232 control for advanced home automation systems.

What's in the box:

  • Comprehensive HDMI 4x1 Switcher
  • 5V/1A Power Adapter
  • 38KHz IR Rx Cable
  • Optical Convert Header (for SPDIF Audio Output)
  • HDMI 4x1 IR Remote
  • Operation Manual
  • Comprehensive 3 Year Limited Warranty
