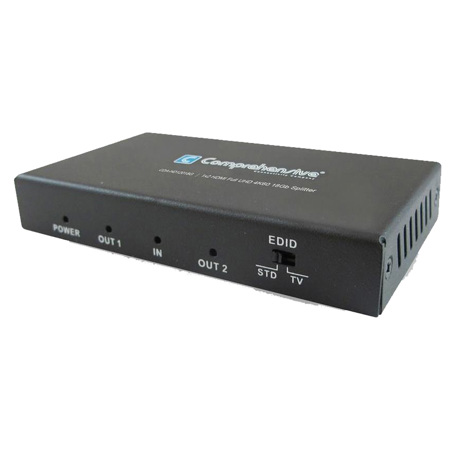

Comprehensive 1x2 HDMI Full UHD 4K60 18Gb Splitter

SKU: CVHD12018G

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What video resolutions does the 1x2 HDMI Full UHD 4K60 18Gb Splitter support?

The splitter supports Ultra-High-Definition (UHD) 4K at 60Hz 2160p, ensuring high-resolution video content on both displays.

What audio formats does this HDMI splitter support?

This HDMI splitter supports High Definition Lossless Audio, providing an immersive audio-visual experience.

What is the purpose of the EDID selection feature?

The EDID selection feature allows users to choose between TV (downstream) or STD (fixed) settings, offering flexibility based on specific needs.

What is the bandwidth capacity of the 1x2 HDMI Full UHD 4K60 18Gb Splitter?

The HDMI splitter is capable of receiving and transmitting up to 18Gbps of bandwidth without any data loss.

What type of environments is this HDMI splitter suitable for?

The HDMI splitter is suitable for a variety of professional settings, including huddle spaces, classrooms, conference rooms, showroom displays, lecture halls, and retail sales displays.

Shopper : Why Did You Choose This?MIGUEL B : Customer order

Reviews about this item

Review Summary

2020-10-27T09:06:59

Rated 5 out of 5

Works great

Works great, as good as the three we already have but cost half as much as I got locally

DONALD U.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive HDMI Splitter Specifications

  • Inputs

    1x HDMI Type A (19-pin female)

  • Outputs

    2x HDMI Type A (19-pin female)

  • HDMI Compliance

    HDMI 2.0a / HDMI 1.4b

  • Video Bandwidth

    18 Gbps

  • Video Resolutions

    Up to 4K2K at 60Hz (4:4:4),4K2K at 30Hz,1080P at 120Hz and 1080P 3D at 60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDCP Compliance: HDCP 1.4 / HDCP 2.2

  • Color Depth

    10-bit, 12-bit

  • Audio Formats

    PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • ESD Protection

    Human body model +/-8kV (air-gap discharge) & +/-4kV (contact discharge)

  • Housing

    Metal Enclosure

  • Power Supply

    5V/1A DC (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    Max: 5W

  • Operation Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    -4 to 14 deg. F (-20 to -10 deg. C)

  • Relative Humidity

    20 - 90% RH (no condensation)

  • Dimensions (WxDxH)

    2.2 x 3.7 x 0.7" (5.59 x 9.40 x 1.78cm)

  • Weight

    0.22 lbs (0.10kg)

  • UPC Code

    808447078725

About Comprehensive HDMI Splitter

FEATURED REVIEWS

Works great

By DONALD U.

Works great, as good as the three we already have but cost half as much as I got locally

Because you demand superior performance and reliability, Comprehensive's 1x2 HDMI Full UHD 4K60 18Gb Splitter is the ideal solution for distributing a single HDMI input to two simultaneous HDMI outputs. This high-quality splitter supports Ultra-High-Definition (UHD) 4K at 60Hz 2160p, ensuring crystal clear, high-resolution video content on both displays.

This efficient HDMI splitter is also compatible with HDCP 2.2, 3D, and 12-bit Deep Color, offering a wide range of video formats for your convenience. It also supports High Definition Lossless Audio, providing an immersive audio-visual experience.

Featuring EDID selections, this user-friendly device allows you to choose between TV (downstream) or STD (fixed) settings, offering flexibility based on your specific needs. It can handle video signals up to Ultra-high-definition UHD 4K at 60Hz (YUV444), and is capable of receiving and transmitting up to 18Gbps of bandwidth without any data loss, ensuring a smooth and uninterrupted viewing experience.

The 1x2 HDMI Full UHD 4K60 18Gb Splitter is housed in a slim, durable metal enclosure, designed to withstand the rigors of daily use. It's perfect for a variety of settings, from huddle spaces and classrooms to conference rooms, showroom displays, lecture halls, and retail sales displays.

As with all Comprehensive products, this HDMI splitter is RoHS Compliant, reflecting our commitment to environmental responsibility. Experience the difference in quality and performance with Comprehensive's 1x2 HDMI Full UHD 4K60 18Gb Splitter.

Comprehensive HDMI Splitter Features

  • Distribute one HDMI input to two simultaneous HDMI outputs
  • Supports Ultra-HD resolutions up to 4k2k at 30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k at 60Hz with 12bit YCBCR 4:4:4 , high resolution VESA mode video format up to QSXGA at 60Hz
  • 12-bit Deep Full HD, Full 3D, HDR
  • Wide Frequency Range: 25MHz - 600MHz
  • Compliant with HDMI 2.0a, HDMI 1.4b (1080p at 60Hz) and DVI 1.0 specification
  • Integrated HDCP 1.4 and HDCP 2.2 decryption/encryption engines
  • LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio support and HD losless audio
  • Smart EDID control
  • Durable Metal Enclosure

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • 1x2 HDMI splitter for UHD 4K60 18Gb signal distribution
  • Supports 4K at 60Hz 2160p, HDCP 2.2, 3D, and 12-bit Deep Color
  • High Definition Lossless Audio compatibility for superior sound
  • EDID management for TV (downstream) or STD (fixed) settings
  • Robust 18Gbps bandwidth for seamless video transmission
  • Sturdy metal enclosure ideal for various professional environments

What's in the box:

  • Comprehensive 1x2 HDMI Full UHD 4K60 18Gb Splitter
  • 5V/1A DC Power Adapter (US)
  • Operation Manual
  • Comprehensive 3 Year Limited Warranty
