What is the maximum distance the HDBaseT 2.0 4K Extender with USB can transmit signals?

The HDBaseT 2.0 4K Extender with USB can transmit signals up to 330 feet or 100 meters.

What type of video quality does the HDBaseT 2.0 4K Extender with USB support?

This extender supports Ultra-high-definition 4K at 60Hz and full HD 1080p at 60Hz.

Can I control the source device from a distance with the HDBaseT 2.0 4K Extender with USB?

Yes, the HDBaseT 2.0 4K Extender with USB has two USB device ports that allow you to control the source device from the sink side up to 330 feet away.

Does the HDBaseT 2.0 4K Extender with USB support Power over Ethernet (PoE)?

Yes, the HDBaseT 2.0 4K Extender with USB supports PoE, allowing you to power both the transmitter and receiver with only one power cable.

What devices is the HDBaseT 2.0 4K Extender with USB compatible with?

The HDBaseT 2.0 4K Extender with USB is compatible with a wide range of devices, including HDMI, IR, KVM, POE, RS-232, 422, and 485, as well as USB. It can be used with computers, TVs, and other home theater equipment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive Extender Specifications

  • Video Bandwidth

    Up to 10.2Gbps

  • Transmitter Input/Output Ports

    1x HDMI, 1x LAN, 1x USB-H, 1x IR in, 1x Audio in, 1x RS232, 1x Optical (SPDIF in)
    Output Ports: 1x IR out, 1x Optical (SPDIF out), 1x HDBaseT OUT, 2x USB-D

  • Receiver Input/Output Ports

    1x IR in, 1x Optical (SPDIF in), 1x HDBaseT IN, 1x USB-H
    Output Ports: 1x HDMI, 1x LAN, 2x USB, 1x IR out, 1x Audio out, 1x RS232, 1x Optical (SPDIF out)

  • Power Supply

    DC 24V 1A

  • ESD Protection

    +/-8kV (air-gap discharge) Human Body Model

  • Transmission Distance

    Up to 330' (100.59m)

  • Power Consumption

    12W (Max)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 104 deg. F (-20 to 40 deg. C)

  • Relative Humidity

    20 - 90% RH (non-condensing)

  • Dimensions (WxDxH)

    6.3 x 3.8 x 1.1" (16.00 x 9.65 x 2.79cm)

  • Weight

    2 lbs (0.91kg)

About Comprehensive Extender

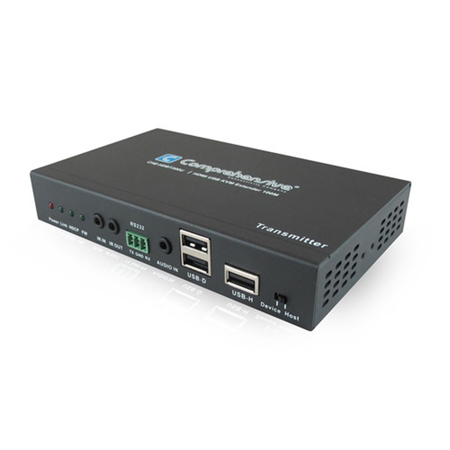

Overcome the limitations of traditional AV setups with the Comprehensive CHE-HDBT300U HDBaseT 2.0 Extender with USB, a high-quality solution designed to extend your uncompressed HDMI signal up to 330 feet to a compatible display. This advanced extender is engineered with full 5Play and USB convergence, enabling seamless transmission of Video, Audio, Control (Bi-Directional IR/RS-232), Power over Ethernet (PoE), and LAN serving (Ethernet) through a single CAT5e or CAT6 cable.

Experience the pinnacle of high-definition with support for HDCP 2.2, allowing video signals up to Ultra-high-definition 4K at 60Hz (YCbCr 4:2:0), as well as full HD 1080p at 60Hz. The extender's innovative design includes LAN serving connection and external digital and analog audio capability, offering users the added convenience of multiple audio connections.

With the integration of USB host and two USB device ports, this extender supports the control of the Source on the Sink side from a remarkable distance of 330 feet away, making it an ideal choice for large venues like home theaters, classrooms, and corporate boardrooms. The reliable and durable construction of the CHE-HDBT300U ensures that both the transmitter and receiver can be powered by the 24V at 1A PoE function with only one power cable, providing greater flexibility and ease in installations.

Choose the Comprehensive CHE-HDBT300U HDBaseT 2.0 Extender with USB for its compatibility with a wide range of devices and long-distance transmission capability, ensuring that your audiovisual experiences are not only uninterrupted but also of the highest quality.

Comprehensive Extender Features

  • Send uncompressed 4K2K at 60Hz (YCbCr 4:2:0) video, audio, USB and IP data over a CAT5e/6/7 cable up to 330ft
  • HDCP 2.2 compatible
  • Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 330ft
  • Full HDBaseT 5play features include Video, Audio, Control (IR or RS-232), Power and an Ethernet connection
  • Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more
  • POE (Power Over Ethernet) function support, from either TX or RX powered 24V at 1A
  • Supports USB 2.0 control
  • Supports external Bi-Directional SPDIF IN/OUT and available for multichannel audio
  • Supports stereo audio with PCM 2CH
  • Supports Bidirectional Infrared and RS232 control

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extends HDMI, IR, and USB signals up to 330 feet via HDBaseT 2.0 technology
  • Supports 4K Ultra HD at 60Hz and full HD 1080p for superior video quality
  • Full 5Play convergence: Video, Audio, Control, PoE, and Ethernet in one cable
  • Dual USB ports enable remote control of source devices from a distance
  • PoE functionality allows for flexible installations with a single power cable
  • Compatible with HDCP 2.2 for the latest high-definition content protection

What's in the box:

  • Comprehensive Transmitter
  • Receiver
  • 2x Wideband IR Transmitters
  • 2x Wideband IR Receivers
  • 24VDC /1A Power Adapter
  • 2x Phoenix Male Jacks
  • 4x Mounting Ears
  • Operation Manual
  • Comprehensive 3 Year Limited Warranty
