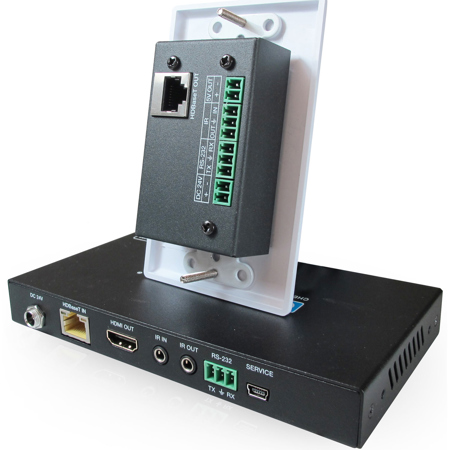

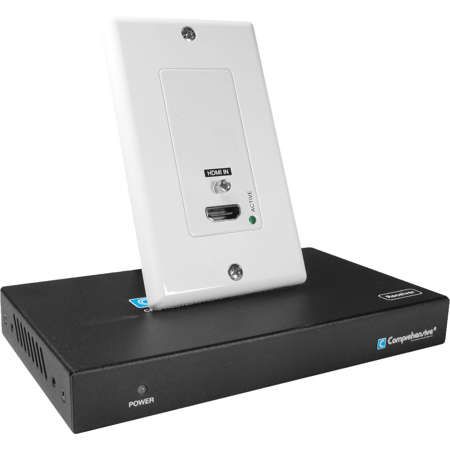

Comprehensive Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit, 230' Range

SKU: CVHDBTWP100K MFR: CHE-HDBTWP100K
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230 feet with this HDBaseT Wall Plate Extender Kit for ultimate convenience.
  • Experience stunning 4K60 resolution with HDMI 2.0 and HDCP 2.2, ensuring top-tier video fidelity.
  • This Wall Plate Kit supports versatile audio formats like Dolby TrueHD and DTS-HD for immersive sound.
  • Control your devices remotely using the included IR blaster and extender cables with this HDMI extender.
  • Enjoy a clean, professional install with the single-gang HDMI Wall Plate design, perfect for any setup.
  • This durable metal HDMI extender supports RS-232 control, enhancing your AV system's capabilities.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$40.99

3 Year

$64.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive Wall Plate Extender Specifications

Performance & Resolution

Performance & Resolution

Jump to...
  • Audio Formats Supported

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD

  • CEC

    Yes

  • Color Bit Depth

    10-bit, 12-bit

  • Color Space

    RGB/YCbCr 4:4:4, YCbCr 4:2:2

  • Data Speed

    18Gbps (bandwidth)

  • Distances Supported

    230'

  • HDCP Version

    2.2 version

  • Resolution and Refresh Rate

    4K2K@50/60Hz(YUV4:4:4), 4K2K@30hz, 1080P@120hz, and 1080P 3D@60hz

  • Signal Technology Versions

    HDMI 2.0

Connections

Jump to...
  • Transmitter Inputs

    1x HDMI Type A (19-pin female)
    1x IR INPUT (Phoenix jack)
    1x RS-232 (Phoenix jack)

  • Transmitter Outputs

    1x HDBaseT In (RJ-45)

  • Receiver Inputs

    1x HDBaseT In (RJ-45)
    1x IR
    1x RS232
    1x Service (Mini-USB)

  • Receiver Outputs

    1x HDMI
    1x IR

Environmental

Jump to...
  • Operating Temperature

    0 Degree - 70 Degree F (-17 Degree - 21.1 Degree C)

  • Storage Temperature

    32 Degree - 104 Degree F (0 Degree - 40 Degree C)

  • Input

    AC100 - 240V 50/60Hz

  • Output

    DC 24V/1A

  • P.O.C

    Yes

  • Power Consumption

    <10 Watts

Regulatory Device

Jump to...
  • CE

    Yes

  • Prop 65 Compliant

    Yes

  • Rohs Compliant

    Yes

  • UL

    Yes

Regulatory Power Supply

Jump to...
  • CE

    Yes

  • Prop 65 Compliant

    Yes

  • Rohs Compliant

    Yes

Physical

Jump to...
  • Color

    Black

  • Material

    Metal

  • Dimensions (W x H x D)

    6.8 x 8.7 x 1.5" (17.27 x 22 x 3.81cm)

  • UPC Code

    808447081749

About Comprehensive Wall Plate Extender

Enhance your audio-visual experience with the Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit. This sleek and modern device is designed to transmit ultra-high-definition 4K2K@60 (4:4:4) signals up to 130 feet, making it an ideal solution for extending 18G HDMI signals over long distances.

Featuring state-of-the-art HDBaseT technology, this high-tech extender kit can transmit up to 4K2K@60 (4:4:4) video over a single CAT6/6a/7 cable, ensuring you always receive a brilliant, UHD signal, even when your display device is over 100 feet away.

But that's not all. This innovative extender kit also has the capability to transmit high-definition HDMI audio and video up to 230 feet, making it a versatile workhorse for all your UHD and HD extension needs.

The Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit also supports Power over Cable (PoC) functionality, providing added flexibility in installation environments. This feature, along with its support for two-way IR and RS-232, makes this product an extremely versatile solution for your next installation.

Designed to be easily and discreetly installed on a wall, this stylish wall plate extender kit eliminates the need for additional hardware or mounting brackets, offering a clean and professional look.

Since 1974, Adorama has been committed to manufacturing the highest quality commercial grade solutions for AV and IT professionals. The Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit continues this tradition, offering high-end materials, components, and quality control to ensure years of worry-free use. Trust in Adorama for your audio-visual needs, and experience the difference in quality and performance.

Comprehensive Wall Plate Extender Features

  • HDMI 2.0 and HDCP 2.2 compliant
  • Supports resolutions up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
  • Up to 7.1 channels HD audio
  • HDBaseT over a single CAT 6/6a/7 cable up to 230'/70m distance
  • One HDMI input, 1 Gang US Decora Wall Plate
  • Two-way IR and RS-232
  • POC (Power Over Cable) function is supported by 24V1A power supply, the transmitter does not need power supply from the DC jack
  • Power consumption is less than 10W
  • Vinyl white decora plate

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your HDMI signal up to 230 feet with this HDBaseT Wall Plate Extender Kit for ultimate convenience.
  • Experience stunning 4K60 resolution with HDMI 2.0 and HDCP 2.2, ensuring top-tier video fidelity.
  • This Wall Plate Kit supports versatile audio formats like Dolby TrueHD and DTS-HD for immersive sound.
  • Control your devices remotely using the included IR blaster and extender cables with this HDMI extender.
  • Enjoy a clean, professional install with the single-gang HDMI Wall Plate design, perfect for any setup.
  • This durable metal HDMI extender supports RS-232 control, enhancing your AV system's capabilities.

What's in the box:

  • 18G HDMI Wall Plate Transmitter
  • Single-Gang Faceplate
  • 2x Faceplate Screws
  • 18G HDMI Receiver
  • IR Blast Cable
  • IR Extender Cable
  • 2x Phoenix Connector (3-Pin)
  • 2x Phoenix Connector (2-Pin)
  • 24V/1A Power Adapter
  • User Manual
  • Comprehensive 3 Year Limited Warranty
