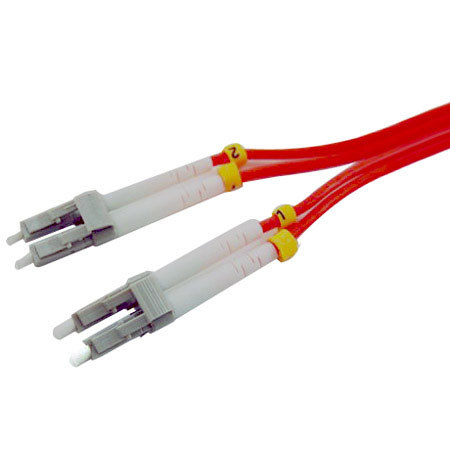

Comprehensive 32.8' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable
See all Comprehensive items
20% Off

Comprehensive 32.8' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable, PVC Buffer Material

SKU: CVLCLCMM10M MFR: LC-LC-MM-10M
Be the first to review this itemAsk a Question
$36.79
$45.99
Save: $9.2 (20%)
Earn VIP Reward Points

Key Features

  • Experience reliable connectivity with this 32.8ft Multimode Fiber Optic Patch Cable.
  • Ensure optimal performance with LC to LC connectors, minimizing signal loss at 0.30 dB.
  • Built with durable PVC, this fiber optic cable withstands 5,000 flex cycles for longevity.
  • This Multimode fiber optic cable supports 200/500MHz.km OFL at 850/1300 nm for fast data.
  • Enjoy wide compatibility; this fiber optic cable operates efficiently from -20C to +80C.
  • Rely on this RoHS compliant fiber optic cable for a safe and eco-friendly network solution.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comprehensive LC-LC-MM-10M Specifications

  • Connector 1

    LC Male

  • Connector 2

    LC Male

  • Optical Multimode 1 (OM1) fiber supports

    200/500MHz.km OFL at 850/1300 nm

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0 mm

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Min. Bend Radius

    5.0cm (1.97in)

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2in)

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)

  • Weight

    0.42lbs / 0.19kg

  • UPC Code

    808447045680

About Comprehensive LC-LC-MM-10M

Take your data transfer capabilities to the next level with our 32.8' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable. Expertly crafted from the highest quality materials, this cable is designed to facilitate high-speed data transfer for a variety of applications, including fast Ethernet, fibre channel, Infiniband, ATM, and gigabit Ethernet.

This multimode fiber optic patch cable features LC/LC Duplex 62.5/125 connectors, color-coded for your convenience, and a robust PVC buffer material that ensures durability and longevity. The vibrant orange color of the 62.5/125 micron cable not only adds a visual appeal but also aids in easy identification amidst a sea of cables.

Each of our 32.8' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cables undergoes rigorous optical inspection and testing for insertion loss, ensuring that you receive a product that performs at its best. Enhance your data transmission efficiency with this reliable and high-performing fiber optic patch cable.

Comprehensive LC-LC-MM-10M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.
