20% Off

Comprehensive 328' (100m) LC Male to SC Male OM1 MM 3.0 MM Duplex Patch Cable

SKU: CVLCSCMM100M MFR: LC-SC-MM-100M
$183.99
$229.99
Save: $46 (20%)
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfers over long distances with this 328ft fiber optic cable.
  • Experience superior connectivity with LC to SC connectors for seamless network integration.
  • This durable multimode duplex patch cable is built to last, reducing the need for replacements.
  • Minimize signal loss with a maximum connector loss of just 0.30 dB for optimal performance.
  • Enjoy peace of mind with our lifetime limited warranty on this high-quality fiber optic cable.
  • Perfect for high-bandwidth applications, this Ethernet cable supports fast and stable connections.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-SC-MM-100M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    328' (100m)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    3lbs (1.36kg)

  • UPC Code

    808447069303

About Comprehensive LC-SC-MM-100M

After meticulous design and construction, the Comprehensive 328' (100m) LC Male to SC Male OM1 MM 3.0 MM Duplex Patch Cable stands as a testament to high-quality, durable, and reliable networking solutions. Crafted from the finest materials, this fiber optic patch cable is engineered to facilitate high-speed data transfer, making it ideal for applications such as Fast Ethernet, Fibre Channel, Infiniband, ATM, and Gigabit Ethernet.

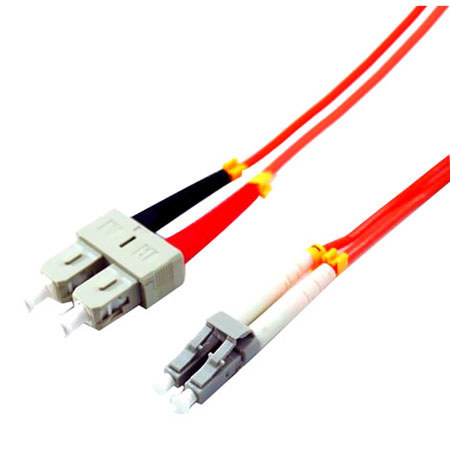

The cable features a male LC connector on one end and a male SC connector on the other, ensuring seamless connectivity between various networking devices such as computers, routers, switches, and more. The duplex design of the cable allows for simultaneous, bidirectional data transfer, enhancing the efficiency of your networking system.

The vibrant orange color of the cable not only aids in easy identification amidst a sea of cables but also signifies its 62.5/125 micron specification. This cable is 100% optically inspected and rigorously tested for insertion loss, ensuring optimal performance and reliability.

Whether you're setting up a complex network system or simply extending your existing setup, the Comprehensive 328' (100m) LC Male to SC Male OM1 MM 3.0 MM Duplex Patch Cable is a flexible and affordable solution that doesn't compromise on quality or durability.

Comprehensive LC-SC-MM-100M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure reliable data transfers over long distances with this 328ft fiber optic cable.
  • Experience superior connectivity with LC to SC connectors for seamless network integration.
  • This durable multimode duplex patch cable is built to last, reducing the need for replacements.
  • Minimize signal loss with a maximum connector loss of just 0.30 dB for optimal performance.
  • Enjoy peace of mind with our lifetime limited warranty on this high-quality fiber optic cable.
  • Perfect for high-bandwidth applications, this Ethernet cable supports fast and stable connections.

What's in the box:

  • Comprehensive 328' (100m) Duplex Patch Cable
  • Comprehensive Lifetime Limited Warranty
