Comprehensive 6.56' LC Male to SC Male Duplex Fiber Patch Cable
See all Comprehensive items
20% Off

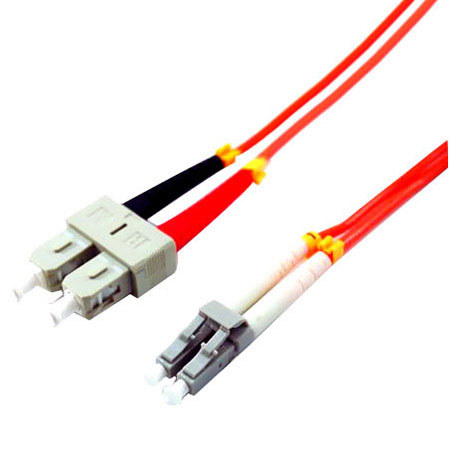

Comprehensive 6.56' LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable

SKU: CVLCSCMM2M MFR: LC-SC-MM-2M
Be the first to review this itemAsk a Question
$26.39
$32.99
Save: $6.6 (20%)
Earn VIP Reward Points

Key Features

  • Experience fast data transfers with this 6.56' Multimode Fiber Patch Cable.
  • Get a durable fiber connection with robust PVC jacket & 900 um buffer material.
  • This LC to SC Fiber Cable ensures minimal signal loss (0.20 dB typical).
  • Enjoy reliable performance with a -25 dB typical return loss on this fiber cable.
  • The 6.56-foot fiber optic cable supports a wide operating temperature range.
  • This RoHS compliant fiber patch cable offers a secure and stable connection.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-MM-2M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    6.56' (2m)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    0.5lbs / 0.22kg

  • UPC Code

    808447045802

About Comprehensive LC-SC-MM-2M

Are you in search of a high-quality solution for your high-speed data transfer needs Look no further than the Comprehensive 6.56' (2m) LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable. Expertly crafted from the finest quality materials, this cable is designed to deliver superior performance for a range of applications, including fast ethernet, fibre channel, Infiniband, ATM, and gigabit ethernet.

This LC/SC Duplex 62.5/125 Multimode Fiber Patch Cable stands out with its distinctive orange color, making it easy to identify in a complex setup. The color-coded connectors add an extra layer of convenience, simplifying the installation process and reducing the risk of errors.

Each 6.56' LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable undergoes rigorous quality checks. It is 100% optically inspected and tested for insertion loss, ensuring that it meets the highest standards of reliability and performance. This comprehensive attention to detail guarantees that you can rely on this cable for your most critical data transfer needs.

In a world where speed and reliability are paramount, the Comprehensive 6.56' LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable is the ideal choice for professionals seeking a high-quality, dependable solution.

Comprehensive LC-SC-MM-2M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm

Warranty Information

This product has a limited lifetime warranty.
