Comprehensive 16.40' LC Male to SC Male Duplex Fiber Patch Cable
See all Comprehensive items
20% Off

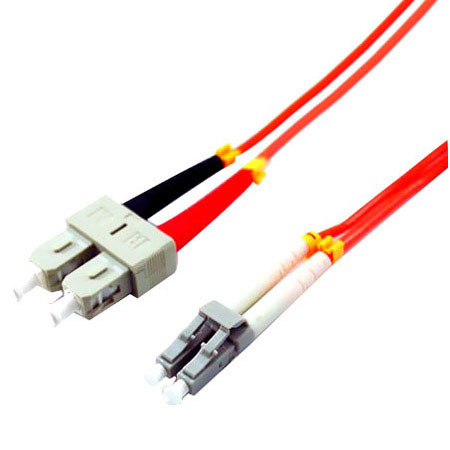

Comprehensive 16.40' LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable

SKU: CVLCSCMM5M MFR: LC-SC-MM-5M
Be the first to review this itemAsk a Question
$33.59
$41.99
Save: $8.4 (20%)
Earn VIP Reward Points

Key Features

  • Experience reliable data transfers with this 16.4ft fiber optic patch cable.
  • This Multimode fiber cable ensures high performance for your network connections.
  • Enjoy a secure connection with LC to SC connectors, minimizing signal loss.
  • Built to last, this durable fiber cable withstands bends and impacts.
  • Perfect for setting up a robust network with its riser-rated jacket.
  • This fiber cable is RoHS compliant, ensuring environmental safety standards.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$3.99
2-Year Adorama Protect$5.99
3-Year Adorama Protect$8.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the color-coded connectors on this LC to SC Duplex Multimode Fiber Patch Cable?

The color-coded connectors on this cable are designed for easy identification and convenience during setup. The orange color signifies that it's a multimode fiber optic cable, which can support longer distances and higher data transfer rates compared to single mode fiber optic cables.

What applications is this LC to SC Duplex Multimode Fiber Patch Cable suitable for?

This cable is ideal for high-speed data transfer and networking applications such as fast Ethernet, fibre channel, Infiniband, ATM, and gigabit Ethernet. Its duplex nature allows for bidirectional data transmission.

What does it mean that this cable is 100% optically inspected and tested for insertion loss?

This means that each cable is thoroughly checked to ensure optimal performance and reliability. Optical inspection and testing for insertion loss ensure that the cable can transmit data effectively without significant power loss at the point of connection.

Can this LC to SC Duplex Multimode Fiber Patch Cable be used with various devices?

Yes, this cable features a male LC connector on one end and a male SC connector on the other, enabling it to connect with a wide range of devices that support fiber optic communication, such as switches, routers, and servers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-MM-5M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    16.40' (5m)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    1lbs / 0.45kg

  • UPC Code

    808447045826

About Comprehensive LC-SC-MM-5M

After meticulous design and manufacturing, the Comprehensive 16.40' (5m) LC Male to SC Male Duplex 62.5/125 Multimode Fiber Patch Cable stands as a testament to superior quality and durability. This high-performance cable, crafted from the finest materials, is a reliable solution for high-speed data transfer and networking applications.

The cable features color-coded connectors for easy identification and convenience, with a male LC connector on one end and a male SC connector on the other. This configuration allows seamless connectivity with a wide range of devices, including switches, routers, and servers, enhancing the versatility of your networking setup.

As a duplex cable, it supports bidirectional data transmission, making it an ideal choice for demanding applications such as fast Ethernet, fibre channel, Infiniband, ATM, and gigabit Ethernet. The orange color signifies its multimode fiber optic nature, capable of supporting longer distances and higher data transfer rates compared to its single mode counterparts.

Each 62.5/125 micron cable undergoes rigorous quality checks. It is 100% optically inspected and tested for insertion loss, ensuring optimal performance and reliability. With this Comprehensive LC/SC Duplex Multimode Fiber Patch Cable, you can expect consistent, high-quality data transmission, making it an affordable and flexible solution for your networking needs.

Comprehensive LC-SC-MM-5M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm

Warranty Information

This product has a limited lifetime warranty.
