20% Off

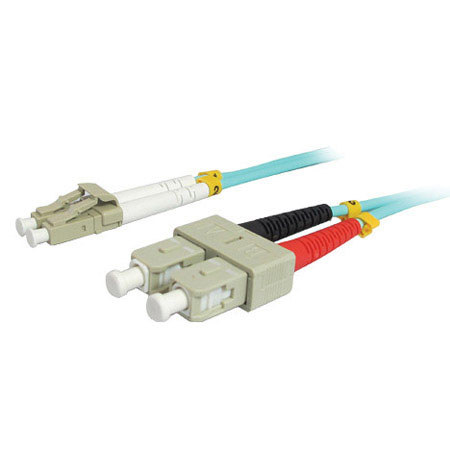

Comprehensive 20m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable, Aqua

SKU: CVLCSCOM320M MFR: LC-SC-OM3-20M
$107.99
$134.99
Save: $27 (20%)
Earn VIP Reward Points

Key Features

  • Experience blazing-fast data transfers with this 20m fiber patch cable, perfect for demanding networks.
  • Ensure reliable connections using LC Male to SC Male connectors on this durable fiber optic cable.
  • Minimize signal loss with a maximum connector loss of just 0.30 dB in this high-performance cable.
  • Built to last, this fiber cable features a PVC jacket and robust construction for long-term use.
  • This 50/125 Multimode fiber patch cable is RoHS compliant, ensuring environmental responsibility.
  • Achieve optimal performance in a variety of temperatures with an operating range of -20C to +80C.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-SC-OM3-20M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    20m (65.61')

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    0.82lbs / 0.37kg

  • UPC Code

    808447068887

About Comprehensive LC-SC-OM3-20M

Where high-speed data transmission is a necessity, the Comprehensive 20m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable stands out as a superior choice. This durable and high-quality cable is designed with laser-optimized multimode fiber (LOMMF) technology, ensuring backward compatibility with existing 50/125 equipment. It also provides the performance headroom needed to support advanced laser light sources and 10 Gigabit applications.

Crafted for reliable and efficient Ethernet networking, this 20m LC Male/SC Male Duplex Fiber Patch Cable is ideal for connecting a wide range of devices, from computers and routers to switches and other networking equipment. Its flexible design and robust construction make it a reliable choice for both professional and personal use.

The cable's Optical Multimode 3 (OM3) fiber supports a high-speed 2000 MHz/km Effective Modal Bandwidth (EMB) at 850nm, facilitating 10 Gigabit transfers up to 300 meters using an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) source. This ensures fast and efficient data transmission over long distances, making it an excellent choice for large-scale networking setups.

The cable features an aqua-colored jacket made of Polyvinyl Chloride (PVC), which is Optical Fiber Nonconductive Riser (OFNR) rated. This not only adds a touch of color to your networking setup but also ensures the cable's durability and longevity.

In summary, the Comprehensive 20m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable is a reliable, high-quality, and affordable solution for all your networking needs.

Comprehensive LC-SC-OM3-20M Features

  • 10-Gigabit application support
  • Duplex cable is joined together in a zipcord style for easy separation
  • Features a Laser-Optimized 50-um core and 125-um cladding
  • Use with both LED and VCSEL laser light sources
  • Ceramic ferrules for long-lasting reliability and precision alignment
  • Used to connect patch panels and/or network devices that require 50/125 multimode cabling
  • Optical Multimode 3 (OM3) fiber supporting 2000 MHz.km EMB at 850 nm
  • OFNR jacket complies with stringent building codes

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience blazing-fast data transfers with this 20m fiber patch cable, perfect for demanding networks.
  • Ensure reliable connections using LC Male to SC Male connectors on this durable fiber optic cable.
  • Minimize signal loss with a maximum connector loss of just 0.30 dB in this high-performance cable.
  • Built to last, this fiber cable features a PVC jacket and robust construction for long-term use.
  • This 50/125 Multimode fiber patch cable is RoHS compliant, ensuring environmental responsibility.
  • Achieve optimal performance in a variety of temperatures with an operating range of -20C to +80C.
