Comprehensive 5m 10Gb LC Male/SC Male Duplex Fiber Patch Cable, Aqua
See all Comprehensive items
20% Off

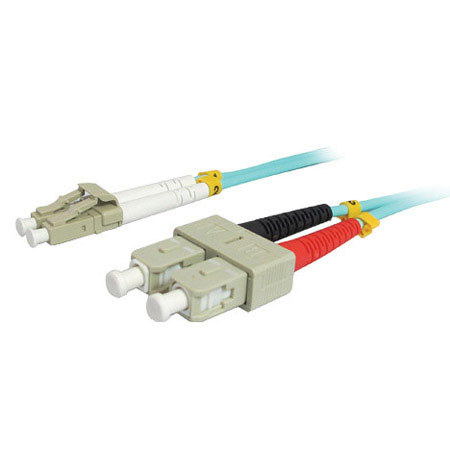

Comprehensive 5m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable, Aqua

SKU: CVLCSCOM35M MFR: LC-SC-OM3-5M
Be the first to review this itemAsk a Question
$53.59
$66.99
Save: $13.4 (20%)
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this 5-meter fiber patch cable, perfect for quick connections.
  • Built for durability, this LC to SC fiber cable ensures a stable connection in demanding environments.
  • This Multimode fiber optic cable is optimized for 10Gb networks, enhancing performance and speed.
  • Enjoy a secure connection with minimal signal loss using our high-quality fiber connectors.
  • The aqua jacket helps easily identify your fiber optic cables in complex network setups.
  • At 5 meters, this cable provides the ideal length for connecting devices without excess slack.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$5.99
2-Year Adorama Protect$8.99
3-Year Adorama Protect$15.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the term 'duplex' mean in the context of fiber patch cables?

The term 'duplex' refers to the cable having two fibers, allowing for simultaneous two-way data transmission. This is essential for applications that require full-duplex communication.

Can this fiber patch cable be used for both laser and LED light sources?

Yes, this cable is laser-optimized, making it suitable for laser light sources, and it also provides backward compatibility with LED light sources.

What does the '50/125' designation on the fiber patch cable indicate?

The '50/125' designation refers to the diameter of the fiber core and cladding. It means the core is 50 micrometers wide and the cladding surrounding the core is 125 micrometers.

Why is the jacket of the fiber patch cable colored aqua?

The aqua color of the jacket typically indicates that the cable is a multimode OM3 fiber, which is designed for high-speed data transfer and is a visual identifier for this type of cable.

Are LC and SC connectors on this cable compatible with all networking equipment?

LC and SC connectors are widely used in the industry and compatible with many networking devices. However, it's always best to check your device's specifications to ensure compatibility.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-OM3-5M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    5m (16.40')

  • LC Connector Dimensions (H x W x D)

    10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)

  • SC Connector Dimensions (H x W x D)

    10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    0.22lbs /

  • UPC Code

    808447068849

About Comprehensive LC-SC-OM3-5M

Because high-speed data transfer is crucial in today's digital world, the Comprehensive 5m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable is designed to meet and exceed your networking needs. This durable and reliable cable is a laser-optimized multimode fiber (LOMMF), ensuring backward compatibility with your existing 50/125 equipment, while simultaneously providing the performance headroom necessary for laser light sources and 10 Gigabit applications.

Crafted with Optical Multimode 3 (OM3) fiber, this high-quality cable supports an impressive 2000 MHz/km Effective Modal Bandwidth (EMB) at 850nm. This feature enables 10 Gigabit data transfers up to a distance of 300 meters when using an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) source.

The cable is equipped with a male LC connector on one end and a male SC connector on the other, making it highly versatile and compatible with a wide range of networking devices such as switches, routers, and servers.

Wrapped in an aqua-colored jacket made of PVC, this cable is not only visually distinctive but also OFNR-rated, signifying its compliance with optical fiber nonconductive riser standards. This makes it a safe, flexible, and affordable choice for your networking and data transfer needs.

In conclusion, the Comprehensive 5m 10Gb LC Male/SC Male Duplex 50/125 Multimode Fiber Patch Cable is a robust solution for those seeking superior data transmission performance.

Comprehensive LC-SC-OM3-5M Features

  • 10-Gigabit application support
  • Duplex cable is joined together in a zipcord style for easy separation
  • Features a Laser-Optimized 50-um core and 125-um cladding
  • Use with both LED and VCSEL laser light sources
  • Ceramic ferrules for long-lasting reliability and precision alignment
  • Used to connect patch panels and/or network devices that require 50/125 multimode cabling
  • Optical Multimode 3 (OM3) fiber supporting 2000 MHz.km EMB at 850 nm
  • OFNR jacket complies with stringent building codes

Warranty Information

This product has a limited lifetime warranty.
