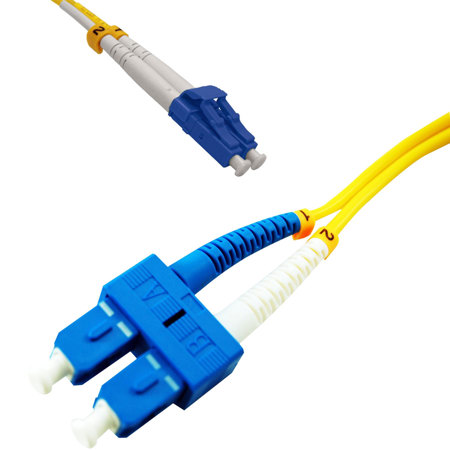

Comprehensive 20m LC Male to SC Male SM 9/125 Micron Duplex Fiber Patch Cable
See all Comprehensive items
20% Off

Comprehensive 20m LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable

SKU: CVLCSCSM20M MFR: LC-SC-SM-20M
Be the first to review this itemAsk a Question
$63.99
$79.99
Save: $16 (20%)
Earn VIP Reward Points

Key Features

  • Experience reliable connectivity with this 20m LC to SC single mode fiber patch cable.
  • Ensure optimal performance with our duplex single mode fiber optic cable, 9/125 micron.
  • This durable fiber cable features a PVC jacket, OFNR riser-rated, for robust protection.
  • Enjoy low signal loss (0.20dB typical) with this high-quality LC to SC fiber cable.
  • Get a strong, flexible connection; this fiber patch cable resists bending and crushing.
  • This RoHS compliant fiber cable supports a wide operating temperature range.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-SM-20M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    20m/65.61'

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm / 0.17 x 0.17 x 1.96"

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Weight

    2lbs / 0.9kg

  • UPC Code

    808447046342

About Comprehensive LC-SC-SM-20M

It's the Comprehensive 20m/65.61' LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable, a superior, durable, and reliable solution for your data transmission needs. This high-quality single-mode patch cable assembly is designed to deliver exceptional performance for gigabit Ethernet applications.

Constructed with a robust and flexible design, this LC/SC Duplex 9/125 Single Mode Fiber Patch Cable features a vibrant yellow color for easy identification. The 9/125 micron cable is meticulously engineered to transmit data over long distances without any signal loss, ensuring seamless connectivity between your devices.

Each cable undergoes rigorous quality control, being 100% optically inspected and tested for insertion loss, guaranteeing its reliability and high performance. With male LC and SC connectors on either end, this cable is designed to connect two devices that support single-mode fiber optic cables.

Choose the Comprehensive 20m LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable for a dependable, high-bandwidth data transmission solution. This affordable yet high-quality product is a testament to Comprehensive's reputation for producing top-tier electronics.

Comprehensive LC-SC-SM-20M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.
