Comprehensive 3m LC Male to SC Male SM 9/125 Micron Duplex Fiber Patch Cable
See all Comprehensive items
20% Off

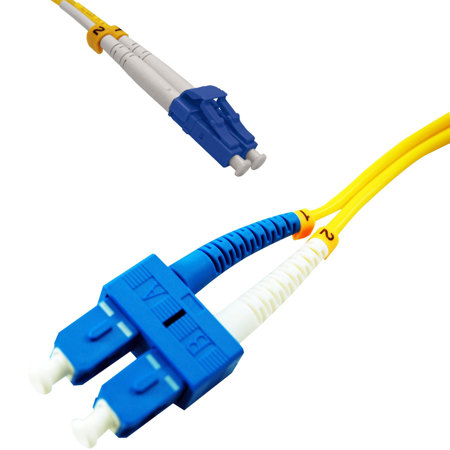

Comprehensive 3M LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable

SKU: CVLCSCSM3M MFR: LC-SC-SM-3M
Be the first to review this itemAsk a Question
$39.99
$49.99
Save: $10 (20%)
Earn VIP Reward Points

Key Features

  • Ensure fast data transfers with this 3M single mode fiber patch cable.
  • Experience reliable connections using our durable LC to SC fiber optic cable.
  • This single mode cable supports a wide range of networking applications.
  • Minimize signal loss with our high-quality, shielded fiber optic cable.
  • Enjoy flexible installation with a 3-meter LC to SC fiber patch cable.
  • Get optimal performance with low insertion loss on this fiber optic cable.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-SM-3M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    3m/9.84'

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm / 0.17 x 0.17 x 1.96"

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Weight

    0.6lbs / 0.27kg

  • UPC Code

    808447046298

About Comprehensive LC-SC-SM-3M

The Comprehensive 3m/9.84' LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable is a high Quality Single-mode Patch Cable Assembly. This LC/SC Duplex 9/125 Single Mode Fiber Patch Cable - Yellow 9/125 micron cable is used for gigabit ethernet applications. Each cable is 100% optically inspected and tested for insertion loss.

Comprehensive LC-SC-SM-3M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.
