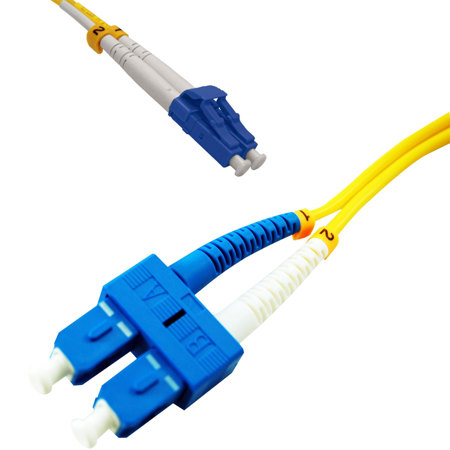

Comprehensive 7m LC Male to SC Male SM 9/125 Micron Duplex Fiber Patch Cable
See all Comprehensive items
20% Off

Comprehensive 7m LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable

SKU: CVLCSCSM7M MFR: LC-SC-SM-7M
Be the first to review this itemAsk a Question
$46.39
$57.99
Save: $11.6 (20%)
Earn VIP Reward Points

Key Features

  • This 7m Fiber Patch Cable ensures reliable connectivity between LC and SC devices.
  • Experience minimal signal loss with our Single Mode Fiber, boasting only 0.20 dB typical loss.
  • Built to last, this durable fiber cable withstands 1,000 impact cycles for long-term use.
  • Enjoy a broad operating temperature range with this fiber optic cable, from -20C to +80C.
  • Our 9/125 Micron Fiber cable supports high-speed data transfer for demanding applications.
  • Get worry-free connections with this RoHS compliant fiber patch cable, safe for any environment.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$3.99
2-Year Adorama Protect$5.99
3-Year Adorama Protect$8.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the yellow color on this fiber patch cable?

The yellow color signifies that this is a single mode fiber optic cable. Single mode cables are designed to carry a single ray of light, which minimizes signal degradation over long distances.

What is the use of the Comprehensive 7m LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable?

This cable is used for high-speed data transmission in gigabit ethernet applications. It's ideal for connecting devices such as computers, routers, switches, and other networking equipment.

How does this cable support long-distance data transmission?

This cable is engineered with a 9/125 micron core, which is designed to transmit data over long distances with minimal signal loss. This makes it excellent for environments requiring high-speed internet connectivity over large areas.

What does '100% optically inspected and tested for insertion loss' mean?

This means that each cable is thoroughly checked and tested to ensure that there is minimal loss of signal when the cable is inserted into a device or network.

Why choose a Comprehensive product?

Comprehensive is a reputable brand known for producing high-quality, durable, and reliable products. Choosing a Comprehensive product means you're investing in a product that is designed to perform and last.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-SM-7M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Cable Length

    7m/22.96'

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm / 0.17 x 0.17 x 1.96"

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Weight

    1.2lbs / 0.54kg

  • UPC Code

    808447046311

About Comprehensive LC-SC-SM-7M

When you need a reliable solution for high-speed data transmission, look no further than the Comprehensive 7m/22.96' LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable. This high-quality, durable, and flexible fiber patch cable is designed to meet the demands of gigabit ethernet applications, ensuring seamless connectivity for your networking devices.

Crafted by Comprehensive, a reputable brand known for its superior products, this 7m LC to SC duplex single mode fiber patch cable is a testament to their commitment to quality. The cable is meticulously engineered with a 9/125 micron core, ideal for transmitting data over long distances without signal loss. This makes it an excellent choice for connecting devices that are far apart or for environments that require high-speed internet connectivity.

The yellow color of the cable is not just for aesthetics, but it also serves a functional purpose. It signifies that this is a single mode fiber optic cable, designed to carry a single ray of light, which minimizes signal degradation over long distances.

Each cable is 100% optically inspected and tested for insertion loss, ensuring that you receive a product that performs at its best. Whether you're connecting computers, routers, switches, or other networking equipment, this LC to SC duplex single mode fiber patch cable provides a reliable and affordable solution.

Incorporate the Comprehensive 7m LC Male to SC Male SM 9/125 Micron Duplex Single Mode Fiber Patch Cable into your network setup and experience the difference in speed, reliability, and performance.

Comprehensive LC-SC-SM-7M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.
