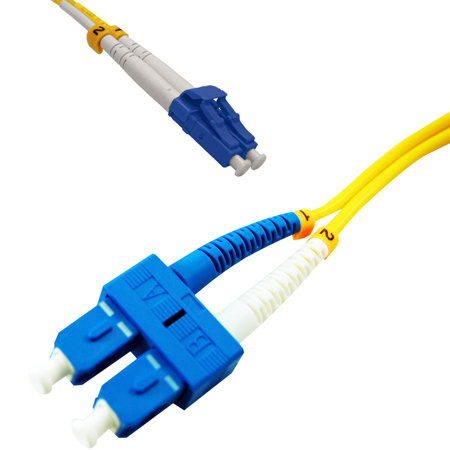

Comprehensive 328' (100m) LC Male to SC Male 9/125 Sm 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSCSMP100 MFR: LC-SC-SMP-100M
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 328-foot fiber optic patch cable.
  • Experience minimal signal loss with our high-quality LC to SC male connectors.
  • Built with durable plenum-rated jacket, this cable withstands demanding conditions.
  • This 9/125 single-mode duplex cable supports long-distance network connections.
  • Enjoy consistent performance with low attenuation at both 1310 nm and 1550 nm.
  • Invest in a dependable cable solution backed by Comprehensive's lifetime warranty.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-SC-SMP-100M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Length

    328' (100m)

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm (0.17 x 0.17 x 1.96")

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm (0.28 x 0.35 x 2.16")

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Weight

    3lbs (1.36kg)

  • UPC Code

    808447070354

About Comprehensive LC-SC-SMP-100M

With the Comprehensive LC-SC-SMP-100M, experience superior connectivity and performance with this high-quality Single-mode Plenum Patch Cable Assembly. This 328-foot (100m) LC Male to SC Male 9/125 Sm 3.0mm Duplex Plenum Patch Cable, encased in a vibrant yellow sheath, is meticulously designed to support Gigabit Ethernet applications, ensuring high-speed data transfer and reliable network connections.

Constructed with a 9/125 micron core, this cable guarantees optimal signal transmission, making it an ideal choice for high-bandwidth operations. Each cable is 100% optically inspected and rigorously tested for insertion loss, ensuring that every product meets the highest quality standards for maximum performance and longevity.

Whether you're setting up a professional network system or enhancing your home office setup, this LC to SC duplex patch cable offers a robust and efficient solution for your networking needs. Its plenum-rated jacket provides added safety, making it suitable for use in air handling spaces, adhering to strict fire safety regulations.

Incorporate the Comprehensive LC-SC-SMP-100M into your system and experience the difference in quality and performance that this superior Single-mode Plenum Patch Cable Assembly can provide.

Comprehensive LC-SC-SMP-100M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure reliable data transfer with this 328-foot fiber optic patch cable.
  • Experience minimal signal loss with our high-quality LC to SC male connectors.
  • Built with durable plenum-rated jacket, this cable withstands demanding conditions.
  • This 9/125 single-mode duplex cable supports long-distance network connections.
  • Enjoy consistent performance with low attenuation at both 1310 nm and 1550 nm.
  • Invest in a dependable cable solution backed by Comprehensive's lifetime warranty.

What's in the box:

  • Comprehensive 328' (100m) Plenum Patch Cable
  • Comprehensive Lifetime Limited Warranty
