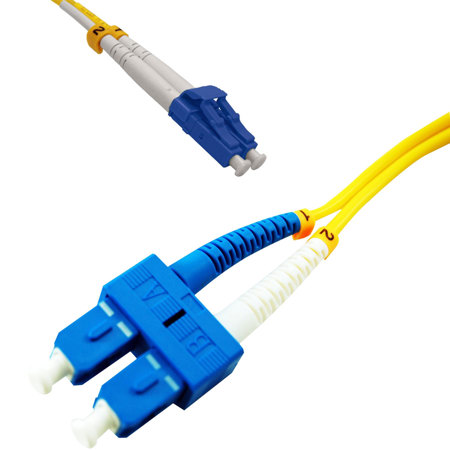

Comprehensive 492' (150m) LC Male to SC Male 9/125 SM 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSCSMP150 MFR: LC-SC-SMP-150M
Earn VIP Reward Points

Key Features

  • Ensure reliable data transmissions with this 492ft Single Mode Fiber Optic cable.
  • Experience superior connectivity using LC to SC connectors for optimal performance.
  • This plenum-rated fiber optic cable is perfect for in-wall installations, enhancing safety.
  • Enjoy long-lasting durability with a robust design tested for crush and impact resistance.
  • Minimize signal loss with our high-quality fiber optic cable, ensuring stable connections.
  • Benefit from a lifetime limited warranty, guaranteeing your satisfaction with this cable.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the yellow color of the Comprehensive LC-SC-SMP-150M cable signify?

The yellow color of this cable indicates that it is a single-mode fiber optic cable. Single-mode cables are typically used for long-distance transmission and offer a higher bandwidth compared to multimode fiber optic cables.

What are the benefits of the duplex design of this cable?

The duplex design of this cable allows for simultaneous, bidirectional data transfer. This makes it a flexible solution for complex networking setups where data needs to be sent and received at the same time.

What does it mean that the cable is plenum-rated?

A plenum-rated cable has a jacket that complies with fire safety standards. This makes it suitable for use in air plenums and other spaces where fire resistance is required.

What does the 100% optical inspection and testing for insertion loss guarantee?

The 100% optical inspection and testing for insertion loss means that every cable is thoroughly checked to ensure that every signal transmitted is as clear and stable as possible. This guarantees the reliability and quality of the cable.

Can this cable be used with any fiber optic device?

Yes, this cable has an LC male connector on one end and an SC male connector on the other, allowing it to connect devices with different fiber optic port types. However, both devices need to be compatible with single-mode fiber optic cables.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive LC-SC-SMP-150M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Length

    492' (150m)

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm (0.17 x 0.17 x 1.96")

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm (0.28 x 0.35 x 2.16")

  • Weight

    3.5lbs (1.58kg)

  • UPC Code

    808447070361

About Comprehensive LC-SC-SMP-150M

Why settle for anything less than the pinnacle of data transmission excellence The Comprehensive LC-SC-SMP-150M stands as a testament to superior connectivity, offering a robust and high-quality single-mode plenum patch cable assembly that is expertly engineered for the demands of Gigabit Ethernet applications.

Crafted with precision, this durable 492-foot (150-meter) cable boasts a 9/125 micron core, ensuring unparalleled performance for your networking needs. The yellow jacket not only signifies its single-mode capabilities, ideal for long-distance transmission with higher bandwidth, but also adds a layer of visibility for easy identification amidst a sea of cables.

Each end of this reliable cable is terminated with high-precision, ceramic ferrule LC and SC male connectors, providing a secure and stable connection between your fiber optic devices. The duplex design facilitates simultaneous, bidirectional data transfer, making it a flexible solution for complex networking setups.

The Comprehensive LC-SC-SMP-150M is not just about impressive technical specifications; it is also about peace of mind. Each cable undergoes a rigorous 100% optical inspection and is tested for insertion loss to guarantee that every signal is as clear and stable as possible.

Whether you're setting up a new network or upgrading an existing one, the Comprehensive LC-SC-SMP-150M patch cable is an affordable choice that does not compromise on quality or reliability. Its plenum-rated jacket ensures compliance with fire safety standards, making it suitable for use in air plenums and other spaces where fire resistance is required.

In the world of networking, where every millisecond counts, trust the Comprehensive LC-SC-SMP-150M to keep you connected with unwavering clarity and efficiency.

Comprehensive LC-SC-SMP-150M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure reliable data transmissions with this 492ft Single Mode Fiber Optic cable.
  • Experience superior connectivity using LC to SC connectors for optimal performance.
  • This plenum-rated fiber optic cable is perfect for in-wall installations, enhancing safety.
  • Enjoy long-lasting durability with a robust design tested for crush and impact resistance.
  • Minimize signal loss with our high-quality fiber optic cable, ensuring stable connections.
  • Benefit from a lifetime limited warranty, guaranteeing your satisfaction with this cable.

What's in the box:

  • Comprehensive 492' (150m) Plenum Patch Cable
  • Comprehensive Lifetime Limited Warranty
