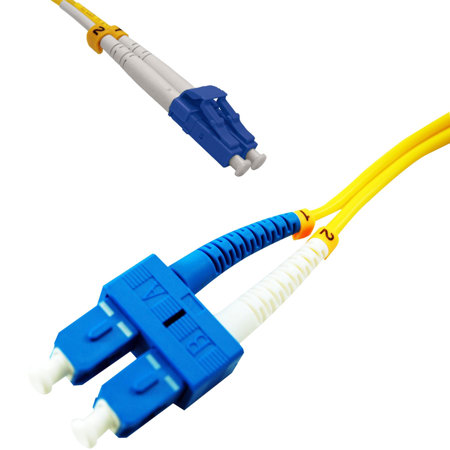

Comprehensive 656.16' (200m) LC Male to SC Male 9/125 Sm 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSCSMP200 MFR: LC-SC-SMP-200M
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this 656.16' fiber optic LC to SC plenum patch cable.
  • Experience minimal signal loss; typical connector loss is just 0.20 dB for optimal performance.
  • Built to last: this durable cable withstands 5,000 flex cycles and 1,000 impact cycles.
  • Plenum (OFNP) rated jacket ensures safety for in-wall installations; RoHS compliant.
  • This 200m Ethernet cable supports long-distance connections with consistent performance.
  • Get a lifetime limited warranty, guaranteeing quality and long-term reliability for your network.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-SC-SMP-200M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Length

    656.16' (200m)

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm (0.17 x 0.17 x 1.96")

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm (0.28 x 0.35 x 2.16")

  • Weight

    4lbs (1.81kg)

  • UPC Code

    808447070378

About Comprehensive LC-SC-SMP-200M

Let your network reach greater distances with the Comprehensive LC-SC-SMP-200M, a superior single-mode plenum patch cable assembly that ensures a durable and reliable connection for your telecommunications and networking needs. This 656.16-foot (200m) long cable is expertly crafted with high-quality 9/125 micron fiber, making it an ideal choice for Gigabit Ethernet applications and other high-speed data requirements.

The robust construction of this yellow cable signifies its single-mode fiber optic capabilities, which are specifically engineered for long-distance transmissions with minimal signal loss. The smaller core diameter of the single-mode fiber allows for a higher bandwidth to facilitate the rapid transfer of data over extended ranges, making it a go-to solution for expansive network setups.

Featuring a flexible yet sturdy 3.0mm jacket, the cable is designed to withstand the rigors of installation and handling, while its plenum-rated coating ensures compliance with fire safety codes for use in air plenums without compromising performance. The LC male to SC male connectors are precision-terminated to offer a secure and seamless connection between your devices, such as computers, routers, and switches.

Each cable is meticulously tested for insertion loss and is 100% optically inspected to guarantee that it meets the stringent standards for quality and performance that Comprehensive is known for. Whether you're setting up a new network or upgrading an existing one, the Comprehensive LC-SC-SMP-200M patch cable is a reliable, flexible, and affordable solution that will maintain the integrity of your data transmission over considerable distances.

Comprehensive LC-SC-SMP-200M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure reliable data transfer with this 656.16' fiber optic LC to SC plenum patch cable.
  • Experience minimal signal loss; typical connector loss is just 0.20 dB for optimal performance.
  • Built to last: this durable cable withstands 5,000 flex cycles and 1,000 impact cycles.
  • Plenum (OFNP) rated jacket ensures safety for in-wall installations; RoHS compliant.
  • This 200m Ethernet cable supports long-distance connections with consistent performance.
  • Get a lifetime limited warranty, guaranteeing quality and long-term reliability for your network.

What's in the box:

  • Comprehensive 656.16' (200m) Plenum Patch Cable
  • Comprehensive Lifetime Limited Warranty
