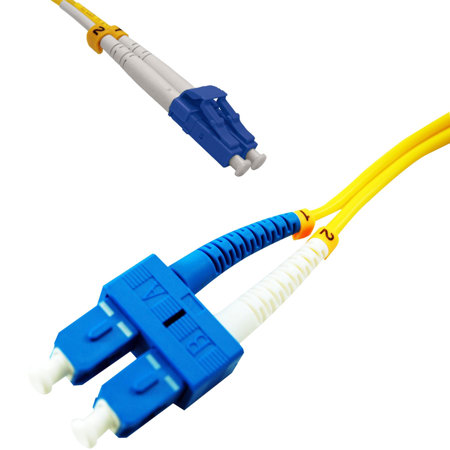

Comprehensive 98.42' LC TO SC 9/125 SM 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSCSMP30M MFR: LC-SC-SMP-30M
$126.39
$157.99
Save: $31.6 (20%)
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer with this 98.42' LC to SC single mode fiber optic cable.
  • Ensure reliable connections with durable construction and quality LC/SC connectors.
  • This plenum-rated fiber cable is perfect for in-wall installations, enhancing safety.
  • Enjoy optimal signal strength with low insertion loss for clear data transmission.
  • Our 3.0mm duplex patch cable offers flexibility for tight spaces and easy routing.
  • This yellow fiber optic cable supports long-distance connectivity with minimal attenuation.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-SC-SMP-30M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm / 0.17 x 0.17 x 1.96"

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Weight

    2.2lbs / 0.99kg

  • UPC Code

    808447070323

About Comprehensive LC-SC-SMP-30M

Where high-speed data transmission is a necessity, the Comprehensive 98.42' LC to SC 9/125 SM 3.0mm Duplex Plenum Patch Cable stands as a reliable solution. This high-quality, durable fiber optic patch cable is designed with LC/SC Duplex 9/125 Single Mode Fiber, ensuring optimal performance for your networking needs.

The yellow 9/125 micron cable is specifically engineered for gigabit Ethernet applications, providing a robust and efficient connection for your devices. With a length of 98.42 feet, this flexible cable offers ample reach for setting up your local area network (LAN).

The duplex design of this patch cable features two fibers, enabling simultaneous data transmission in both directions for enhanced efficiency. One end of the cable is equipped with an SC connector for device attachment, while the other end features an LC connector for linking to another fiber optic cable or device.

The 9/125 specification refers to the core and cladding diameter of the fiber optic cable, capable of transmitting data at impressive speeds of up to 1 Gbps (Gigabit per second). Each cable is 100% optically inspected and rigorously tested for insertion loss, ensuring you receive a reliable, high-performance product.

Choose the Comprehensive 98.42' LC to SC 9/125 SM 3.0mm Duplex Plenum Patch Cable for a dependable, high-quality solution to your networking and data transmission needs.

Comprehensive LC-SC-SMP-30M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.
