Comprehensive 246' (75m) LC to SC 9/125 Sm 3.0mm Duplex Plenum Patch Cable
See all Comprehensive items
20% Off

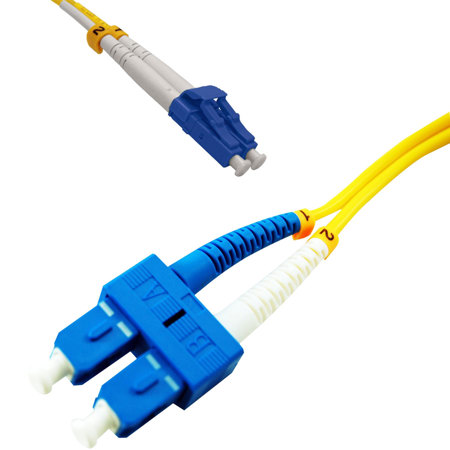

Comprehensive 246' (75m) LC Male to SC Male 9/125 Sm 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSCSMP75M MFR: LC-SC-SMP-75M
Be the first to review this itemAsk a Question
$192.79
$240.99
Save: $48.2 (20%)
Earn VIP Reward Points

Key Features

  • Ensure reliable connectivity with this 246' fiber optic patch cable for critical data transfers.
  • Experience superior durability with our plenum-rated fiber cable, designed to withstand demanding conditions.
  • This LC to SC single mode duplex cable provides optimal performance for high-speed network applications.
  • Enjoy a worry-free setup; our fiber optic cable boasts low insertion loss for maximum signal strength.
  • Our yellow jacketed fiber cable is easy to identify in complex setups, simplifying cable management.
  • Backed by a lifetime warranty, this premium fiber cable offers long-term reliability and peace of mind.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$14.99
2-Year Adorama Protect$24.99
3-Year Adorama Protect$34.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of applications is the Comprehensive LC-SC-SMP-75M patch cable suitable for?

The Comprehensive LC-SC-SMP-75M patch cable is suitable for Gigabit Ethernet applications, making it ideal for networking and telecommunications that require high-speed data transfer over long distances.

Can this cable be used for both indoor and outdoor installations?

This cable is designed with a plenum-rated jacket that is suitable for indoor installations, particularly in spaces that require adherence to strict fire codes. For outdoor use, it's important to check if the cable's specifications meet the environmental conditions of the installation site.

How do I identify this cable as a single-mode fiber optic cable?

The yellow color of the Comprehensive LC-SC-SMP-75M cable indicates that it is a single-mode fiber optic cable, which is standard in the industry for easy identification.

What does the 9/125 micron measurement refer to?

The 9/125 micron measurement refers to the core to cladding diameter of the fiber optic cable. The core is 9 microns in diameter, which is surrounded by a cladding of 125 microns. This size is typical for single-mode fiber optic cables, which are used for long-distance and high-bandwidth applications.

What is the significance of the cable being 100% optically inspected and tested for insertion loss?

The 100% optical inspection and testing for insertion loss ensures that each cable meets high standards of quality and performance. It verifies that the light signal's strength is not significantly diminished at connection points, ensuring optimal signal transmission.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-SC-SMP-75M Specifications

  • Connector 1

    LC Male

  • Connector 2

    SC Male

  • Length

    246' (75m)

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    4.5 x 4.5 x 50mm (0.17 x 0.17 x 1.96")

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm (0.28 x 0.35 x 2.16")

  • Weight

    2.75lbs (1.24kg)

  • UPC Code

    808447070347

About Comprehensive LC-SC-SMP-75M

When seeking a robust solution for long-distance network connections, look no further than the Comprehensive LC-SC-SMP-75M. This high-quality, single-mode plenum patch cable assembly is designed to deliver reliable and efficient performance for Gigabit Ethernet applications.

Boasting a length of 246 feet (75 meters), this durable fiber optic cable is ideal for connecting a wide range of devices, from computers and routers to switches and other networking equipment. The cable features a male LC connector on one end and a male SC connector on the other, ensuring easy and secure connections.

Crafted with a 9/125 micron core, this cable is specifically engineered for single-mode transmissions, making it an excellent choice for long-distance data transfer. The yellow color of the cable not only signifies its single-mode functionality but also aids in easy identification amidst a cluster of cables.

Each Comprehensive LC-SC-SMP-75M cable undergoes a rigorous 100% optical inspection and testing for insertion loss, ensuring you receive a product that meets the highest standards of quality and reliability.

Whether you're setting up a home network or managing a large-scale telecommunications system, this flexible and affordable Comprehensive LC-SC-SMP-75M fiber optic patch cable is a dependable choice for all your networking needs.

Comprehensive LC-SC-SMP-75M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable connectivity with this 246' fiber optic patch cable for critical data transfers.
  • Experience superior durability with our plenum-rated fiber cable, designed to withstand demanding conditions.
  • This LC to SC single mode duplex cable provides optimal performance for high-speed network applications.
  • Enjoy a worry-free setup; our fiber optic cable boasts low insertion loss for maximum signal strength.
  • Our yellow jacketed fiber cable is easy to identify in complex setups, simplifying cable management.
  • Backed by a lifetime warranty, this premium fiber cable offers long-term reliability and peace of mind.

What's in the box:

  • Comprehensive 246' (75m) Plenum Patch Cable
  • Comprehensive Lifetime Limited Warranty
