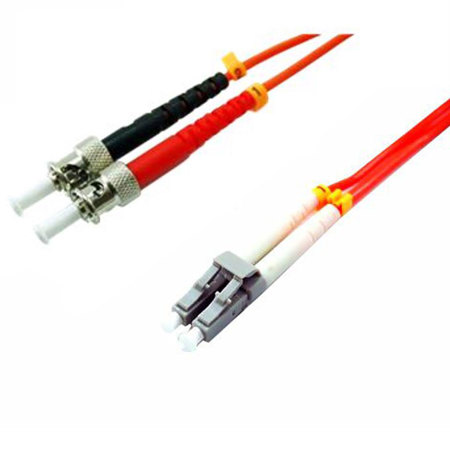

Comprehensive 1m LC Male to ST Male Duplex 62.5/125 Multimode Fiber Patch Cable

SKU: CVLCSTMM1M MFR: LC-ST-MM-1M
$23.19
$28.99
Save: $5.8 (20%)
Earn VIP Reward Points

Key Features

  • Ensure fast data transfer with this 1m LC to ST male duplex fiber patch cable.
  • Built for durability, this fiber cable features robust PVC jacket material.
  • This multimode fiber cable is perfect for short-distance, high-bandwidth applications.
  • Experience minimal signal loss with typical connector loss of just 0.20 dB.
  • Enjoy broad compatibility using this fiber cable in various network setups.
  • Get reliable performance from -20C to +80C with this durable fiber cable.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$3.99

3 Year

$4.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive LC-ST-MM-1M Specifications

  • Connector 1

    LC Male

  • Connector 2

    ST Male

  • Cable Length

    1m/3.28'

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)

  • ST Connector Dimensions (H x W x D)

    9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    0.3lbs / 0.14kg

  • UPC Code

    808447045710

About Comprehensive LC-ST-MM-1M

How can you enhance your data transmission capabilities The Comprehensive 1m/3.28' LC Male to ST Male Duplex 62.5/125 Multimode Fiber Patch Cable is your answer. Crafted from the highest quality materials, this durable and reliable fiber patch cable is designed to deliver superior performance in high-speed data transfer applications.

This flexible and affordable fiber optic cable features color-coded connectors for easy identification and convenience. The LC Male to ST Male configuration allows seamless connection between two devices that support fiber optic communication, ensuring efficient data transmission across your fiber optic network.

With its duplex design, this 62.5/125 micron cable is optimized for fast Ethernet, fibre channel, Infiniband, ATM, and gigabit Ethernet applications. This means it's perfectly suited for environments that demand high-speed data transfer and reliable connectivity.

Each Comprehensive 1m LC Male to ST Male Duplex 62.5/125 Multimode Fiber Patch Cable is meticulously inspected and tested for insertion loss, ensuring that you receive a product that meets the highest standards of quality and performance. The vibrant orange color of the cable not only adds a visual appeal but also aids in easy identification amidst a multitude of cables.

In a world where data is king, this high-quality, reliable, and efficient fiber patch cable is an essential tool for maintaining a robust and efficient fiber optic network.

Comprehensive LC-ST-MM-1M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure fast data transfer with this 1m LC to ST male duplex fiber patch cable.
  • Built for durability, this fiber cable features robust PVC jacket material.
  • This multimode fiber cable is perfect for short-distance, high-bandwidth applications.
  • Experience minimal signal loss with typical connector loss of just 0.20 dB.
  • Enjoy broad compatibility using this fiber cable in various network setups.
  • Get reliable performance from -20C to +80C with this durable fiber cable.
