20% Off

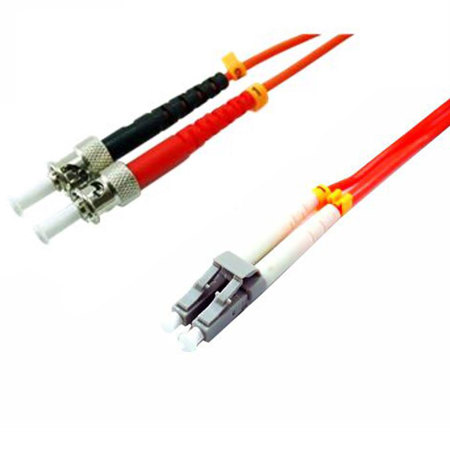

Comprehensive 246.06' (75m) LC Male to ST Male OM1 Multimode 3.0mm Duplex Patch Cable

SKU: CVLCSTMM75M MFR: LC-ST-MM-75M
$143.99
$179.99
Save: $36 (20%)
Earn VIP Reward Points

Key Features

  • Achieve reliable connections with this 246.06' Multimode Fiber Optic Patch Cable.
  • Ensure optimal data transfer with low signal loss using our premium LC to ST connectors.
  • Built for durability, this Ethernet cable withstands 5,000 flex cycles & tough conditions.
  • This OM1 fiber cable supports long-distance connections, perfect for large networks.
  • Experience consistent performance with a -25 dB typical return loss on this fiber cable.
  • Enjoy a lifetime limited warranty, ensuring quality & reliability for your network setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive 246.06' (75m) LC to ST OM1 Multimode 3.0mm Duplex Patch Cable Specifications

  • Connector 1

    LC Male

  • Connector 2

    ST Male

  • Length

    246.06' (75m)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20 to +80 deg.C / -4 to 176 deg.F

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    ST Connector: 9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    2.75lbs (1.24kg)

  • UPC Code

    808447069259

About Comprehensive 246.06' (75m) LC to ST OM1 Multimode 3.0mm Duplex Patch Cable

Bring efficiency and high performance to your network with the Comprehensive LC-ST-MM-75M, a 246.06' (75m) LC Male to ST Male OM1 Multimode 3.0mm Duplex Patch Cable. Expertly engineered for high-speed data transfer, this robust cable is an essential component for fast Ethernet, fiber channel, Infiniband, ATM, and gigabit Ethernet applications.

Crafted from the finest quality materials, the cable boasts a durable and flexible construction that stands up to the rigors of frequent use. Its 62.5/125 micron diameter ensures optimal data transmission with a bandwidth capable of supporting up to 1 Gbps, making it a reliable choice for complex networking setups.

The vibrant orange jacket not only provides visibility but also signifies OM1 standard compliance, simplifying cable management and identification in crowded system environments. The color-coded connectors further enhance convenience, allowing for quick and error-free connections between devices.

Each cable is meticulously tested for insertion loss and is 100% optically inspected, guaranteeing that your data flows seamlessly and efficiently from end to end. With its duplex design, the Comprehensive LC-ST-MM-75M facilitates simultaneous, bidirectional data transmission, optimizing network performance and reducing latency.

Choose the Comprehensive LC-ST-MM-75M for a high-quality, affordable solution that ensures a reliable and flexible connection in your data-intensive applications. Whether you're connecting computers, routers, switches, or any other networking equipment, this multimode fiber optic patch cable is designed to deliver superior results and long-lasting functionality.

Comprehensive 246.06' (75m) LC to ST OM1 Multimode 3.0mm Duplex Patch Cable Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Achieve reliable connections with this 246.06' Multimode Fiber Optic Patch Cable.
  • Ensure optimal data transfer with low signal loss using our premium LC to ST connectors.
  • Built for durability, this Ethernet cable withstands 5,000 flex cycles & tough conditions.
  • This OM1 fiber cable supports long-distance connections, perfect for large networks.
  • Experience consistent performance with a -25 dB typical return loss on this fiber cable.
  • Enjoy a lifetime limited warranty, ensuring quality & reliability for your network setup.

What's in the box:

  • Comprehensive 246.06' (75m) Duplex Patch Cable
  • Comprehensive Lifetime Limited Warranty
