20% Off

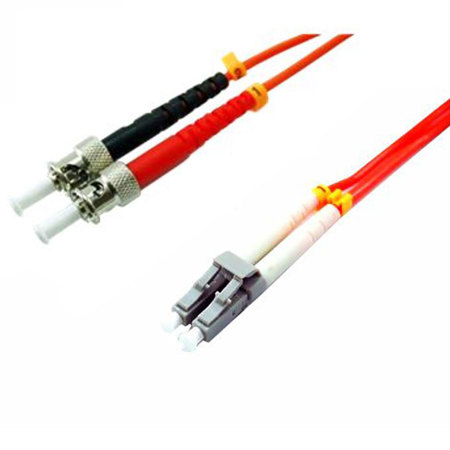

Comprehensive 246.06' (75m) LC Male to ST Male OM1 MM 3.0mm Duplex Plenum Patch Cable

SKU: CVLCSTMMP75M MFR: LC-ST-MMP-75M
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer with this 75m OM1 Multimode Fiber Optic cable.
  • This LC to ST duplex plenum patch cable ensures reliable network connections.
  • Built for durability, this Ethernet cable withstands 5,000 flex cycles.
  • Minimize signal loss; typical connector loss is just 0.20dB with this cable.
  • The 3.0mm cable jacket provides robust protection for long-term performance.
  • Enjoy a lifetime limited warranty on this high-quality Comprehensive patch cable.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive 246.06' (75m) LC to ST OM1 MM 3.0mm Duplex Plenum Patch Cable Specifications

  • Connector 1

    LC Male

  • Connector 2

    ST Male

  • Cable Length

    246.06' (75m)

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Bend Radius

    Minimum 3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20 to +80 deg.C / -4 to 176 deg.F

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    LC Connector: 10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)
    ST Connector: 9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    2.75lbs (1.24kg)

  • UPC Code

    808447069495

About Comprehensive 246.06' (75m) LC to ST OM1 MM 3.0mm Duplex Plenum Patch Cable

Just when you thought data transmission couldn't get any better, the Comprehensive LC-ST-MMP-75M steps in. This 246.06' (75m) LC Male to ST Male OM1 Multimode 3.0mm Duplex Patch Cable is a testament to superior craftsmanship and cutting-edge technology. Crafted from the finest quality materials, this high-performance cable is designed to facilitate reliable and high-speed data transfer.

The LC-ST-MMP-75M is a duplex patch cable, meaning it boasts two separate fibers for transmitting and receiving data. This design not only enhances data transfer speed but also ensures a reliable connection, making it an ideal choice for demanding networking environments.

Featuring color-coded connectors, this cable simplifies the installation process, saving you time and effort. The male LC connector on one end and the male ST connector on the other end make it compatible with a wide range of devices, enhancing its versatility.

The vibrant orange color of the cable signifies its optical fiber nature. This 62.5/125 micron cable utilizes light to transmit data, ensuring minimal signal loss and maximum efficiency. It's specifically designed for high-speed applications such as Fast Ethernet, Fibre Channel, Infiniband, ATM, and Gigabit Ethernet.

Every LC-ST-MMP-75M cable is 100% optically inspected and tested for insertion loss, ensuring you receive a product that meets the highest standards of quality and performance. Whether you're setting up a home network or managing a large-scale data center, this durable, flexible, and affordable cable is a reliable solution for all your data transmission needs.

Comprehensive 246.06' (75m) LC to ST OM1 MM 3.0mm Duplex Plenum Patch Cable Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm
  • 100% Optically Inspected and Tested

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience rapid data transfer with this 75m OM1 Multimode Fiber Optic cable.
  • This LC to ST duplex plenum patch cable ensures reliable network connections.
  • Built for durability, this Ethernet cable withstands 5,000 flex cycles.
  • Minimize signal loss; typical connector loss is just 0.20dB with this cable.
  • The 3.0mm cable jacket provides robust protection for long-term performance.
  • Enjoy a lifetime limited warranty on this high-quality Comprehensive patch cable.

What's in the box:

  • Comprehensive 246.06' (75m) Duplex Plenum Patch Cable
  • Comprehensive Lifetime Limited Warranty
