Comprehensive 15m 10Gb LC Male/ST Male Duplex Fiber Patch Cable, Aqua
See all Comprehensive items
20% Off

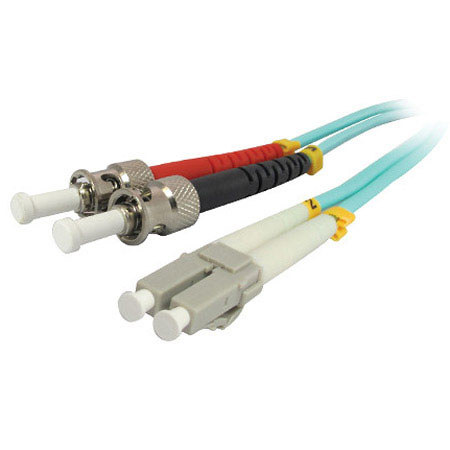

Comprehensive 15m 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable, Aqua

SKU: CVLCSTOM315M MFR: LC-ST-OM3-15M
Be the first to review this itemAsk a Question
$90.39
$112.99
Save: $22.6 (20%)
Earn VIP Reward Points

Key Features

  • Experience reliable 10Gb data transfer with this 15m LC to ST Multimode Fiber Patch Cable.
  • Ensure optimal connectivity in your network with our high-performance fiber optic cable.
  • Built for durability, this aqua-colored fiber cable withstands rigorous use and bending.
  • Minimize signal loss with a maximum connector loss of just 0.30 dB for superior performance.
  • This RoHS compliant fiber patch cable supports operating temperatures from -20C to +80C.
  • Enjoy a strong, stable connection with this 50/125 Multimode Fiber Cable, perfect for demanding applications.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$5.99
2-Year Adorama Protect$8.99
3-Year Adorama Protect$15.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does 'laser-optimized multimode fiber' mean?

Laser-optimized multimode fiber (LOMMF) refers to a type of multimode fiber that is specifically designed to work with laser light sources, such as Vertical-Cavity Surface-Emitting Lasers (VCSELs). It provides improved performance for high-speed data transmission over longer distances compared to standard multimode fibers.

Can this fiber patch cable be used for both 10Gb and lower-speed networks?

Yes, this fiber patch cable is backward compatible with existing 50/125 equipment, meaning it can be used for 10 Gigabit applications as well as lower-speed networks, providing versatility in various networking setups.

What is the significance of the aqua-colored jacket on this cable?

The aqua-colored jacket typically indicates that the cable is a type of multimode fiber suitable for 10 Gigabit applications. Additionally, the color coding helps in identifying the cable type in dense networking environments.

What does 'OFNR-rated' signify for the cable's jacket?

OFNR-rated stands for Optical Fiber Nonconductive Riser. This rating indicates that the cable's jacket is designed to prevent the spread of flames if burning occurs, making it suitable for vertical runs in riser applications.

How does a duplex fiber optic cable differ from a single-mode cable?

A duplex fiber optic cable contains two fibers for simultaneous two-way data transmission, making it ideal for high-speed networks. Single-mode cables, on the other hand, are designed for long-distance, high-bandwidth transmissions using a single light wave and are typically used in telecommunications.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-ST-OM3-15M Specifications

  • Connector 1

    LC Male

  • Connector 2

    ST Male

  • Cable Length

    15m/49.21'

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)

  • ST Connector Dimensions (H x W x D)

    9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    0.62lbs / 0.28kg

  • UPC Code

    808447068795

About Comprehensive LC-ST-OM3-15M

It's time to elevate your Ethernet networking with the Comprehensive 15m/49.21' 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable. This high-quality, durable, and reliable cable is designed with laser-optimized multimode fiber (LOMMF) technology, ensuring superior performance and compatibility with your existing 50/125 equipment.

Engineered to support laser light sources and 10 Gigabit applications, this flexible fiber patch cable offers the performance headroom you need for efficient data transfer. With its Optical Multimode 3 (OM3) fiber, it supports a 2000 MHz/km Effective Modal Bandwidth (EMB) at 850nm, facilitating 10 Gigabit transfers up to 300 meters when using an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) source.

The cable features a male LC connector on one end and a male ST connector on the other, making it ideal for connecting a wide range of devices, including computers, routers, switches, and other networking equipment. Encased in an aqua-colored, PVC (OFNR-rated) jacket, this cable is not only visually distinctive but also designed to withstand the rigors of everyday use.

Choose the Comprehensive 15m/49.21' 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable for a reliable, affordable, and high-performance solution to your networking needs.

Comprehensive LC-ST-OM3-15M Features

  • 10-Gigabit application support
  • Duplex cable is joined together in a zipcord style for easy separation
  • A Laser-Optimized 50-um core and 125-um cladding
  • Use with both LED and VCSEL laser light sources
  • Ceramic ferrules for long-lasting reliability and precision alignment
  • Used to connect patch panels and/or network devices that require 50/125 multimode cabling
  • Optical Multimode 3 (OM3) fiber supporting 2000 MHz.km EMB at 850 nm
  • OFNR jacket complies with stringent building codes

Warranty Information

This product has a limited lifetime warranty.
