Comprehensive 3m 10Gb LC Male/ST Male Duplex Fiber Patch Cable, Aqua
See all Comprehensive items
Just Reduced

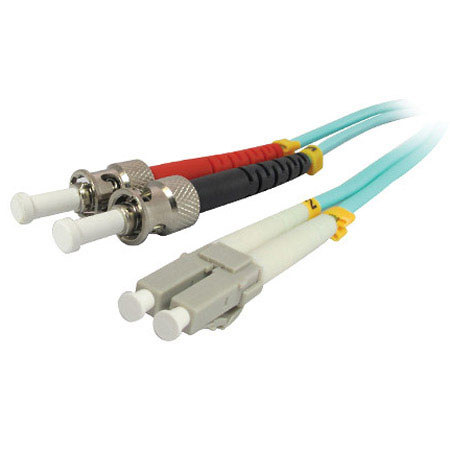

Comprehensive 3M 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable, Aqua

SKU: CVLCSTOM33M MFR: LC-ST-OM3-3M
Be the first to review this itemAsk a Question
$42.39
$52.99
Save: $10.6 (20%)
Earn VIP Reward Points

Key Features

  • Experience fast data transfer with this 3M fiber patch cable for reliable connections.
  • Ensure a durable construction with PVC buffer material, designed for long-term use.
  • This 9.84' LC to ST fiber cable is perfect for connecting devices over short distances.
  • Minimize signal loss with connectors that feature a maximum loss of only 0.30 dB.
  • Enjoy a secure connection with this Comprehensive cable, boasting excellent return loss.
  • Rely on this multimode fiber patch cable for operating temperatures from -20C to +80C.
See More Product Details
Temporarily On Backorder?Expected Availability: 12/2025Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$3.99
2-Year Adorama Protect$5.99
3-Year Adorama Protect$8.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the aqua color of the Comprehensive 3m/9.84' 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable signify?

The aqua color of this fiber patch cable indicates that it is a multimode fiber optic cable, which is typically used for short-distance data transmission.

What are the LC Male and ST Male connectors used for?

The LC Male and ST Male connectors are used to connect the cable to devices or patch panels securely and easily. The LC connector is usually connected to another device or a patch panel, while the ST connector is used to connect the cable to a device.

What does OFNR-rated mean?

OFNR stands for Optical Fiber Nonconductive Riser. An OFNR-rated cable is designed to prevent the spread of fire to other floors through riser spaces. This rating indicates that the cable's jacket is made of fire-resistant material and is compliant with specific safety standards.

What is the benefit of a laser-optimized multimode fiber (LOMMF)?

A laser-optimized multimode fiber (LOMMF) cable is designed to handle the high-speed data transfer required by laser light sources and 10 Gigabit applications. It also provides backward compatibility with existing 50/125 equipment, making it a versatile choice for networking needs.

What does the 50/125 in the product's name mean?

The 50/125 in the product's name refers to the diameter of the fiber core and the cladding (the layer around the core), respectively. It's measured in micrometers. In this case, the core has a diameter of 50 micrometers, and the cladding has a diameter of 125 micrometers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive LC-ST-OM3-3M Specifications

  • Connector 1

    LC Male

  • Connector 2

    ST Male

  • Cable Length

    3m/9.84'

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • LC Connector Dimensions (H x W x D)

    10.75 x 12.5 x 50mm / 0.42 x 0.49 x 1.96" (with installed duplex clip)

  • ST Connector Dimensions (H x W x D)

    9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    0.14lbs / 0.06kg

  • UPC Code

    808447068757

About Comprehensive LC-ST-OM3-3M

Because high-speed, reliable data transfer is crucial in today's digital world, the Comprehensive 3m/9.84' 10Gb LC Male/ST Male Duplex 50/125 Multimode Fiber Patch Cable is designed to meet and exceed these demands. This laser-optimized multimode fiber (LOMMF) cable is not only backward compatible with existing 50/125 equipment but also offers the performance headroom required to support advanced laser light sources and 10 Gigabit applications.

Constructed with Optical Multimode 3 (OM3) fiber, this high-quality cable supports an effective modal bandwidth (EMB) of 2000 MHz/km at 850nm. This means it can facilitate 10 Gigabit data transfers up to a distance of 300 meters when using an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) source.

Featuring a durable and flexible PVC jacket in a distinctive aqua color, this fiber patch cable is OFNR-rated, indicating its compliance with optical fiber nonconductive riser standards. The LC Male connector at one end and the ST Male connector at the other end ensure easy and secure connections to your devices or patch panels.

Whether you're setting up a home network or managing a large-scale data center, this Comprehensive Duplex Multimode Fiber Patch Cable is an affordable and reliable choice for your networking needs.

Comprehensive LC-ST-OM3-3M Features

  • 10-Gigabit application support
  • Duplex cable is joined together in a zipcord style for easy separation
  • A Laser-Optimized 50-um core and 125-um cladding
  • Use with both LED and VCSEL laser light sources
  • Ceramic ferrules for long-lasting reliability and precision alignment
  • Used to connect patch panels and/or network devices that require 50/125 multimode cabling
  • Optical Multimode 3 (OM3) fiber supporting 2000 MHz.km EMB at 850 nm
  • OFNR jacket complies with stringent building codes
