Comprehensive MicroFlex Active Pro AV/IT 18G HDMI to HDMI Cable, 35', Jet Black Specifications

Performance & Resolution

Performance & Resolution

Jump to...
  • 3D Ready

    Yes

  • Audio Formats Supported

    Dolby True HD, DTS-HD Master Audio and up to 32 audio channels

  • Audio Return Channel

    Yes

  • Chroma Sampling

    4K 60hz 444

  • Color Bit Depth

    8 Bit

  • Data Speed

    Up to 18 Gbps

  • Ethernet Capability

    Yes

  • HDCP Compliant

    Yes

  • CEC Compliant

    Yes

  • HDMI ATC Certified

    No

  • Max Distance

    Up to 35'

  • Resolution and Refresh Rate

    Up to 4K@60fps and 8 Bit Color Space

  • Performance Grade

    Best/Commercial Grade

  • Signal Technology Versions

    HDMI 2.0

Connections

Jump to...
  • Connector Side 1

    HDMI Male 19 Pin Type A

  • Connector Side 2

    HDMI Male 19 Pin Type A

Environmental

Jump to...
  • Temperature Rating

    176 Degree F (80 Degree C)

  • DC Resistance

    at 20 Degree C MAX 30AWG: 347Ohm/km; 32AWG: 542Ohm/km; 28AWG: 218Ohm/km

  • Insulation Resistance

    Min 100 mega ohms -10m at 20 Degree C

  • Nominal Attenuation

    300KHz - 1GHz (12dB); 1GHz - 3GHz (12dB-22dB); 3GHz - 4.125GHz (22dB-42dB); 4.125GHz - 6GHz (42B-52dB)

  • Skew

    Intra pair Max 160ps/cable
    Inter pair Max 1.78ns/cable

  • Voltage

    30V

Regulatory

Jump to...
  • ATC Certification

    No

  • CE

    No

  • CL3 Rated

    Yes

  • Prop 65 Compliant

    Yes

  • Rohs Compliant

    Yes

  • UL

    Yes

Physical

Jump to...
  • Bend Radius

    0

  • Conductors

    19 pins

  • Color

    Jet Black

  • Connector Finish

    24k Gold Plated

  • Directional

    Yes

  • Gauge (AWG)

    Up to 20': 30awg, 25': 30/32 awg, 35': 28/32 awg

  • Jacket Type

    Xtra-Flex PVC

  • Shielding

    Triple Shielded, Inner 100% Aluminum Mylar Wrap, Outer 100% Aluminum Mylar Wrap, 85% Tinned Copper Braid

  • Dimensions

    Length: 35' (10.67m)
    Cable Outer Diameter: 0.26" (6.5mm)

  • UPC Code

    808447081572

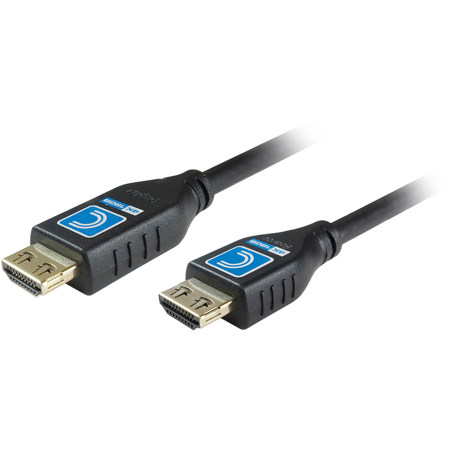

About Comprehensive MicroFlex Active Pro AV/IT 18G HDMI to HDMI Cable, 35', Jet Black

Smaller, Slimmer O.D. Delivers 4K60 18G End to End Performance for Easy Cable Runs
Comprehensive's Active MicroFlex Pro AV/IT 18G HDMI Extended Length Cables are the perfect long run cable solution for classrooms, conference rooms, huddle spaces, houses of worship, digital signage and other commercial applications.

These cables feature Active chip technology which provides data speeds of up to 18 Gigabits from end to end but in a smaller, thinner diameter than traditional HDMI cables. Typically, the longer the distance, the heavier and thicker the cable but MicroFlex Pro AV/IT Extended Length cables maintain a lower profile and smaller diameter which makes them much less cumbersome, while making your installation faster and easier at the same time.

The World's Only Commercial 18G HDMI Cable Built for Systems Integration
Comprehensive's MicroFlex Pro AV/IT Certified 4K60 18G High Speed HDMI cables were designed specifically for the tight spaces encountered by commercial and residential system integrators as well as technology professionals in education, corporate, government, houses of worship and other demanding commercial environments.

Ultra-Flexible with up to 40% Smaller O.D. than Traditional HDMI Cables
MicroFlex cables are perfect for the systems integrator and technology professional as they have a zero bend radius and a small outer diameter that is up to 40% smaller than traditional HDMI cables. This makes MicroFlex cables much easier to work with and perfect for the demanding applications and environments of commercial (and residential) systems integration.

Full Ultra HD 4K@60hz 18G Performance with Ethernet
MicroFlex Pro AV/IT Certified 18G 4K High Speed HDMI cables come equipped with all the latest HDMI 4K features including Ultra HD 4K@60Hz 4:4:4 Chroma sampling and fast 18Gbps bandwidth rating (end to end), transmission of High Dynamic Range (HDR) video, Ethernet, Deep Color, up to 32 audio channels with ARC and support for wide angle theatrical 21:9 aspect ratio.

ProGrip Connector Ensures Cables Always Stay Connected
A long time problem of HDMI connectors is that they can easily become loose or be disconnected by accident. But Comprehensive's exclusive ProGrip connector solved that problem and secures the connection with up to 16lbs of retention force to prevent cables from being unintentionally disconnected and un-wanted service calls!

SureLength Indicators Make Staging Cables Easy
Comprehensive's SureLength cable length indicators that clearly indicate the length of each cable on the connector mold - huge time savers for integrators and installers who are constantly sorting out lengths preparing for jobs!

Commercial Construction and Worry-Free Lifetime Warranty
Comprehensive's MicroFlex HDMI Cables are true commercial construction. Our stress-reducing molded strain relief and ultra-flexible jacket ensure thousands of connections and provide unsurpassed durability. Triple professional grade shielding provide superior rejection of EM and RF interference. And strict multi-level ISO quality control testing ensures a lifetime of worry-free use for integrators and technology professionals alike.

The Pro's Connectivity Since 1974
Since 1974, Comprehensive Pro AV/IT Series Cables have been trusted by Pro AV and I.T. systems integrators because of their legendary reliability, performance and value. That's why they have been the "go to" cable worldwide for boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications. Pro AV/IT Series Cables are also perfect for anyone looking for premium quality connectivity at great price.

Active HDMI cables may not be fully compatible with some Apple adapters. An Apple adapter may not supply the sufficient voltage for the chipset in an active cable and it also may prevent bi-directional HDCP communication between source and display. Please use our passive HDMI cables for applications where an Apple adapter may be used.

Note: MicroFlex lengths of 12ft and above are active and directional and the display end of the connector is slightly longer than the source connector.

Comprehensive MicroFlex Active Pro AV/IT 18G HDMI to HDMI Cable, 35', Jet Black Features

  • Designed Specifically For Systems Integrators and Technology Professionals
  • Smaller, thinner diameter makes this cable much easier to run
  • Active Chip Technology ensures End to End 18Gbps (4K@60 4:4:4) performance up to 35'
  • UltraHD 4K@60 4:4:4 Deep Color Sampling (4096x2160p)
  • ProGrip connector utilizes up to 16lbs of retention force to help keep connector in place
  • SureLength indicators on the connector heads make it easy to organize for installations
  • Ultra-flexible, low bend radius, with micro connector head-perfect for tight spaces
  • Available in multiple colors for easy cable identification
  • Ethernet Capable
  • Supports Deep Color and x.v.Color
  • Supports High Dynamic Range (HDR)
  • Simultaneous delivery of dual video streams to multiple users on the same screen
  • 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
  • Supports CEC Extension commands and functions, HDMI Ethernet channel, and ARC features
  • Up to 32 audio channels (LPCM) and 21:9 aspect ratio
  • Multi-Stream Audio (up to 4)
  • Molded 24k Gold Plated HDMI male connectors on each end
  • RoHS Certified and UL Rated
  • Available in lengths up to 35'

Key Features

  • Designed Specifically For Systems Integrators and Technology Professionals
  • Smaller, thinner diameter makes this cable much easier to run
  • Active Chip Technology ensures End to End 18Gbps (4K@60 4:4:4) performance up to 35'
  • UltraHD 4K@60 4:4:4 Deep Color Sampling (4096x2160p)
  • ProGrip connector utilizes up to 16lbs of retention force to help keep connector in place
  • SureLength indicators on the connector heads make it easy to organize for installations

What's in the box:

  • MicroFlex Active Pro AV/IT 18G HDMI to HDMI Cable with ProGrip (35')
  • Comprehensive Lifetime Limited Warranty
