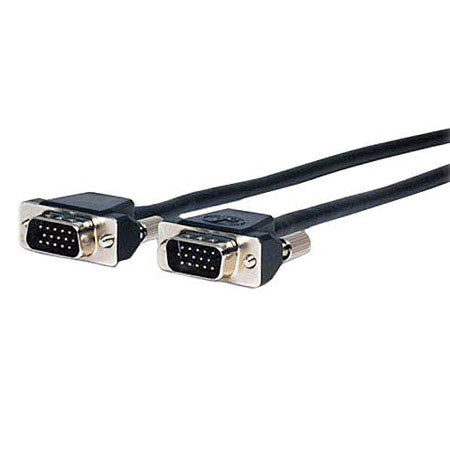

Comprehensive 6' Pro AV/IT Series Micro VGA HD15 Plug to Plug Cable

SKU: CVMVGA15PP6H

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive MVGA15P-P-6HR Specifications

  • Connector Type 1

    HD15 Male

  • Connector Type 2

    HD15 Male

  • Resolution

    2048x1536

  • Gauge

    32AWG

  • Center Conductor

    Tinned Copper

  • Connector Finish

    Nickel

  • Shielding

    Triple Shielded, Inner 95% Tinned Copper Wrap and 100% Aluminum Mylar, Outer 85% Tinned Copper Braid

  • UL Rated

    Yes

  • Ferrite Cores

    No

  • RoHS Compliant

    Yes

  • Cable outer diameter

    0.20" (5.08mm)

  • Jacket Type

    Xtra-Flex PVC

  • Temperature Rating

    80 deg C

  • Voltage

    30V

  • Cable Length

    6' / 1.83m

  • Weight

    1lbs / 0.45kg

  • UPC Code

    808447012125

About Comprehensive MVGA15P-P-6HR

Comprehensive 6' Pro AV/IT Series Micro VGA HD15 Plug to Plug Cable provides legendary reliability, performance and value. This cable is used as "go to" cable worldwide for boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications.

Comprehensive Pro AV/IT Series Micro HD15 VGA cable is perfect for those tight spaces where a full size HD15 connector would be too large. These micro HD15 male to female cables are true high resolution construction with three individually 95% shielded coaxes for maximum signal transfer and high resolution video and graphics. The entire cable is then 100% shielded with a foil shield to eliminate EM and RF interference, even over long distances. Comprehensive goes the extra mile with machined pins which ensures the strength of each pin, to make sure they do not bend or break as imitation cable often do. Comprehensive Pro AV/IT Series cable provide thousands of connections and a lifetime of worry free use. Five True 75 Ohm impedance matched BNC connectors provide breakout of the component signal. UL and RoHS compliant.

Comprehensive MVGA15P-P-6HR Features

  • Micro HD15 Male to HD15 Male
  • Designed to support high-resolution imaging up to QXGA 2048x1536
  • 3 individually 95% tinned copper braid shielded coaxes
  • 100% aluminum foil shield wrap provides extra coverage
  • Micro molded design for easy connecting in tight spaces
  • Molded strain relief for unsurpassed durability
  • X-traflex jacket for easy installation
  • UL and RoHS Compliant

Key Features

  • Micro HD15 Male to HD15 Male
  • Designed to support high-resolution imaging up to QXGA 2048x1536
  • 3 individually 95% tinned copper braid shielded coaxes
  • 100% aluminum foil shield wrap provides extra coverage
  • Micro molded design for easy connecting in tight spaces
  • Molded strain relief for unsurpassed durability
