Comprehensive 32.80' SC MM Duplex 62.5/125 Multimode Patch Cable
See all Comprehensive items

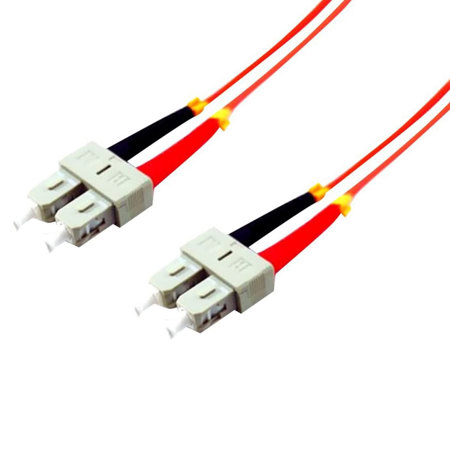

Comprehensive 32.80' SC MM Duplex 62.5/125 Multimode Patch Cable

SKU: CVSCSCMM10M

This item is no longer available.

Recommended Alternatives

Comprehensive : Picture 1 regular
Comprehensive 75m/246.06' ST to ST OM1 MM 3.0mm Duplex Plenum Patch Cable
$49.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive SC-SC-MM-10M Specifications

  • Connector 1

    SC Male

  • Connector 2

    SC Male

  • Optical Multimode 1 (OM1) fiber supports

    200/500 MHz.km OFL at 850/1300 nm

  • RoHS Compliant

    Yes

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • SC Connector Dimensions (H x W x D)

    10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    1.5lbs / 0.68kg

  • UPC Code

    808447045604

About Comprehensive SC-SC-MM-10M

Comprehensive 32.80' SC MM Duplex 62.5/125 Multimode Patch Cable Assemblies made of the finest quality materials. Color coded connectors for convenience. SC/SC Duplex 62.5/125 Multimode Fiber Patch Cable - Orange 62.5/125 micron cable for fast ethernet, fibre channel, Infiniband, ATM and gigabit ethernet applications that require high speed data transfer. This cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-SC-MM-10M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected & Tested
