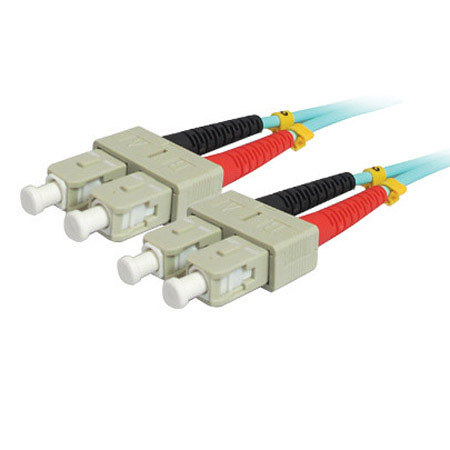

Comprehensive 16.40' 10gb SC/SC Duplex 50/125 Multimode Fiber Patch Cable, Aqua
See all Comprehensive items

Comprehensive 16.40' 10gb SC/SC Duplex 50/125 Multimode Fiber Patch Cable, Aqua

SKU: CVSCSCOM35M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive LC-LC-OM3-10M: Picture 1 regular
Comprehensive 32.8' 10Gb LC/LC Duplex 50/125 Multimode Fiber Patch Cable, Aqua
$67.99$54.39
Comprehensive LC-LC-OM3-15M: Picture 1 regular
Comprehensive 49.2' 10Gb LC/LC Duplex 50/125 Multimode Fiber Patch Cable, Aqua
$90.99$72.79
Comprehensive LC-LC-OM3-1M: Picture 1 regular
Comprehensive 0.45' 10Gb LC/LC Duplex 50/125 Multimode Fiber Patch Cable, Aqua
$39.99$31.99
Comprehensive LC-LC-SM-5M: Picture 1 regular
Comprehensive 16.4' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$67.99$54.39
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive SC-SC-OM3-5M Specifications

  • Connector 1

    SC Male

  • Connector 2

    SC Male

  • Optical Multimode 3 (OM3) fiber supports

    2000 MHz.km EMB at 850 nm

  • RoHS Compliant

    Yes

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • SC Connector Dimensions (H x W x D)

    10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)

  • Weight

    0.22lbs / 0.1kg

  • UPC Code

    808447068603

About Comprehensive SC-SC-OM3-5M

Comprehensive 16.40' 10gb SC/SC Duplex 50/125 Multimode Fiber Patch Cable provides backward compatibility with existing 50/125 equipment while providing the performance headroom required to support laser light sources and 10 Gigabit applications. Optical Multimode 3 (OM3) fiber supports 2000 MHz/km EMB at 850nm and provides 10 Gigabit transfers up to 300 meters using an 850nm VCSEL source. The Aqua colored jacket is PVC (OFNR-rated).

Comprehensive SC-SC-OM3-5M Features

  • 10-Gigabit application support
  • Duplex cable is joined together in a zipcord style for easy separation
  • A Laser-Optimized 50-um core and 125-um cladding
  • Use with both LED and VCSEL laser light sources
  • Ceramic ferrules for long-lasting reliability and precision alignment
  • Used to connect patch panels and/or network devices that require 50/125 multimode cabling
  • OFNR jacket complies with stringent building codes
