Comprehensive 16.4' SC SM 9/125 Micron Duplex Fiber Optic Patch Cable
See all Comprehensive items

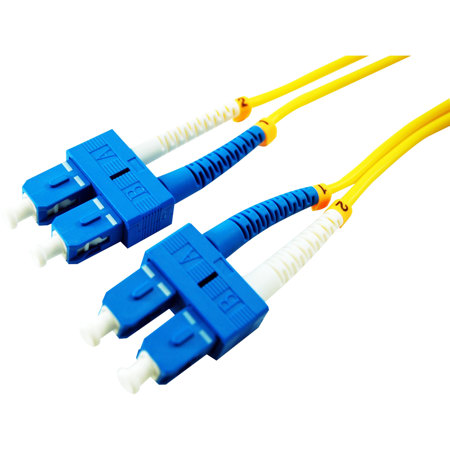

Comprehensive 16.4' SC SM 9/125 Micron Duplex Single Mode Fiber Optic Patch Cable

SKU: CVSCSCSM5M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive LC-LC-SM-15M: Picture 1 regular
Comprehensive 49.2' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$84.99$67.99
Comprehensive LC-LC-SM-2M: Picture 1 regular
Comprehensive 6.5' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$61.99$49.59
Comprehensive LC-LC-SM-5M: Picture 1 regular
Comprehensive 16.4' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$67.99$54.39
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive SC-SC-SM-5M Specifications

  • Connector 1

    SC Male

  • Connector 2

    SC Male

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0 mm

  • Installation Tensile Load

    100 N (445lbs)

  • Long-Term Tensile Load

    50 N (222lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Min. Bend Radius

    5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm / 1.2"

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Weight

    1lbs / 0.45kg

  • UPC Code

    808447046069

About Comprehensive SC-SC-SM-5M

Comprehensive 16.4' SC SM 9/125 Micron Duplex Single Mode Cable is a high Quality Single-mode Patch Cable Assemblies. SC/SC Duplex 9/125 Single Mode Fiber Patch Cable - Yellow 9/125 micron Cable for gigabit ethernet applications. This Cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-SC-SM-5M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected and Tested

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected & Tested
