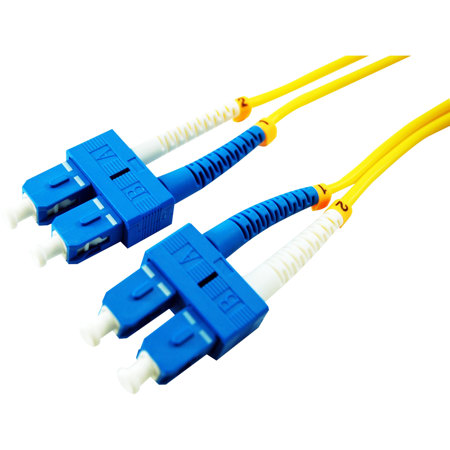

Comprehensive 23' SC SM 9/125 Micron Duplex Single Mode Fiber Optic Patch Cable
See all Comprehensive items

Comprehensive 23' SC SM 9/125 Micron Duplex Single Mode Fiber Optic Patch Cable

SKU: CVSCSCSM7M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive CAT5-350-25YLW: Picture 1 regular
Comprehensive 25' Cat5e 350Mhz Snagless Patch Cable, Yellow
$15.99$12.79
Comprehensive LC-LC-SM-15M: Picture 1 regular
Comprehensive 49.2' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$84.99$67.99
Comprehensive LC-LC-SM-2M: Picture 1 regular
Comprehensive 6.5' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$61.99$49.59
Comprehensive LC-LC-SM-5M: Picture 1 regular
Comprehensive 16.4' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$67.99$54.39
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive SC-SC-SM-7M Specifications

  • Connector 1

    SC Male

  • Connector 2

    SC Male

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0 mm

  • Installation Tensile Load

    100 N (445lbs)

  • Long-Term Tensile Load

    50 N (222lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Min. Bend Radius

    5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm / 1.2"

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • SC Connector Dimensions (H x W x D)

    7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Weight

    1.2lbs / 0.54kg

  • UPC Code

    808447046076

About Comprehensive SC-SC-SM-7M

Comprehensive 23' SC SM 9/125 Micron Duplex Single Mode Cable is a high Quality Single-mode Patch Cable Assemblies. SC/SC Duplex 9/125 Single Mode Fiber Patch Cable - Yellow 9/125 micron Cable for gigabit ethernet applications. This Cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-SC-SM-7M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected and Tested
