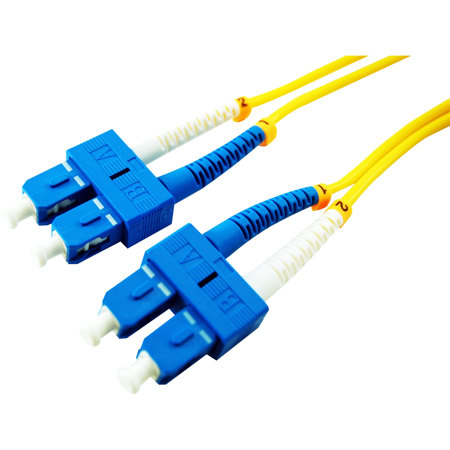

Comprehensive 492.12' (150m) SC to SC 9/125 Single-Mode 3.0mm Patch Cable
See all Comprehensive items

Comprehensive 492.12' (150m) SC Male to SC Male 9/125 Single-Mode 3.0mm Duplex Plenum Patch Cable

SKU: CVSCSCSMP150

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive 492.12' (150m) SC to SC 9/125 Single-Mode 3.0mm Patch Cable Specifications

  • Connector 1

    SC Male½

  • Connector 2

    SC Male

  • Length

    492.12' (150m)

  • Maximum Connector Loss

    0.50 dB½

  • Typical Connector Loss

    0.20 dB½

  • Typical Return Loss

    -50 dB½

  • Buffer Material

    PVC½

  • Buffer OD

    900 um½

  • Jacket Material

    Plenum (OFNP rated)½

  • Jacket OD

    3.0 mm½/0.11"

  • Installation Tensile Load

    100 N (445 lbs)½

  • Long-Term Tensile Load

    50 N (222 lbs)½

  • Maximum Tensile Load

    100 N/cm½

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")½

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm (1.2")½

  • Crush Resistance

    750 N/cm½

  • Impact Resistance

    1,000 cycles½

  • Flex Resistance

    5,000 cycles½

  • Attenuation at 1550 nm

    0.25 dB/km½

  • Attenuation at 1310 nm

    0.35 dB/km½

  • Operating Temperature

    -20 to +80 deg.C / -4 to 176 deg.F

  • RoHS Compliant

    Yes

  • Dimensions (H x W x D)

    SC Connectors: 7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16"

  • Weight Lbs

    3.5lbs / 1.58kg

  • UPC Code

    808447070156

About Comprehensive 492.12' (150m) SC to SC 9/125 Single-Mode 3.0mm Patch Cable

The Comprehensive SC-SC-SMP-150M has high Quality Single-mode Plenum Patch Cable Assemblies. This Yellow 9/125 micron cable is designed for Gigabit Ethernet applications. This cable is 100% optically inspected and tested for insertion loss.

Comprehensive 492.12' (150m) SC to SC 9/125 Single-Mode 3.0mm Patch Cable Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected & Tested

What's in the box:

  • Comprehensive 492.12' (150m) SC to SC 9/125 Single-Mode 3.0mm Patch Cable
  • Comprehensive Lifetime Warranty
