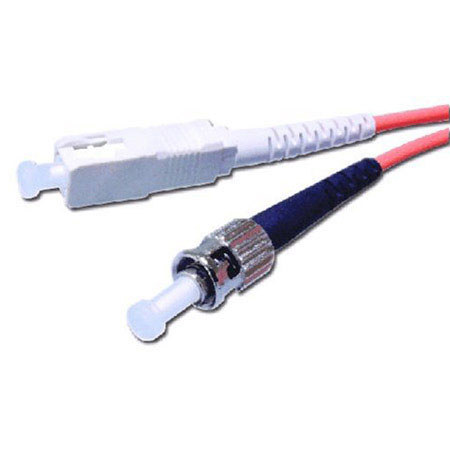

Comprehensive 6.6' SC to ST MM Duplex 62.5/125 Multimode Patch Cable
See all Comprehensive items

Comprehensive 6.6' SC to ST MM Duplex 62.5/125 Multimode Patch Cable

SKU: CVSCSTMM2M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive LC-LC-MM-2M: Picture 1 regular
Comprehensive 6.5' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable
$31.99$25.59
Comprehensive LC-LC-MM-3M: Picture 1 regular
Comprehensive 9.8' MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable
$36.99$29.59
Comprehensive LC-LC-SM-2M: Picture 1 regular
Comprehensive 6.5' LC SM 9/125 Micron Duplex Fiber Optic Patch Cable
$61.99$49.59
Comprehensive LC-ST-OM3-2M: Picture 1 regular
Comprehensive 2m 10Gb LC Male/ST Male Duplex Fiber Patch Cable, Aqua
$44.99$35.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive SC-ST-MM-2M Specifications

  • Connector 1

    SC Male

  • Connector 2

    ST Male

  • Dimensions (H x W x D)

    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)
    ST Connector: 9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0 mm

  • Installation Tensile Load

    100 N (445lbs)

  • Long-Term Tensile Load

    50 N (222lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Min. Bend Radius

    5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm / 1.2"

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Weight

    0.5lbs / 0.23kg

  • UPC Code

    808447045482

About Comprehensive SC-ST-MM-2M

Comprehensive 6.6' SC To ST MM Duplex 62.5/125 Multimode Patch Cable assemblies made of the finest quality materials. Color coded connectors for convenience. SC/ST Duplex 62.5/125 Multimode Fiber Patch Cable - Orange 62.5/125 micron Cable for fast ethernet, fibre channel, Infiniband, ATM and gigabit ethernet applications that require high speed data transfer. This Cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-ST-MM-2M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected and Tested
