Comprehensive 30m/98.42'' SC to ST OM1 MM 3mm Duplex Plenum Patch Cable
See all Comprehensive items

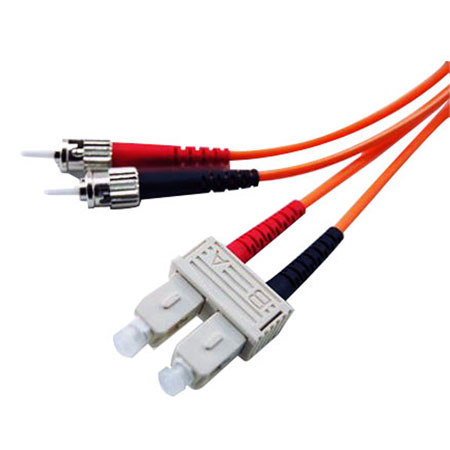

Comprehensive 30m/98.42' SC Male to ST Male OM1 MM 3mm Duplex Plenum Patch Cable

SKU: CVSCSTMMP30M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive LC-LC-MM-2M: Picture 1 regular
Comprehensive 6.5' LC MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable
$31.99$25.59
Comprehensive LC-LC-MM-3M: Picture 1 regular
Comprehensive 9.8' MM Duplex 62.5/125 Multimode Fiber Optic Patch Cable
$36.99$29.59
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive SC-ST-MMP-30M Specifications

  • Connector 1

    SC Male

  • Connector 2

    ST Male

  • Cable length

    30m/98.42'

  • Maximum Connector Loss

    0.30 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -25 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    Plenum (OFNP rated)

  • Jacket OD

    3.0mm / 0.11"

  • Installation Tensile Load

    100 N (445 lbs)

  • Long-Term Tensile Load

    50 N (222 lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Bend Radius

    Minimum: 5.0cm (1.97")

  • Long-Term (Unloaded) Bend Radius

    Minimum: 3.04cm (1.2")

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1300 nm

    1.0 dB/km

  • Attenuation at 850 nm

    3.5 dB/km Operating Temperature: -20C to +80C

  • Dimensions (H x W x D)

    SC Connector: 10.6 x 26 x 58mm / 0.41 x 1.02 x 2.28" (with installed duplex clip)
    ST Connector: 9.8 x 19.6 x 59mm / 0.38 x 0.77 x 2.32"

  • Weight

    2.20lbs / 0.99kg

  • UPC Code

    808447069358

About Comprehensive SC-ST-MMP-30M

The Comprehensive 30m/98.42' SC Male to ST Male OM1 MM 3mm Duplex Plenum Patch Cable is made of the finest quality materials. Color coded connectors for convenience. SC/ST Duplex 62.5/125 MM Fiber Patch Cable - Orange 62.5/125 micron cable for fast Ethernet, fiber channel, Infiniband, ATM and gigabit Ethernet applications that require high speed data transfer. This cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-ST-MMP-30M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected and Tested
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm
  • RoHS Compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • 100% Optically Inspected & Tested
  • Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm
  • RoHS Compliant

What's in the box:

  • Comprehensive 30m/98.42' SC Male to ST Male OM1 MM 3mm Duplex Plenum Patch Cable
  • Comprehensive Lifetime Warranty
