Comprehensive 9.8' SC to ST SM 9/125 Micron Duplex Fiber Optic Patch Cable
See all Comprehensive items

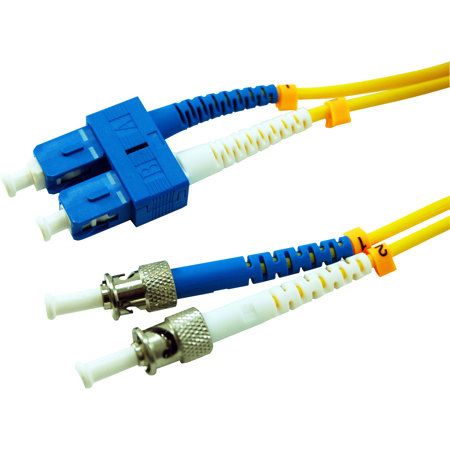

Comprehensive 9.8' SC to ST SM 9/125 Micron Duplex Single Mode Fiber Optic Patch Cable

SKU: CVSCSTSM3M

This item is no longer available.

Recommended Alternatives

Comprehensive LC-ST-MM-3M: Picture 1 regular
Comprehensive 3m LC Male to ST Male Duplex 62.5/125 Multimode Fiber Patch Cable
$35.99$28.79
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive SC-ST-SM-3M Specifications

  • Connector 1

    SC Male

  • Connector 2

    ST Male

  • SC Connector Dimensions (H x W x D)

    SC Connector: 7.3 x 8.9 x 55mm / 0.28 x 0.35 x 2.16" (H x W x D)
    ST Connector: 9.6 x 56mm / 0.37 x 2.20" (Diam x D)

  • Maximum Connector Loss

    0.50 dB

  • Typical Connector Loss

    0.20 dB

  • Typical Return Loss

    -50 dB

  • Buffer Material

    PVC

  • Buffer OD

    900 um

  • Jacket Material

    PVC (OFNR riser-rated)

  • Jacket OD

    3.0 mm

  • Installation Tensile Load

    100 N (445lbs)

  • Long-Term Tensile Load

    50 N (222lbs)

  • Maximum Tensile Load

    100 N/cm

  • Installation (Loaded) Min. Bend Radius

    5.0cm (1.97")

  • Long-Term (Unloaded) Minimum Bend Radius

    3.0cm / 1.2"

  • Crush Resistance

    750 N/cm

  • Impact Resistance

    1,000 cycles

  • Flex Resistance

    5,000 cycles

  • Attenuation at 1550 nm

    0.25 dB/km

  • Attenuation at 1310 nm

    0.35 dB/km

  • Operating Temperature

    -20C to +80C

  • RoHS Compliant

    Yes

  • Weight

    0.6lbs / 0.27kg

  • UPC Code

    808447045970

About Comprehensive SC-ST-SM-3M

Comprehensive 9.8' SC To ST SM 9/125 Micron Duplex Single Mode Cable is a high Quality Single-mode Patch Cable Assemblies. SC/ST Duplex 9/125 Single Mode Fiber Patch Cable - Yellow 9/125 micron Cable for gigabit ethernet applications. This Cable is 100% optically inspected and tested for insertion loss.

Comprehensive SC-ST-SM-3M Features

  • Exceptional Value
  • Comprehensive Reliability
  • Designed for Gigabit Ethernet applications
  • Jacket OD: 3.0 mm
  • 100% Optically Inspected and Tested
