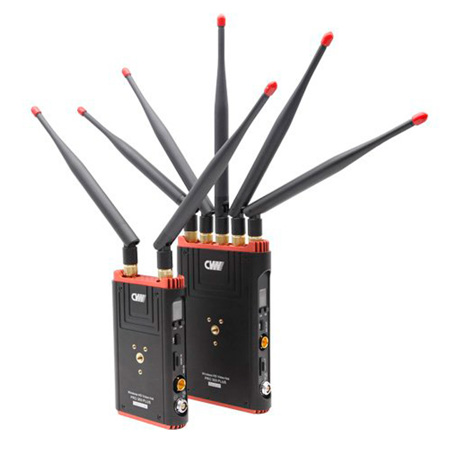

Crystal Video Technology Pro300 Plus Wireless Video Transmission System

Crystal Video Technology Pro300 Plus Wireless Video Transmission System

SKU: CVWPRO3PL705
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Crystal Video Technology Pro300 Plus Specifications

Transmitter

Transmitter

Jump to...

  • Transmission power

    16dBm

  • Frequency

    5.1-5.9GHz

  • Antenna Mode

    2x 5 MIMO 5dBi External antenna

  • Power consumption

    7-8W

  • Operating voltage

    DC12V / 2A (6V-17V)

  • Video Format

    480i, 480p (SDI not supported), 576i, 576p
    (SDI not supported), 720p, 1080i, 1080p?

  • Audio Format

    PCM, DTS-HD, Dolby True HD?

  • Transmission Distance

    Open space up to 300 meters

  • Mechanical Interface

    1/4 inch nut in bottom, SONY F-Type Battery Plate

  • Temperature

    14 to 122 Degree F (-10 to 50 Degree C) (Working)
    -40 to 176 Degree F (-40 to 80 Degree C) (Storage)

  • Bandwidth

    40MHz

  • LCD screen display

    Frequency point setting, signal strength indication, connection status display

  • Dimensions (L x W x H)

    4.78 x 3.28 x 1.37" (12.15 x 8.35 x 3.5cm)

Receiver

Jump to...

  • Receiving Sensitivity

    -70dBm

  • Frequency

    5.1-5.9GHz

  • Antenna Mode

    2x 5 MIMO 5dBi External antenna

  • Power consumption

    12W

  • Operating voltage

    DC12V / 2A (6V-17V)

  • Video Format

    480i, 480p (SDI not supported), 576i, 576p
    (SDI not supported), 720p, 1080i, 1080p?

  • Audio Format

    PCM, DTS-HD, Dolby True HD?

  • Transmission Distance

    Open space up to 300 meters

  • Mechanical Interface

    1/4 inch nut in bottom, SONY F-Type Battery Plate

  • Temperature

    32 to 104 Degree F (0 to 40 Degree C) (Working)
    -4 to 176 Degree F (-20 to 80 Degree C) (Storage)

  • Bandwidth

    40MHz

  • LCD screen display

    Frequency point setting, signal strength indication, connection status display

  • Dimensions (L x W x H)

    6.40 x 4.23 x 2.68" (16.27 x 10.75 x 6.83cm)

About Crystal Video Technology Pro300 Plus

Zero latency, full HD production mode
The zero latency and no compression make professional video production easy and comfortable. With 1080p60 Full HD, even in high-speed shooting, the picture is still show the full details.

SDI+HDMI interface design, always meet your shooting needs
Support SDI and HDMI interface, widely adapt to all types of cameras, to meet the needs of professional video production. It provides convenient and efficient wireless solutions in this industry.

1TNR mode, enjoy the simple and convenient work
Support multiple receivers to work at the same time, combined with the image encryption function and strong anti-interference ability, make video production more stable, faster, and more secure. Make you enjoy the new fun of wireless video production (for optional).

A wonderful experience for multi-scenario applications
Zero latency, no compression, 1080p60 Full HD, widely adaptable to all types of cameras and monitors. In addition to meeting the requirements of professional video production, it can also be adapted to multi-scene applications such as weddings, concerts, sporting events, education, churches, etc. It's really entering the era of wireless production.

Crystal Video Technology Pro300 Plus Features

  • The product with its transmission distance of up to 500 meters can meet the
  • demands of film shooting, television broadcasting, live events
  • large conference, etc.
  • The product delivers uncompressed real-time 1080P/60Hz full HD video (4:2:2, 10bit)
  • Support HDMI, HD-SDI, 3G-SDI
  • Full hardware design, plug & play
  • 5.1G-5.9G, Support manual setting for channel switching and broadcast mode
  • Support SDI time code transmission (time code format: ATC_VITC, ATC_LTC)
  • Support SDI camera recording trigger function (Start/Stop Flag) transmission
  • Comply with EDID 1.1 , Support HDMI 1.3
  • Support AES128 bit encryption

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • The product with its transmission distance of up to 500 meters can meet the
  • demands of film shooting, television broadcasting, live events
  • large conference, etc.
  • The product delivers uncompressed real-time 1080P/60Hz full HD video (4:2:2, 10bit)
  • Support HDMI, HD-SDI, 3G-SDI
  • Full hardware design, plug & play

What's in the box:

  • 7059 Transmitter
  • 3059 Receiver
  • 2x Transmitter Antennas
  • 5x Receiver Antennas
  • 2x 2-Pin Lemon to D-Tap Power Cables
  • 2x Hot-Shoe Stands
  • 2x SDI Cables
  • Video Technology 1 Year Limited Warranty
