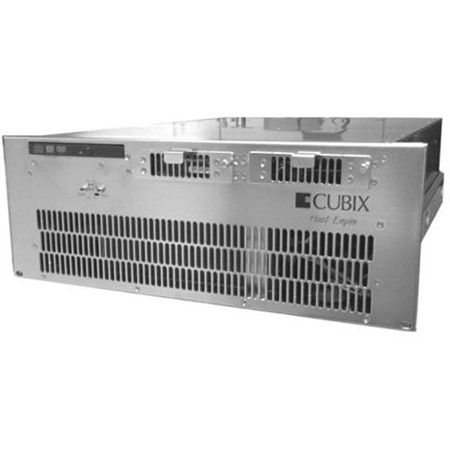

Cubix HostEngine 4RU Rackmount Series Workstation, 2x Intel Xeon E5-2687W 3.10GHz, 64GB DDR4 SDRAM, 500GB SSD, Linux CentOS Preloaded

SKU: CXHE4U87W64

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cubix HostEngine 4RU Specifications

Processor and Chipset

Processor and Chipset

Jump to...
  • Number of Processors Supported

    2

  • Number of Processors Installed

    2

  • Processor Manufacturer

    Intel

  • Processor Type

    Xeon

  • Processor Model

    E5-2687W

  • Processor Core

    Octa-core (8 Core)

  • Processor Speed

    3.10 GHz
    Turbo Speed: 3.80GHz

  • Memory

    Standard: 64GB
    Maximum: 1TB

  • Memory Technology

    DDR4 SDRAM

  • Number of Total Memory Slots

    16

Storage

Jump to...
  • Total Solid State Drive Capacity

    500GB

  • Solid State Drive Interface

    Serial ATA/600

Controllers

Jump to...
  • Controller Type

    Serial ATA/600

Display and Graphics

Jump to...
  • Graphics Controller Manufacturer

    ASPEED

  • Graphics Controller Model

    AST2400

Network and Communication

Jump to...
  • Ethernet Technology

    Gigabit Ethernet

Interfaces/Ports

Jump to...
  • Total Number of USB Ports

    4

  • Number of USB 2.0 Ports

    2

  • Number of USB 3.0 Ports

    2

Software

Jump to...
  • Operating System Platform

    Linux

  • Operating System

    CentOS

  • Input Voltage

    120 V AC
    230 V AC

  • Maximum Power Supply Wattage

    1500W

General

Jump to...
  • Form Factor

    Rack-mountable

  • Dimensions (HxWxD)

    7 x 19 x 25.5" (17.78 x 48.26 x 64.77cm)

  • Weight

    54 lbs (24.49kg) Approx.

About Cubix HostEngine 4RU

Cubix HostEngine

HostEngines are rackmountable computers that stand alone or connect to Cubix Xpanders to create powerful GPU-accelerated systems capable of running up to 8 GPUs at a time. Typically, HostEngine 2U and 4U are workstations, while HostEngine 3U RP and 4U RP are servers. All are American-made and built to last. HostEngine workstations are best used for color grading or rendering, while HostEngine servers support high-density GPU applications, high-speed PCIe expansion flexibility, virtualization projects and tough HPC challenges. They come configured, loaded with the OS and drivers and tested before shipping. If stability and performance are essential, this is the computer you need.

For even more power, connect a HostEngine to Xpander Rackmount 8. Add NVIDIA Tesla K80 for HPC work and Tesla M60 for virtual desktop projects with CUDA. For virtual desktop projects, connect up to two HostEngine 3U RPS'. One of these will support four Grid K2s, while two of them will support eight Grid K2s. You can also use AMD Firepro S9100/9150/9170 for HPC applications with OpenCL / OpenGL. HostEngines can also work with Xpanders to support multiple Intel Xeon Phi processors for parallel processing.

HostEngine 4U

A 4U computer that mounts horizontally within a rack mount cabinet, this computer can be ordered pre-configured with GPUs installed. It is commonly used as a workstation and can connect to Cubix Xpanders for maximum GPU acceleration. HostEngine 4U offers premium performance for today's computing with the flexibility to handle future upgrades.

Cubix HostEngine 4RU Features

  • Intel Xeon E5-2687W dual processors
  • Intel C612 chipset
  • 64GB of memory included (supports up to 1TB)
  • 500GB SATA 3 SSD included (supports up to 2 TB SATA 3 SSDs)
  • Four PCIe 3 Gen 3.0 x16 expansion slots for low-profile cards (such as the Cubix HIC that connects to Xpander)

What's in the box:

  • Cubix HostEngine 4RU Rackmount Series Workstation
  • 1500W Power Supply
  • Cubix 1 Year Limited Warranty
