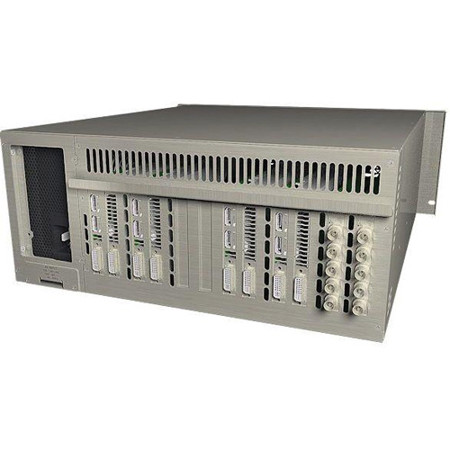

Cubix 4U 19" Gen3 Xpander Rackmount Elite Expansion Chassis with 1500W External Power Supply
SKU: CXPRMG3514U
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Cubix 4U 19" Gen3 Xpander Rackmount Elite Expansion Chassis, 1500W Power Supply
Xpander Elite is a 4U, 19" rackmount PCIe slot expansion solution designed for the broadcast industry digital cinema production environments and visualization projects which require plenty of additional power and PCIe slots, while maintaining a small physical footprint and whisper-quiet operations.
Using only one PCIe x16 slot in a host PC or Mac Pro, Xpander Rackmount Elite provides you with six additional full-length, full-height PCIe slots for use with multiple NVIDIA graphics cards, SDI capture cards from Blackmagic Design, AJA, Bluefish444, NVIDIA and others. Add multiple RED Rocket cards, high-performance NVIDIA Quadro graphics by PNY, as well as fiber optic HBAs, RAID controllers, PCIe-based memory cache cards - all of the above using only 1 slot in the host workstation or server!
Rack Mount Elite
The Xpander Rack Mount Elite Gen3 is a 4U, external PCI Express (PCIe) expansion chassis that can support 1 server / workstation connection with up to 4X 16-channel PCIe Gen3 high-performance dual-slot cards + 2x single-slot 8-channel I/O cards per system. Rackmount Elite Gen3 provides a high-bandwidth external slot array for applications ranging from NVIDIA Quadro SVS to onset production applications in Media & Entertainment (QF version recommended for Production apps).
Support up to 16x HD or DCI 2K projectors or up to four 4K (or UltraHD) monitors and projectors via NVIDIA SVS and G-Sync III. All Xpander Rackmount Elite systems include a 4-channel slot (power only) for use the NVIDIA G-Sync III card in high-end visualization applications. Each unit is 4U vertical height; includes 1500W power supply, variable speed exhaust fans, 2m data transfer cable + PCIe x16 Gen3 Host Interface Card, mounting hardware
• Enhance server I/O infrastructure capabilities without adding servers
• Hardware-acceleration using NVIDIA graphics and GPU cards for application acceleration 2X - 50X that of CPUs only
• Save space, weight and cost while increasing I/O card density
Cubix 4U 19" Gen3 Xpander Rackmount Elite Expansion Chassis, 1500W Power Supply Features
- Install 4x dual-slot GPUs for blazing fast hardware acceleration purposes, as well as other types of 3rd party I/O controllers
- Four PCIe Gen 3 x16 expansion slots (all supporting both dual-slot and single-slot cards)+ 2x 8-channel per MIB (main interface board)
- 4x variable speed, temperature-controlled exhaust fans
- One MIBs per 4U, 19" rack mount system
- An independent 1500W power supply and cooling fan to meet almost any expansion requirement
- Simple, quick installation with minimal impact per rackmount computer; install a HIC and drivers for devices you install in GPU-Xpander
- Each x16 cable and connector provides a 250 mating cycle duty cycle (purchase additional x16 HICs for sharing with multiple host computers
- Front panel LED status indicator
- Up to four dual-slot graphics cards such as NVIDIA Quadro 5000 / 6000 / K5000 / K6000
- Up to four dual-slot GPU cards such as NVIDIA Tesla C2075 / K20 / K40
- Add up to 2x NVIDIA DVP cards, RED Rocket cards, Blackmagic Design Decklink, ATTO HBA, Fusion-io and other 3rd party 4-ch / 8-ch PCIe cards
