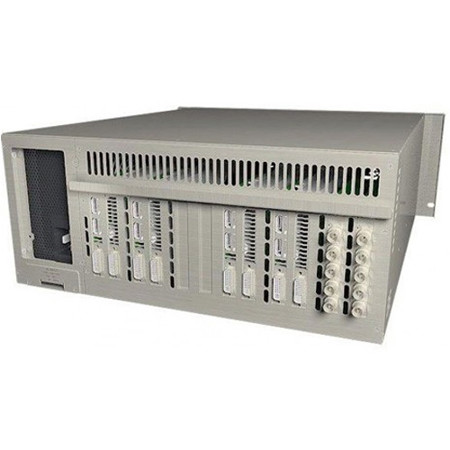

Cubix Xpander Elite Gen3 4U External PCIe Slot Expansion System for 19" Rackmount Cabinets (1600W)
SKU: CXPRMG36U
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Cubix Xpander Elite
The Xpander Rack Mount Elite Gen3 is a 4U, external PCI Express (PCIe) expansion chassis that can support 1 server / workstation connection with up to 4X 16-channel PCIe Gen3 high-performance dual-slot cards + 2x single-slot 8-channel I/O cards per system. Rackmount Elite Gen3 provides a high-bandwidth external slot array for applications ranging from NVIDIA Quadro SVS to onset production applications in Media & Entertainment (QF version recommended for Production apps). Support up to 16x HD or DCI 2K projectors or up to four 4K (or UltraHD) monitors and projectors via NVIDIA SVS and G-Sync III.
All Xpander Rackmount Elite systems include a 4-channel slot (power only) for use the NVIDIA G-Sync III card in high-end visualization applications. Each unit is 4U vertical height; includes 1500W power supply, variable speed exhaust fans, 2m data transfer cable + PCIe x16 Gen3 Host Interface Card, mounting hardware.
Benefits
• Hardware acceleration without purchasing a customized PC workstation or a new Mac Pro (2008+)
• Works with almost any standard PC and Apple Mac Pro featuring PCIe Gen2 / Gen 3 x16 open slot (s)
• Add multiple graphics or GPU cards to any computer regardless of power supply limitations
• Add multiple graphics or GPU cards without having to specify, purchase, install and configure new computers
• No power or cooling needed from the host computer; Xpander Elite provides its own power and cooling
• Less impact on mobile 19" cabinets than a customized tower workstation
• Connect two or more GPU-Xpander units to one computer (using two or more PCIe x16 slots available in the host computer)
• Add four dual-slot GPUs for supporting rackmount computers which have very limited slot expansion capabilities and limited power supply capacities
• Support one host PC or Apple Mac Pro workstation with one Xpander Rackmount Elite
Cubix Xpander Elite Features
- Install blazing fast hardware acceleration within minutes
- Four PCIe Gen3 x16 expansion slots (x16 electrical) PLUS two PCIe Gen3 x8 (physical and electrical) expansion slots in each Xpander Elite Rackmount system
- Front panel LED status indicator
- Up to four dual-slot graphics cards such as NVIDIA Quadro 5000 / 6000 / K5000 / K6000
- Up to four dual-slot GPU cards such as NVIDIA Tesla C2075 / K20 / K40
- Add up to 2x NVIDIA DVP cards, RED Rocket cards, Blackmagic Design Decklink, ATTO HBA, Fusion-io and other 3rd party 4-ch / 8-ch PCIe cards
- An independent, 1600W power supply to meet any expansion requirement
- 4x variable speed, temperature-controlled exhaust fans
- Simple, quick installation with minimal impact per rack cabinet; just install a host adapter and a graphics driver
- Each x16 cable and connector provide a 250 mating cycle duty cycle
- Install 4x dual-slot GPUs for blazing fast hardware acceleration purposes, as well as other types of 3rd party I/O controllers
- Four PCIe Gen 3 x16 expansion slots (all supporting both dual-slot and single-slot cards)+ 2x 8-channel per MIB (main interface board)
- One MIBs per 4U, 19" rack mount system
- An independent 1500W power supply and cooling fan to meet almost any expansion requirement
- Simple, quick installation with minimal impact per rackmount computer; install a HIC and drivers for devices you install in GPU-Xpander
- Each x16 cable and connector provides a 250 mating cycle duty cycle
