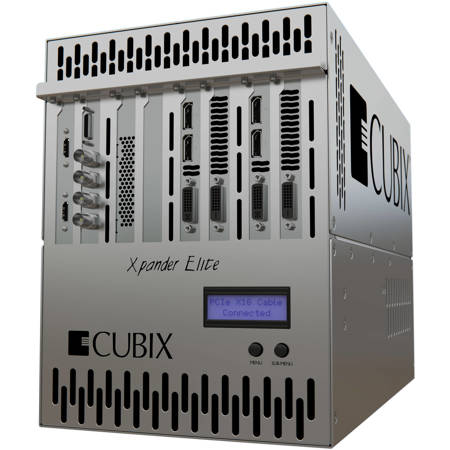

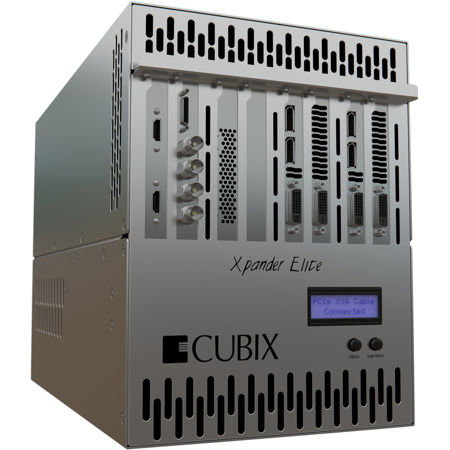

Cubix PCIe Gen3 x16 Xpander Desktop Elite System, 1200W Power Supply, 128 Gb/s Transfer Rate, Supports 16 PCIe Channels

SKU: CXXPDTELDHE2

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cubix Gen3 Specifications

  • No. of PCIe Expansion Slots

    4

  • No. of graphics cards supported

    4 single-slot or 4 dual-slot

  • No. Workstations Supported (Max.)

    1

  • No. PCIe Channels /HIC

    16 (Gen3, 128Gbps)

  • No. of Power Supplies / Watts per

    1 / 1200W

  • Applications

    DaVinci Resolve for Win/Linux, Autodesk 3ds Max, Assimilate Win 7, Chaos GroupV-Ray RT, Adobe CS6, CATIA v6, transcoding, 4K workflows

About Cubix Gen3

Add 4 single-slot or dual-slot PCIe Gen2 or Gen3 cards in you host PC or Mac Pro using GPU-xpander Desktop Elite. Connecting Desktop Elite to your Apple Mac Pro (2008-2012 models), Linux or Microsoft Windows 7 / 8 host computers provide your desktop operators with the ability to support up to four dual-slot GPUs, graphics cards or other PCIe cards such as Red Rocket, Blackmagic Design Decklink, Bluefish 444, NVIDIA SDI Capture or other cards.

The Cubix Desktop Elite Gen3 (1200W) is an economical way to add GPUs or other PCIe cards to your host computers. Installing the Cubix host interface controller (HIC) in an available PCIe Gen 3 x16 slot within your host computers assures your operators that they will enjoy a full 128Gbps (8Gbps x 16 lanes = 80Gbps) transfer rate to and from the GPUs or other cards you install in GPU-xpander Desktop Elite.

Add four NVIDIA Quadro 4000 / 5000 / 6000, GeForce GTX 580 / 680, Tesla C2050 / C2070 / C2075 graphics or other controllers to any computer that has an available PCIe expansion slot using xpander Desktop 4. Install the HIC in the computer's PCIe x16 slot and connect it to Desktop 4 - you have just added four dual-slot or four single-slot, CUDA-capable graphics or HPC controllers to your current PC or Mac Pro without buying a new computer.

Cubix Gen3 Features

  • Install hardware acceleration in minutes, but with quiet exhaust fan operation
  • Four PCIe Gen 3 x16 expansion slots (x16 electrical) in each GPU-Xpander Desktop Elite
  • Up to four single-slot or dual-slot graphics cards such as NVIDIA Quadro K4000 / K5000 / K6000
  • Up to four dual-slot GPU cards such as NVIDIA Tesla C2070 / C2075 / K20 / K40
  • Up to four dual-slot consumer graphics gaming cards like GeForce GTX 780 / 780Ti / TITAN / TITAN BLACK
  • A 1200W independent power supply to meet any expansion requirement
  • Simple, quick installation with minimal impact per operator desktop; just install a PCIe x16 host adapter and a graphics driver
  • Each x16 cable and connector provide a 250 mating cycle duty cycle
  • Hardware acceleration, in a quiet fan configuration, without purchasing a customized PC workstation or a new Mac Pro (2008+)
  • Works with Apple Mac Pro (2008+) featuring PCIe Gen2 / Gen3 x16 open slot(s)
  • Add multiple graphics or GPU cards to any computer regardless of power supply limitations
  • Add multiple graphics or GPU cards without having to specify, purchase, install and configure new computers
  • No power or cooling needed from the host computer; GPU-Xpander Desktop 4 provides its own power and cooling
  • Zero or minimal impact on operators' desktop screen configuration
  • Less impact on operators' desktop space than a customized tower workstation

Key Features

  • Four PCIe Gen 3 x16 expansion slots (x16 electrical) in each GPU-Xpander Desktop Elite
  • Up to four single-slot or dual-slot graphics cards NVIDIA Quadro K4000 / K5000 / K6000
  • Up to four dual-slot GPU cards such as NVIDIA Tesla C2070 / C2075 / K20 / K40
  • Up to four dual-slot consumer graphics gaming cards
  • 1200W independent power supply to meet any expansion requirement
  • Hardware acceleration in a quiet fan configuration

What's in the box:

  • Cubix PCIe Gen3 x16 Xpander Desktop Elite System
  • Power Plugs
  • PCIe x16 Host Adapters
  • 1m Cables
  • Cubix 2 Year Warranty
