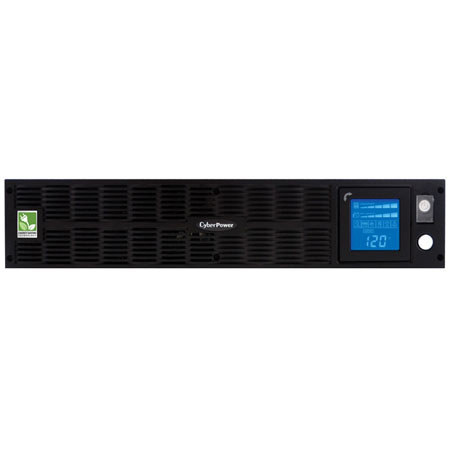

CyberPower Smart App Sinewave PR3000LCDRT2U 3000VA / 2250W UPS
See all CyberPower items

CyberPower Smart App Sinewave PR3000LCDRT2U 3000VA / 2250W UPS, 9 Outlets

SKU: CYBPR30002U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

CyberPower PR3000LCDRT2U Specifications

  • UPS Topology

    Line-Interactive

  • Energy Saving

    Yes - GreenPower UPS Bypass Technology

  • Input Voltage

    80Vac - 150Vac

  • Input Frequency

    50Hz/60 Hz +/- 3Hz

  • Plug Type

    NEMA L5-30P

  • Plug Style

    Straight

  • Cord Length

    10' / 3.04 m

  • Output VA

    3,000

  • Output Watts

    2,250

  • Automatic Voltage Regulation

    Yes

  • On Battery Waveform

    Sine Wave

  • On Battery Voltage

    120Vac +/- 5%

  • On Battery Frequency

    50/60Hz +/- 0.1%

  • Overload Protection

    Internal circuitry limiting / circuit breaker

  • Outlets - Total

    9

  • Outlet Type

    NEMA 5-20R, NEMA L5-30R

  • Outlets - Battery & Surge Protected

    9

  • Outlets - Surge-Only Protected

    0

  • Outlets - Widely Spaced

    0

  • Transfer Time

    4ms

  • Runtime at Half Load (min)

    8

  • Runtime at Full Load (min)

    3

  • Battery Type

    Sealed lead-acid

  • Battery Size

    12V/9AH

  • User Replaceable

    Yes

  • Hot-Swappable

    Yes

  • Typical Recharge Time

    8 Hours

  • Replacement Battery

    RB1290X4D

  • Battery Quantity

    4

  • Extended Runtimes Available

    Yes, with optional BP48V75ART2U Battery Pack

  • Surge Suppression

    1,874 Joules

  • Phone / Ethernet RJ11 / RJ45

    1-In, 1-Out (Combo)

  • Coax Protection RG6

    None

  • EMI/RFI Filtration

    Yes

  • HID Compliant USB Port

    Yes

  • Serial Port

    Yes (2x)

  • Emergency Power Off (EPO) Port

    Yes

  • LED Indicators

    Power on, wiring fault

  • Audible Alarms

    On battery, low battery, overload

  • Software

    PowerPanel Business Edition

  • SNMP / HTTP Remote Monitoring

    Yes, with optional RMCARD202

  • AS400 Management

    None

  • Operating Temperature

    32 deg.F to 95 deg.F / 0 deg.C to 35 deg.C

  • Operating Humidity

    0% - 95% non-condensing

  • Storage Temperature

    5 deg.F to 113deg.F / -15deg.C to 45 deg.C

  • Maximum Operating Elevation

    10,000 ft / 3,000 m

  • Maximum Storage Elevation

    50,000 ft / 15,000 m

  • Rack Size

    2U

  • Form Factor

    Rack/Tower

  • Dimensions (WxHxD)

    17.25x3.5x19.5" / 43.81x8.89x49.53 cm

  • Weight

    82 lbs / 37.19 kg

  • UPC Code

    649532030064

About CyberPower PR3000LCDRT2U

The CyberPower Smart App Sinewave PR3000LCDRT2U uninterruptible power supply (UPS) safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full automatic voltage regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This UPS system features patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

The PR3000LCDRT2U unit has a capacity of 3000VA/2250Watts, eight (8) battery and surge protected NEMA 5-20R receptacles, including four (4) fail-safe outlets for critical loads and one (1) NEMA L5-30R twist lock receptacle. This UPS has four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB, two (2) DB9 serial and one (1) emergency power off (EPO) port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR3000LCDRT2U through a standard web browser.

CyberPower PR3000LCDRT2U Features

  • Pure Sine Wave - When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity
  • RM/T Configuration - The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (2U) configuration
  • Full AVR - Boost/Buck technology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment
  • Reduce Energy Cost & Energy Loss - This UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
  • Critical Load Outlets - During a power outage or overload, critical load outlets ensure continuous power to critical equipment
  • EMI/RFI Filters - Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Dual PC Support - The Smart App Sinewave UPS has two (2) serial communication ports and 1 USB port to connect two PCs or servers, giving the user full control and the ability to prioritize their operation
  • Multifunction Rotatable LCD Display - UPS battery status and power conditions are easily viewed on this Crystal Blue readout when the UPS is rack mounted or standing as a tower
  • Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
  • Resettable Circuit Breaker - Convenient unit reset switch in case of an overload
  • Metal Housing - Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments
