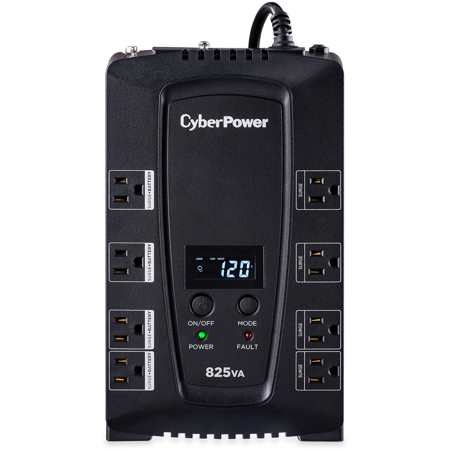

CyberPower CP825LCD Intelligent LCD 825VA / 450W UPS
See all CyberPower items

CyberPower CP825LCD Intelligent LCD 825VA / 450W Simulated Sine Wave UPS, 8 Outlets / USB Port

SKU: CYCP825LCD

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CyberPower CP825LCD Specifications

  • UPS Topology

    Standby

  • Input Voltage

    100V AC - 140V AC

  • Input Frequency

    60Hz +/- 3Hz

  • Input Plug Type

    NEMA 5-15P

  • Input Plug Style

    Right angle

  • Input Cord Length

    6 feet

  • Output

    825 VA / 450 Watts

  • On Battery Voltage

    120V AC +/- 5%

  • On Battery Frequency

    60Hz

  • On Battery Waveform

    Simulated sine wave

  • Overload Protection

    Internal circuitry limiting / circuit breaker

  • Outlets - Total

    8

  • Outlet Type

    NEMA 5-15R

  • Outlets - Battery & Surge Protected

    4

  • Outlets - Surge-Only Protected

    4

  • Outlets - Widely Spaced

    4

  • Transfer Time

    4ms

  • Battery Runtime at Half Load (min)

    8

  • Battery Runtime at Full Load (min)

    2

  • Battery Type

    Sealed lead acid

  • Battery Size

    12V/8.5AH

  • Battery User Replaceable

    Yes

  • Battery Typical Recharge Time

    8 Hours

  • Replacement Battery

    BB Battery - HR1234W

  • Battery Quantity

    1

  • Surge Suppression

    1,030 Joules

  • Maximum Surge Current

    39,000 Amps

  • Phone / Ethernet RJ11 / RJ45

    1-In, 1-Out (Combo)

  • Multifunction LCD Diagnostic Display

    Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, Input Voltage, Output Voltage, Battery In Use, Overload, Silent Mode, Normal Mode

  • USB Port

    Yes

  • HID Compliant USB Port

    Yes

  • Management Cable

    USB Cable

  • LED Indicators

    Power on, wiring fault

  • Audible Alarms

    On battery, low battery, overload

  • Software

    PowerPanel Personal Edition

  • Form Factor

    Compact

  • Keyhole Mounting Slots

    Yes

  • Operating Temperature

    32 deg. F to 95 deg. F / 0 deg. C to 35 deg. C

  • Operating Humidity

    0% - 95% non-condensing

  • Certifications

    UL1778, cUL 107.1, FCC DOC Class B

  • ROHS

    ROHS Compliant

  • Dimensions (W x H x D)

    11" x 6.5" x 3.5" / 27.94 x 16.51 x 8.89 cm

  • Weight

    15 lbs / 6.80 kg

  • UPC Code

    649532018253

About CyberPower CP825LCD

The CyberPower Intelligent LCD CP825LCD uninterruptible power supply (UPS) safeguards mid- to high-end computer systems against surges/spikes and offers battery backup in the event of brownouts or blackouts. The CP825LCD unit has a capacity of 825VA/450Watts, eight (8) NEMA 5-15R receptacles, including four (4) fail-safe outlets for critical loads.

The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB port, as well as protection for phone/network (RJ11/RJ45) and cable/coax (RG-6). It has one (1) maintenance-free, user-replaceable 12V/8.5Ah battery and includes EMI/RFI filters to increase the immunity of the load to disturbances and surges. PowerPanel Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage.

CyberPower CP825LCD Features

  • Intelligent LCD Diagnostic Display: The innovative front panel displays 11 different UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, runtime estimate, load level, output frequency, on battery, overload, fault condition and silent mode
  • Transformer-Spaced Outlets: Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
  • USB Connectivity: HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
  • EMI/RFI Filters: Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems
  • Audible Alarms: Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
  • Resettable Circuit Breaker: The user may use this convenient unit reset switch in case of an overload
  • PowerPanel Business Edition: This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging, hibernation mode, internal reports and analysis, remote management capability of power control
  • Windows Compatibility: The PowerPanel power management software has been fully tested and is compatible with Windows 2000, 2003, XP 32/64, Vista 32/64, 7 and Server 2008

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Intelligent LCD Diagnostic Display
  • PowerPanel Business Edition
  • Resettable Circuit Breaker
  • Transformer-Spaced Outlets
  • Windows Compatibility
  • USB Connectivity

What's in the box:

  • CyberPower CP825LCD Intelligent LCD 825VA / 450W UPS
  • User Manual
  • Power Management Software CD
  • Warranty Card
  • USB Cable
  • Phone Cable
  • CyberPower 3 Year Limited Warranty
