CyberPower Carbon Series CR12U51001 12 RU Wall Mount Rack Enclosure
See all CyberPower items

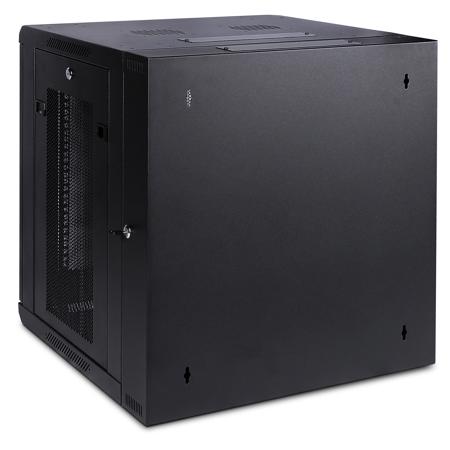

CyberPower Carbon Series CR12U51001 12 RU Wall Mount Rack Enclosure

SKU: CYCR12U51001
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CyberPower CR12U61003: Picture 1 regular

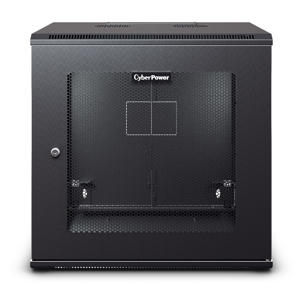

CyberPower CR12U61003 12U Wall Mount Rack Enclosure, Black
$439.00
CyberPower CR6U61003: Picture 1 regular

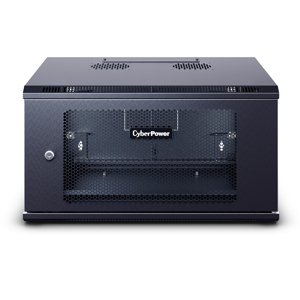

CyberPower CR6U61003 6U Wall Mount Rack Enclosure, Black
$359.00
CyberPower CR9U61003: Picture 1 regular

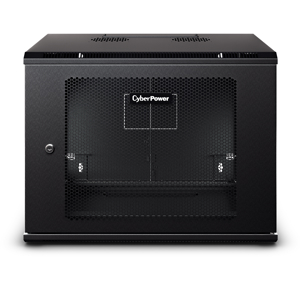

CyberPower Carbon Series CR9U61003 9U Wall Mount Rack Enclosure, Black
$379.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CyberPower CR12U51001 Specifications

  • Rack Height

    12U

  • Color

    Black RAL 9005 powder coat paint

  • Door Type

    Hex Perforated Metal Door

  • Wall Mount Rear Frame

    Swing Out

  • Rack Angle Mounting Hole Type

    Square and #12-24 Mounting Hole

  • Numbered Rack Units

    Yes

  • Removable Door and Side Panels

    Yes

  • Reversible Front Door

    Yes

  • Lockable Door and Side Panels

    Yes, keyed alike

  • Ventilation

    Perforated Door and Side Panels with Ventilated Top and Bottom

  • Cable Access

    Top and Bottom Openings

  • PE Grounding Point

    Yes

  • Protection Class

    IP20

  • Safety

    CE

  • Approvals

    DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS

  • Weight Capacity

    132.3 lbs (60.01kg)

  • Factory Default Mounting Depth

    13.2" (33.53cm)

  • Cable Access Opening Dimensions

    9.8 x 2.2" (24.89 x 5.59cm)

  • Mounting Depth

    Minimum: 1.9" (4.83cm)
    Maximum: 18.2" (46.23cm)

  • Dimensions (WxHxD)

    23.6 x 25.1 x 23.6" (59.94 x 63.75 x 59.94cm)

  • Weight

    60.2 lbs (27.31kg)

  • UPC Code

    649532616367

About CyberPower CR12U51001

The CR12U51001 is designed for use in network closets, classrooms and other locations. It houses network switches and patch panels up to 22 inches deep. This rack features convenient top panel cable access openings, perforated doors and side panels for efficient airflow, adjustable rack angles and square and threaded mounting holes. The CR12U51001 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.

Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment.

Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side.

Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling.

Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the rack.

Rack Mounting Compatibility
The CR12U51001 is compatible with all EIA-310 compliant 19" equipment.

Adjustable Rack Angles
Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 18.2" with 22" maximum equipment depth. U rack units are numbered front and back for easy equipment installation.

Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.

Integrated Electrical grounding
Grounding connections are located on the frame for facility ground.

CyberPower CR12U51001 Features

  • Wall Mount Enclosure
  • Built-In Rails for 12 Rack Spaces
  • Locking, Removable Door and Side Panels
  • Perforated Metal Door and Side Panels
  • Reversible Door
  • Adjustable Rack Angles
  • Numbered Rack Units
  • Cable Access Openings
  • 132lb Stationary Capacity
  • 1.9 to 18.2" Mounting Depth
  • Integrated Electrical Grounding

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wall Mount Enclosure
  • Built-In Rails for 12 Rack Spaces
  • Perforated Metal Door and Side Panels
  • Adjustable Rack Angles
  • Cable Access Openings
  • 132lb Stationary Capacity

What's in the box:

  • CyberPower Carbon Series CR12U51001 12 RU Wall Mount Rack Enclosure
  • Removable Door and Side Panels
  • Keys
  • Mounting Hardware
  • User Manual
  • CyberPower 5 Year Limited Warranty
