CyberPower CST135UC-R Specifications

Typical Applications

Typical Applications

Jump to...
  • Typical Applications

    Desktop Computers
    Workstations
    Home Theater Equipment
    Personal Electronics
    Home Networking
    VoIP Phone Systems
    Automatic Voltage Regulation

General

Jump to...
  • Energy Saving

    GreenPower UPS Bypass Technology

  • Energy Star Certified

    Yes

  • UPS Topology

    Line Interactive

  • Cord Length

    6' (1.8m)

  • Input Frequency Range

    57 Hz - 63 Hz

  • Input Plug Type

    NEMA 5-15P

  • Input Voltage Range

    90 VAC - 142 VAC

  • Automatic Voltage Regulation

    Single Boost

  • On Battery Frequency

    60 Hz +/- 1%

  • On Battery Voltage

    120 VAC +/- 5%

  • On Battery Waveform

    Simulated Sine Wave

  • Outlet Type

    10 - NEMA 5-15R

  • Outlets - Battery & Surge Protected

    5

  • Outlets - Total

    10

  • Overload Protection

    Internal Circuitry Limiting
    Circuit Breaker Protected

  • Typical Transfer Time

    4 ms

  • USB Charge Port

    Yes

  • USB Charge Port Amperage

    4.0 Amps (Shared)

  • USB Charge Port Quantity

    2

  • USB Charge Port Standard

    Type A
    Type C

  • USB Charge Port Type

    1x Type A
    1x Type C

  • USB Charge Port Voltage

    5 VDC

  • USB Charge Port Watts

    20 Watts

  • Under/Over-Voltage Correction

    '10%

  • VA

    1350 VA

  • Watts

    810 W

Surge Protection & Filtering

Jump to...
  • Coax Protection RG6

    1 in
    1 out

  • EMI/RFI Filtration

    Yes

  • Network Protection RJ45

    1-in / 1-Out (10/100/1000)

Management & Communications

Jump to...
  • Surge Suppression (Joules)

    1500 J

  • Audible Alarms

    Battery Mode
    Low Battery
    Overload

  • HID Compliant USB Port

    Yes

  • LCD

    Multifunction LCD

  • LED Indicators

    Power On
    Wiring Fault

  • Management Cable

    USB Cable

  • Software (Free Download)

    PowerPanel Personal

Environmental

Jump to...
  • Operating Elevation

    0 - 10000 ft (0 - 3048 m)

  • Operating Relative Humidity

    0 - 95 % (non-condensing)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Elevation

    0 - 50000' (0 - 15239m)

  • Storage Relative Humidity

    0 - 95% (non-condensing)

  • Storage Temperature

    5 - 113 Degree F (-15 - 45 Degree C)

Certifications

Jump to...
  • Environmental

    RoHS Compliant

  • Safety

    UL1778
    cUL107
    FCC/DoC Class B

Battery

Jump to...
  • Battery Size

    12 V / 7 Ah

  • Battery

    Sealed Lead-Acid Battery

  • Replacement Battery Cartridge

    RB1270X2C

  • Replacement Battery Cartridge Quantity

    1

  • Runtime at Full Load

    2 min

  • Runtime at Half Load

    10 min

  • Typical Recharge Time

    8 Hours

  • User Replaceable Battery

    Yes

  • Battery Info

    Required, included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Color

    Black

  • Form Factor

    Mini-Tower

  • Material

    Plastic

  • Dimensions (W x H x D)

    3.9 x 9.8 x 13.7" (9.91 x 24.89 x 34.8cm)

  • Weight

    21.7 lbs (9.84kg)

  • UPC Code

    649532936496

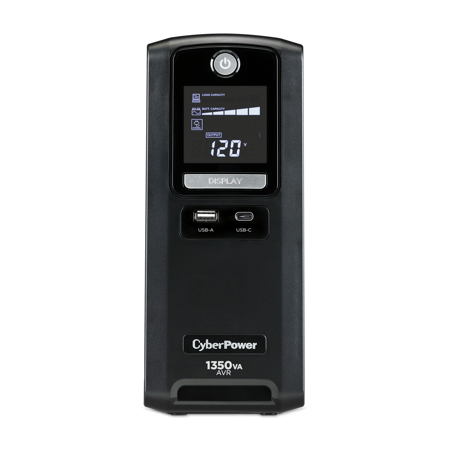

About CyberPower CST135UC-R

You can trust the CyberPower Intelligent LCD CST135UC-R 1350VA/810W Simulated Sinewave UPS System to keep your desktop computers, workstations, networking devices, and home entertainment systems operational and safe from power inconsistencies. This robust and reliable mini-tower UPS features advanced line interactive topology, which not only provides a dependable battery backup during outages but also offers superior surge protection.

The CST135UC-R is equipped with innovative Automatic Voltage Regulation (AVR) technology, which corrects minor power fluctuations without the need to switch to battery power, thereby extending the battery's lifespan. This high-performance feature is particularly crucial in areas prone to frequent voltage instability.

With its dual USB charge ports - one Type-A and one Type-C - this UPS system ensures that your mobile phones and tablets remain powered, even during a utility power failure. The multifunction LCD panel offers immediate, detailed insights into the battery backup and power conditions, enabling you to preemptively address potential issues and avoid downtime.

The CST135UC-R's surge protection capability effectively diverts excess voltage away from sensitive electronics during AC power surges or spikes, safeguarding your equipment from damage. The line interactive UPS system's AVR autotransformer adeptly handles undervoltage brownouts and overvoltage surges without depleting the backup battery, ensuring a stable power supply.

This durable UPS system also boasts an ultra-quiet design, minimizing noise during operation for a more peaceful work environment. Audible alarms provide notifications for events like running on battery power, low battery, or overload conditions, while the PowerPanel Personal Software offers a user-friendly dashboard for easy control and monitoring of the UPS.

Designed with energy efficiency in mind, the CST135UC-R features GreenPower UPS Bypass Design and is ENERGY STAR certified, reflecting its ability to save energy and reduce environmental impact. The widely spaced outlets accommodate transformer-sized plugs without obstruction, and the data line protection shields against power surges traveling through coaxial and Ethernet lines.

For those seeking a high-capacity, innovative, and reliable battery backup solution, the CyberPower CST135UC-R 1350VA/810W Simulated Sinewave UPS System stands out with its durable construction and advanced features, ensuring that your critical electronics are protected and operational when you need them most.

CyberPower CST135UC-R Features

  • Capacity: 1350VA 810W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC +/- 5%
  • Runtime (half/full): 10 minutes / 2 minutes
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlets: 10 (5 surge, 5 surge + battery backup)
  • Outlet types: 10 NEMA 5-15R
  • USB charge ports:(1) Type-A & (1) Type-C @ 4.0A (Shared)
  • Communication: USB
  • Data line protection: Network, Coaxial
  • Management software: PowerPanel Personal
  • ENERGY STAR certified: Yes

Key Features

  • High-capacity 1350VA/810W Simulated Sinewave UPS system for reliable power backup
  • Advanced Automatic Voltage Regulation (AVR) technology for stable power supply
  • Dual USB charge ports (Type-A and Type-C) for powering mobile devices
  • Multifunction LCD panel for real-time monitoring of battery backup and power conditions
  • ENERGY STAR certified with GreenPower UPS Bypass Design for energy efficiency
  • Surge protection and data line protection to safeguard sensitive electronics

What's in the box:

  • CyberPower CST135UC-R 1350VA/810W Simulated Sinewave LCD Battery Backup UPS System (Black)
  • USB A + B Type Cable
  • User Manual
  • CyberPower 90 Day Limited Warranty
