CZI DT-S3 Full-Color Night Vision Thermal Camera Payload for DJI M300/M350 RTK
See all CZI items

CZI DT-S3 Full-Color Night Vision Thermal Camera Payload for DJI M300/M350 RTK Drone

SKU: CYS3
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CZI C30N: Picture 1 regular

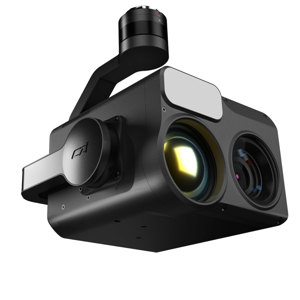

CZI C30N Smart Dual Light Night Vision Gimbal Camera
$25,999.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What drones is the DT-S3 Full-Color Night Vision Thermal Camera Payload compatible with?

The DT-S3 Full-Color Night Vision Thermal Camera Payload is compatible with DJI M300 and M350 RTK drones.

What is the resolution of the thermal camera in the DT-S3 payload?

The DT-S3 payload includes a high-resolution 640 x 512 thermal camera for clear and detailed thermal imaging.

What are the zoom capabilities of the DT-S3 payload?

The DT-S3 payload features a sophisticated zoom camera with 160X Hybrid Zoom and 30X Optical Zoom capabilities.

What is the range of the laser rangefinder in the DT-S3 payload?

The laser rangefinder in the DT-S3 payload has a range of up to 1200m.

What are some potential applications for the DT-S3 payload?

The DT-S3 payload is ideal for a variety of applications that require thermal imaging, including surveillance, search and rescue operations, and various night scenes.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CZI DT-S3 Specifications

General

General

Jump to...

  • Image Sensor

    1/1.8" Super Starlight CMOS

  • Minimum Illuminance

    Full-color: 0.005lux

  • Maximum Resolution

    4 Million Pixels, Full Color

  • Video Frame Rate

    5fps - 30fps Real-time Video

  • Video Compression

    H.264

  • White Balance

    Auto

  • Gain Control

    Auto

  • Remote Upgrade Function

    Support

  • Device Log Function

    Support

  • Wide Dynamic

    120dB

  • Signal-to-noise Ratio

    > 52dB

  • Ai Digital Noise Reduction

    Support

  • HDR

    Support

  • Exposure Mode

    Auto

Zoom Lens

Jump to...

  • Focal Length

    f=7.1-171mm, 30x Optical Zoom 160x Hybrid Zoom

  • Aperture

    F/1.6 - 5.1

  • View Angle

    Horizontal: 58.4 Degree Wide; 2.1 Degree tele
    Vertical: 34.1 Degree Wide; 1.2 Degree tele
    Diagonal: 65.5 Degree Wide; 2.4 Degree tele

  • Day-night Mode

    Electric IR-CUT Infrared Filter

Laser Ranging

Jump to...

  • Laser Ranging

    5-1200m

  • Wavelength

    905nm

  • Measurement Accuracy

    +/-1m@<400m; +/-0.4%@>400m

Infrared Thermal Imaging

Jump to...

  • Sensor

    Uncooled Vanadium Oxide (VOx)

  • Lens

    DFOV: 45.76 Degree Focal Length: 19mm Aperture: f/1.0

  • Number Doubling

    8x

  • Video Resolution

    640x512

  • Pixel Size

    12microm

  • Measuring Range

    -4 Degree F to 302 Degree F (-20 Degree C to +150 Degree C)
    32 Degree F to 1022 Degree F (0 Degree C to +550 Degree C)

PTZ

Jump to...

  • Angular Jitter

    +/-0.008 Degree

  • Control Rotation Range

    Pitch: -120 Degree to +30 Degree , yaw: +/-320

  • Port

    DGC2.0

  • Power Supply

    13.6V/2A

Interface

Jump to...

  • SD Card

    Support MicroSD (Max 512GB)

Power

Jump to...

  • Power Consumption

    8W

Physical

Jump to...

  • IP Code

    IP55

  • Operating temperature and humidity

    -4 Degree F to 140 Degree F (-20 Degree C to +60 Degree C), humidity less than 95% (no condensation)

  • Dimensions (L x W x H)

    7 x 4.9 x 7.48" (179 x 126.5 x 190mm)

  • Weight

    2.24 lbs (1020g) ( +/-5g)

About CZI DT-S3

Ful-color night vision drone payload DT-S3 equipped with self-developed extremely low-light full color AI imaging engine ,It can achieve full color high-definition night vision imaging beyond starlight level. Integrated 640 x 512 thermal camera, zoom camera and laser rangefinder. Paired with DJI M300/M350RTK enterprise drones, it achieves innovative applications in various night scenes of drones, improving night work efficiency and operating experience.

• 160X Hybrid Zoom / 30X Optical Zoom
• Thermal Imaging 640 X 512
• Laser Ranging 1200m

CZI DT-S3 Features

  • Starlight Imaging Up To 0.005lux
  • Thermal Imaging 640x512
  • 160X Hybrid Zoom / 30X Optical Zoom
  • Laser Ranging 5-1200m, Get The Target Location Quickly
  • Dynamic glare suppression, No reflection and no overexpose
  • Reduce 90% Smear Of Moving Objects At Night
  • Low Power Consumption, Super Long Endurance
  • No Filling Light Needed, Easy To Detect, Covert Operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Starlight Imaging Up To 0.005lux
  • Thermal Imaging 640x512
  • 160X Hybrid Zoom / 30X Optical Zoom
  • Laser Ranging 5-1200m, Get The Target Location Quickly
  • Dynamic glare suppression, No reflection and no overexpose
  • Reduce 90% Smear Of Moving Objects At Night

What's in the box:

  • CZI DT-S3 Full-Color Night Vision Thermal Camera Payload
  • CZI 1 Year Limited Warranty
