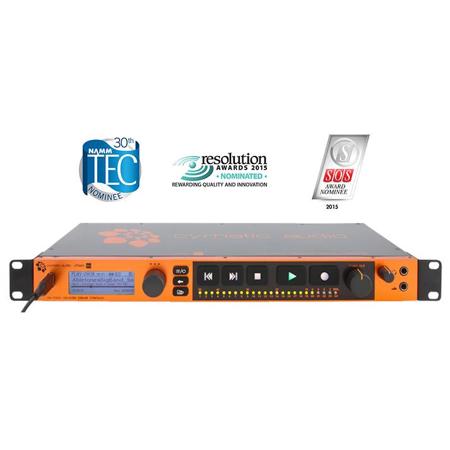

Cymatic Audio uTrack24 24-Channel Multi Track Recorder, Digital Audio File Player, 24-Output Computer Audio Interface

Cymatic Audio uTrack24 is a universal hardware recorder/player/interface in 19" format - the go-to solution for people who want to do high-quality recordings without the need of a computer. The uTrack24 records directly onto USB media plugged into the front panel, while a three-color LED displays the level of all channels. The LEDs can also be used as a 24-segment level meter for individual channels. A big LCD shows all other important information and allows a fast and intuitive editing of parameters with an endless push encoder. In order to make recordings hassle-free even in dark or hectic environments, the Cymatic Audio hardware recorder features big illuminated transport controls directly on the front panel.

24-track recording and playback is now available at a truly affordable price and a space-saving form factor. Record a 24-channel multitrack of your band from the front of house console and say goodbye forever to inferior 2-channel "board mixes". Play back multiple pre-recorded audio to augment your live performers, switching material instantly on the fly. Connect to your computer and record large ensembles with the industry's most affordable 24-channel USB audio interface. All possible with your one uTrack24

Small format, large amount of ins and outs
With its reduced size of only 1U, the uTrack24 accepts up to 24 input and output signals via D-Sub multi-pin connectors. This allows even large live events to be recorded smoothly. Thanks to the BNC WordClock input and output, the recorder can integrate seamlessly into other digital recording environments. The uTrack24 can record 24 channels with a sampling rate of 48 kHz and up to 24 bits. And it can record up to 8 channels with a sampling rate of 96 kHz at 24 bits.

The possibility to loop record endlessly is unique: Unlike with other recorders, there is no limit to the maximum recording time, the only limitation is the capacity of the recording medium. Recordings can be comfortably managed and converted into other formats with a free uTool software for Mac and PC. Upcoming hardware module add-ons will allow the use of other 24x24 digital input/output formats. Thanks to the internal DSP mixer, a stereo mix of the 24 tracks can be taken directly from the headphone and control room output on the front panel. It further features Level, Pan, Mute and Solo controls for all 24 inputs, making an external mixer redundant.

Flexible and reliable
Besides its use as a recorder, the uTrack24 can also play back up to 24 tracks, making it the perfect virtual sound provider for live applications. The Playlist mode is very useful in such cases, supporting uninterrupted playback. When used under OS X, Windows and iOS, the uTrack24 turns into a powerful and comprehensive audio interface with 24 inputs and outputs, as well as dedicated Control Room and headphone outputs, each with its individual level control.

24-Channel Multitrack Recorder
• Records directly to standard USB 2.0 and USB 3.0 drives, attached to convenient front-panel USB port
• 3-color input level metering per input channel, also works as 24-segment full scale meter
• Internal DSP mixer offers stereo monitor mix of all 24 inputs through front-panel headphone output and the two channel balanced output (main out) on the rear panel, with dedicated level controls.
• Pre-recording feature sets the uTrack24 to constantly buffer a minimum of 3 seconds of the incoming audio signal
• Adjust level, panning, mute and solo for all 24-inputs while enjoying detailed 24-segment hardware input/output metering, all with no external mixer required!

24-Channel Multi-Track Player
• Play back 24 tracks of audio, perfect for virtual sound checks or expanding live performances with individual pre-recorded tracks
• Gapless playback of multitrack songs in playlist when the song parameters (channel count, sample rate and bit depth) are same between the songs. Gapless playback also happens in continuous and repeat all playback mode
• Pre-load feature loads a song into the buffers so that it can be started instantaneously on a button press.
• Pre-load feature is active in playlists and when pre-recording is switched off. uTrack24 also preloads the next song while the current song is in playback
• Playback Standard MIDI files synchronized with audio file playback
• Edit song order on the fly, during playback, directly from the front panel or with uRemote
• Playback start and stop via optional footswitch
• On the fly loop playback with mark-in/mark-out points allows for easy looping
• uTool software allows you to easily create custom audio playlists, with features like set pause times between songs or assign songs to be played back continuously
